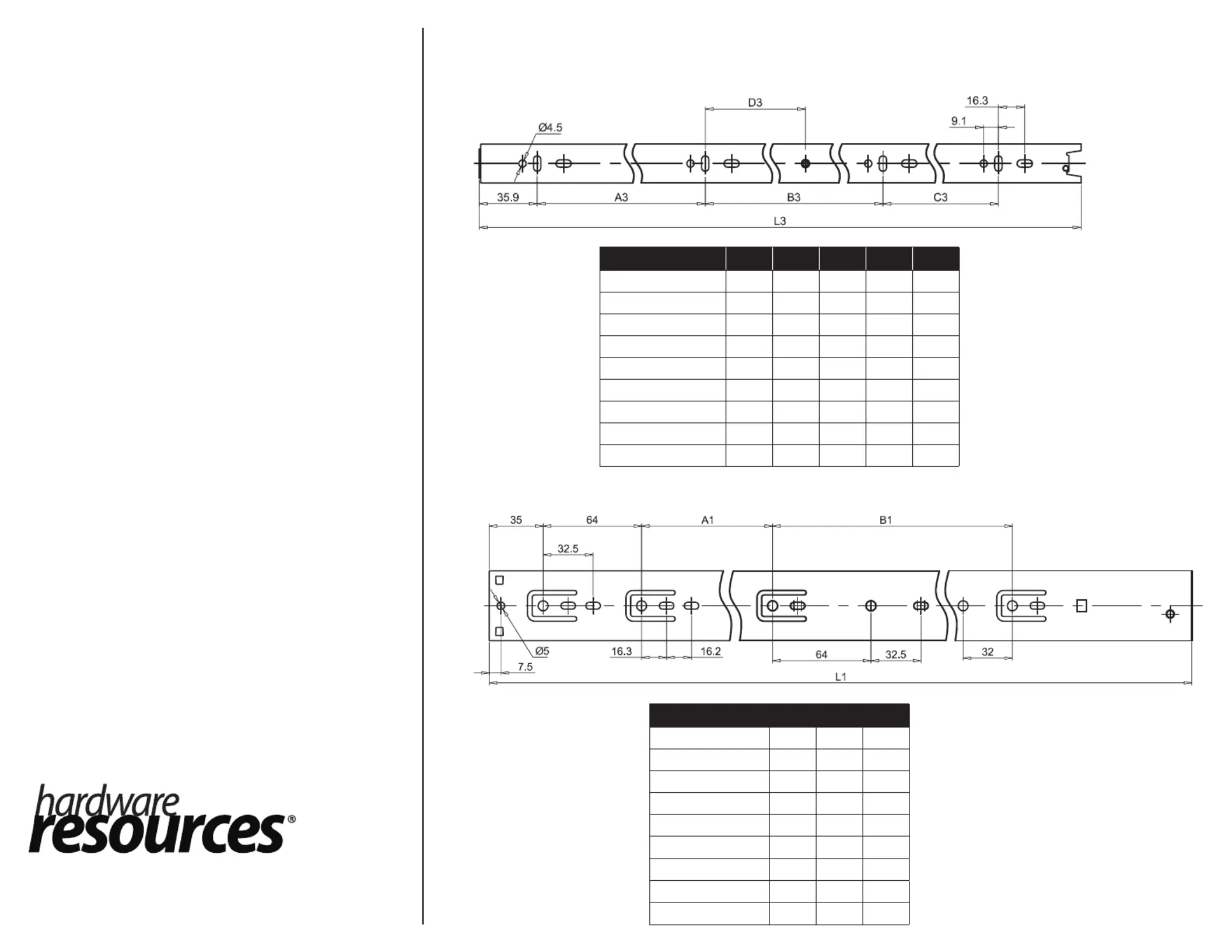

Hole Pattern and Length Specications
DRAWER MEMBER
CABINET MEMBER
SpecificationsL3A3B3C3D3
303FUSFT12 -12”29896128-88
303FUSFT14 - 14”348128128-75
303FUSFT16 - 16”398128192-106
303FUSFT18 - 18”448160192-94
303FUSFT20 - 20”498192224-87
303FUSFT22 - 22”548224224-85
303FUSFT24 - 24”598192320-142
303FUSFT26 - 26”648192224160167
303FUSFT28 - 28”698192256160227
SpecificationsL1A1B1
303FUSFT12 -12”30094-
303FUSFT14 - 14”350128-
303FUSFT16 - 16”400160-
303FUSFT18 - 18”450224-
303FUSFT20 - 20”500256-
303FUSFT22 - 22”550288-
303FUSFT24 - 24”600352-
303FUSFT26 - 26”650206224
303FUSFT28 - 28”700256224
1. Cabinet Member Instructions:
Press release clip to disconnect drawer
member from cabinet member.
Align cabinet member (using level if
necessary) and place edge ush with
the edge of the cabinet. Attach to
cabinet using 3 #8 x 7/16” screws. 5
screws can be used for supporting
heavy loads.
2. Drawer Member Installation:
Place front edge of each member
against the rear face of the drawer
front. Screw member with 3 #8 x 7/16”
screws.
3. Drawer Installation:
Align drawer members with cabinet
members and slide into cabinet. When
fully closed, the drawer slide release
clip will lock into place.
• Note:
Face Frame Bracket is optional and
can be used if drawer guide is not
supported in the bottom of the corner
of the cabinet opening.
Installation Instructions
303FUSFT Series
Heavy Duty Slides
Bossier City, LA
www.HardwareResources.com
800.463.0660
