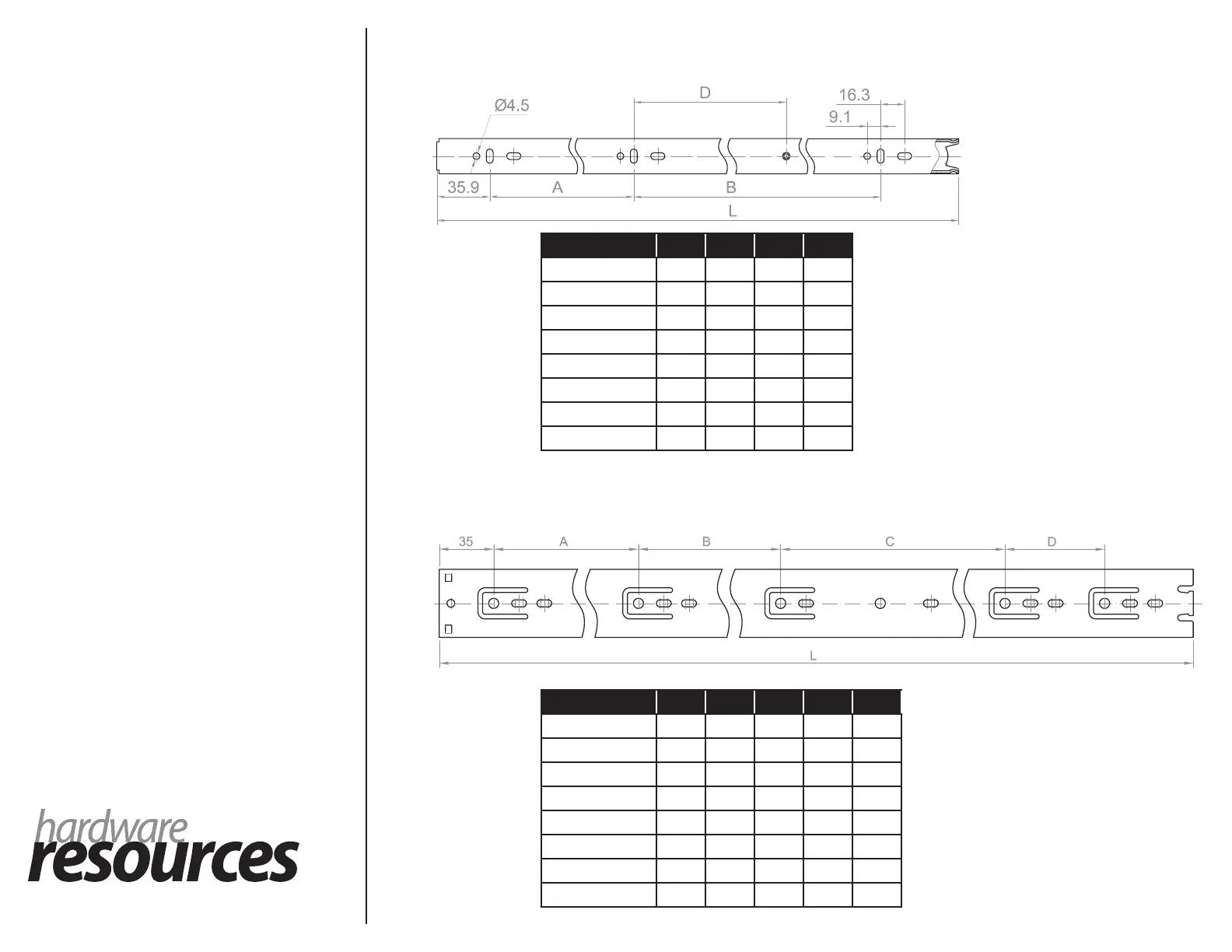

Hole Pattern and Length Specifications
SpecificationsLABD
24”597192320140
22”54722422481
20”49719222495
18”447160192101
16”397128192110.5
14”34712812885
12”2979612890
10”247169--
DRAWER MEMBER
CABINET MEMBER
303FU Series
Heavy Duty Slides
Installation Instructions
1. Cabinet Member Installation:
Press release clip to disconnect
drawer member from cabinet
member. Align cabinet member
(using level if necessary) and place
edge ush with the edge of the
cabinet. Attach to cabinet using 3
#8 x 7/16” screws. 5 screws can be
used for supporting heavy loads.
2. Drawer Member Installation:
Place front edge of each member
against the rear face of the drawer
front. Screw drawer member with 3
#8 x 7/16” screws.
3. Drawer Installation:
Align drawer members with cabinet
members and slide into cabinet.
When fully closed, the drawer slide
release clip will lock into place.
• Note:
Face Frame Bracket is optional and
can be used if drawer guide is not
supported in the bottom corner of
a cabinet opening.
Bossier City, LA
www.HardwareResources.com
SpecificationsLABCD
24”6001289619264
22”5501289612864
20”5001289612864
18”45012896–128
16”40012896–64
14”350128––96
12”300128––96
10”25064––76
