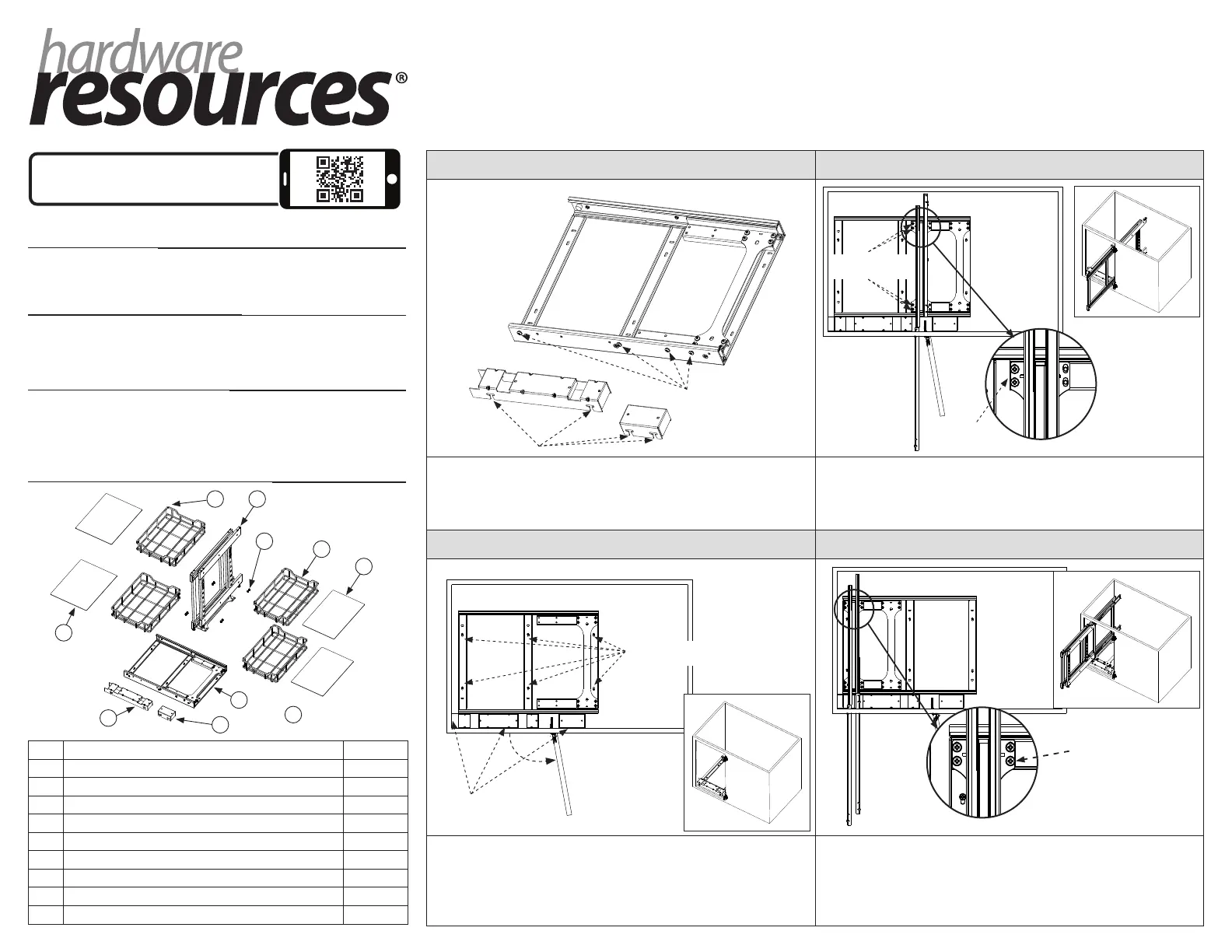

IMPORTANT:

Before you begin, make sure you familiarize yourself with all the

parts and fully read the instructions.

CUSTOMER SERVICE:

Toll free customer help line available weekdays between 7:00am

and 6:00pm Central Time at 800-463-0660.

TOOLS NECESSARY:

Screw gun or Phillips screwdriver, level and tape measure. NOTE:

If screw gun has a clutch, set to lowest setting so as not to over

tighten and/or strip screws.

PARTS IDENTIFICATION:

ABase Assembly1 pc

BBasket Assembly1 pc

CPrimary Basket2 pcs

DSecondary Basket2 pcs

EPrimary Liner2 pcs

FSecondary Liner2 pcs

GRoller Guide Bracket1 pc

HInstallation Hinge Spacer1 pc

JM6 x 8 mm Pan Head Machine Screw8 pcs

K#8 Pan Head Wood Screw8 pcs

STEP 1 - Install Guide and SpacerSTEP 3 - Secure Basket Assembly-Left

Loosen the preinstalled screws on the Base Assembly. Align

the slots on the Roller Guide Bracket and Hinge Spacer with the

screws and slide into place. Tighten screws.

Align the Basket Assembly on to the base assembly as shown.

Remove all tie wraps that secure the assembly. Extend the left

side of the basket assembly to the outside of the cabinet. Firmly

secure using (4) M6 pan head machine screws.

STEP 2 - Install Base AssemblySTEP 4 - Secure Basket Assembly-Right

Position the Roller Guide Bracket and Installation Hinge Spacer

against the back of the face frame or 3/4” behind opening on

frameless application. Install completed Base Assembly to the

cabinet oor with (6) #8 Pan Head Wood screw. Remove all tie

wraps securing the assembly.

With the left side of the basket assembly is still extended, slide

the complete assembly to the left side of the cabinet. Extend

the right side of the basket assembly to the outside of the

cabinet. Install the remaining (4) M6 pan head machine screws

as shown.

Isometric View

(Ships left-handed)

A

H

G

E

C

J

B

D

F

Scan to watch the installation video

https://delivr.com/23y5t

Storage with Style

Blind Corner Organizer

Left-handed

Installation Instructions for

the SWS-BC Series

(4) M6 pan head

machine screws

(4) M6 pan head

machine screws

(4) M6 pan head

machine screws

preinstalled screws

slots

Isometric View

Isometric View

Flush with face frame

(6) #8 Pan Head

Wood Screw

K
