Hardened Web-Smart High Power PoE Ethernet Switch

This quick start guide describes how to install and use the Hardened Web-Smart High Power PoE (Power

over Ethernet) Ethernet Switch. This is the switch of choice for harsh environments constrained by space.

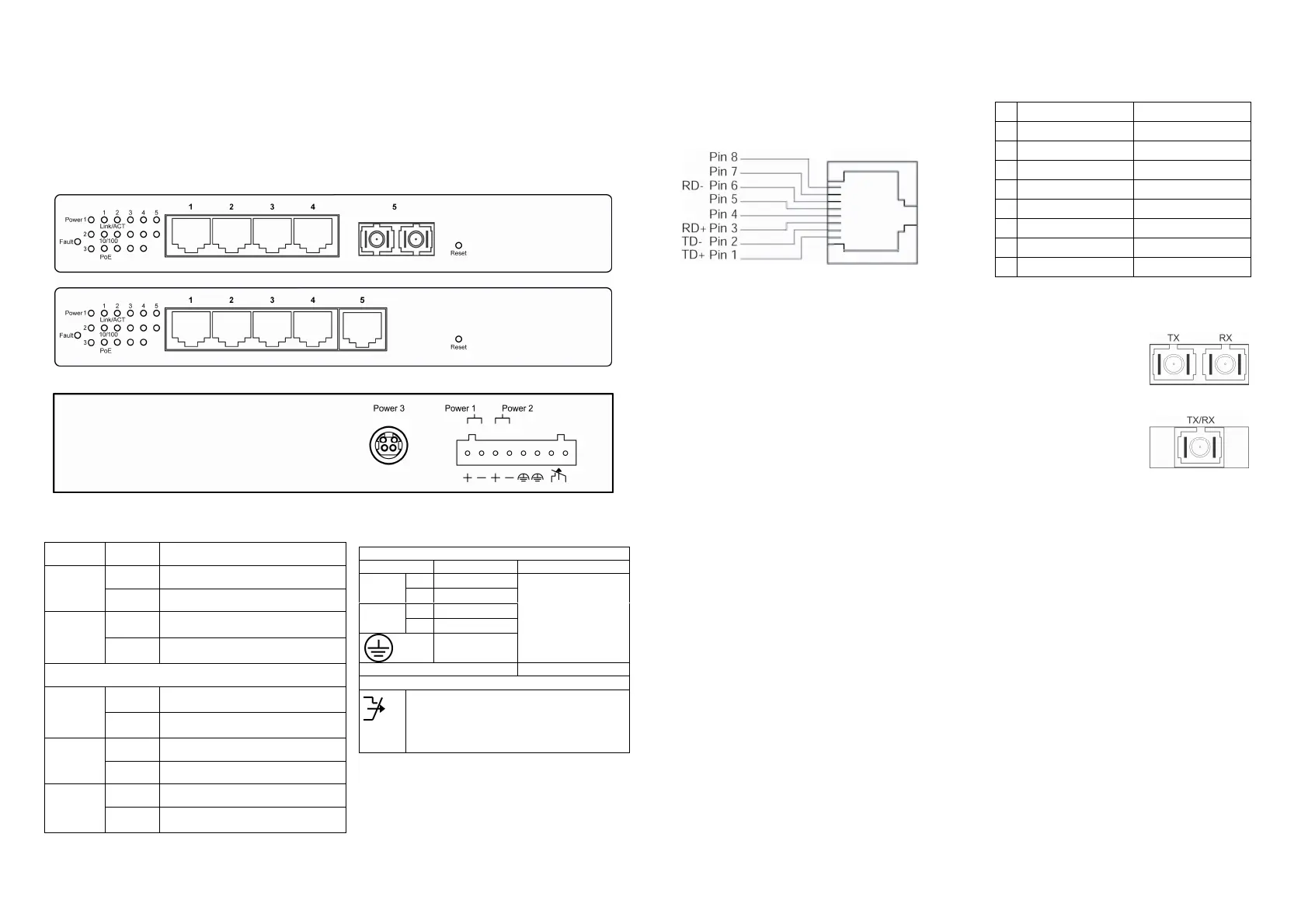

Physical Description

The Port Status LEDs and Power Inputs

LED State Indication

Steady Power on.

Power1

Power2

Power3

Off Power off.

Steady

Power redundant system failure

occurred.

Fault

Off

Power redundant system failure is

not occurred.

10/100Base-TX, 100Base-FX/BX

Steady

A valid network connection

established.

Link/ACT

Flashing

Transmitting or receiving data.

ACT stands for ACTIVITY.

Steady Valid port connection at 100Mbps.

10/100

Off Valid port connection at 10Mbps.

Steady Powered Device (PD) is connected.

PoE

Off

Powered Device (PD) is

disconnected.

Power Input Assignment

Power3 55VDC DC Jack

＋

55VDC

Power2

－

Power Ground

＋

55VDC

Power1

－

Power Ground

Earth Ground

Terminal Block

Relay Output Rating 1A @ 24VDC

Relay Alarm Assignment

FAULT

*Relay warning signal disable for following:

1. The relay contact closes if Power1 and

Power2 are both failed but Power3 on.

2. The relay contact closes if Power3 is failed

but Power1 and Power2 are both on.

The 10/100Base-TX and 100Base-FX/BX Connectors

The 10/100Base-TX Connections

The following lists the pinouts of 10/100Base-TX ports.

PinPoE Ports (Port 1-4)Non-PoE Port (Port 5)

1 Output Transmit Data +Output Transmit Data +

2 Output Transmit Data -Output Transmit Data -

3 Input Receive Data + Input Receive Data +

4 Positive (VCC+)

5 Positive (VCC+)

6 Input Receive Data - Input Receive Data -

7 Negative (VCC-)

8 Negative (VCC-)

The 100Base-FX Connections

The fiber port pinouts

The Tx (transmit) port of device I is connected to the Rx (receive) port of device II,

and the Rx (receive) port of device I to the Tx (transmit) port of device II.

The WDM 100Base-BX Connections

The fiber port pinouts

Only one optical fiber is required to transmit and receive data.

Functional Description

•Meets NEMA TS1/TS2 Environmental requirements such as temperature, shock, and vibration for

traffic control equipment.

•Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.

•Manageable via Web browser interface.

•Port 1 – 4 support Power over Ethernet (PoE) Power Sourcing Equipment (PSE).

•High Power PoE design up to 30W.

•Supports 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, full/half-duplex. Auto MDI/MDIX.

•100Base-FX: Multi mode/Single mode SC or ST type. 100Base-BX: WDM Multi mode/Single mode

SC type.

•Supports 1024 MAC addresses. Provides 512K bits memory buffer.

•Alarms for power and port link failure by relay output.

•Power Supply: Redundant 55VDC Terminal Block power inputs and 55VDC DC JACK with optional

100-240VAC external power supply.

•Operating voltage and Max. current consumption: 2.36A @ 55VDC. Power consumption: 130W

Max.

•-40 to 75 (℃℃-40℉ to 167℉) operating temperature range. Tested for functional operation @

-40 to ℃85 (℃-40℉ to 185℉).

•Supports Wall and Desktop Mounting installation.

1 V3
