EX25611 M

anaged Gigabit

Ethernet Switch www.etherwan.com

Functional Description This quick start guide describes how to install and use the Managed Gigabit Ethernet Switch.

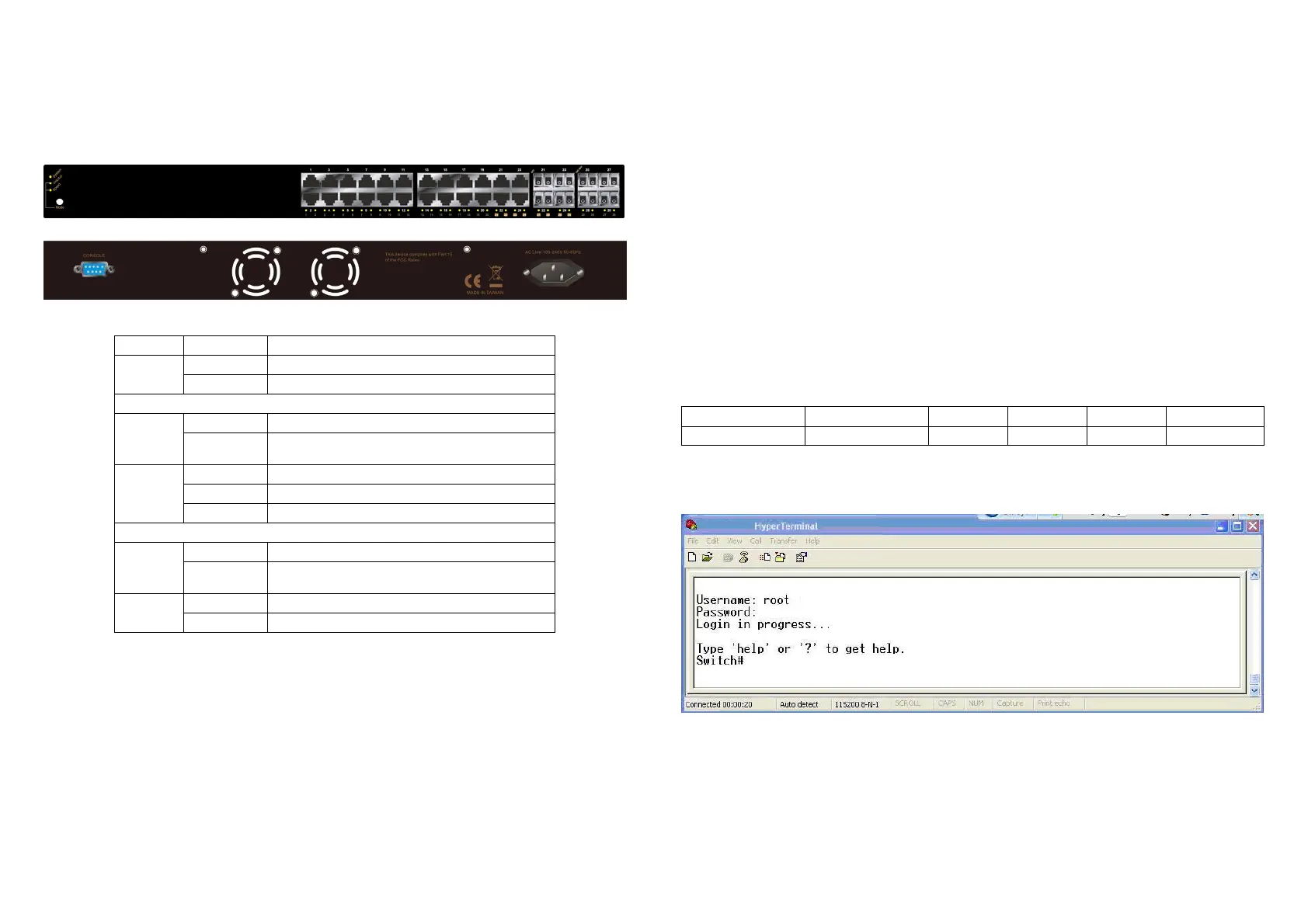

Physical Description

The Port Status LEDs and Power Inputs

LED State Indication

Green Light Green when CPU is coming up.

System

Off CUP is not coming up.

10/100/1000Base-TX

Green Light Green when port link good.

Link/ACT

Blink

Blinks when any traffic is present.

ACT stands for ACTIVITY.

Green Light Green when port link on 1000Mbps.

Amber Light Amber when port link on 100Mbps.

SPEED

Amber Light Amber when port link on 10Mbps.

SFP

Green Light Green when SFP link good.

Link/ACT

Blink

Blinks when any traffic is present.

ACT stands for ACTIVITY.

Blue Light Blue when SFP link on 10Gbps.

SPEED

Green Light Green when SFP link on 1000Mbps.

L2+ features provide better manageability, security, QoS, and performance.

High port count design with all Gigabit Ethernet ports.

Supports guest VLAN, voice VLAN, Port based, tag-based and Protocol based VLANs.

Supports 8K MAC table.

Supports IPv6/ IPv4 Dual stack.

 Supports s-Flow.

Supports Easy-Configuration-Port for easy implement the IP Phone, IP Camera or Wireless

environment.

Console Configuration

Connect to the Switch console:

Connect the DB9 straight cable to the RS-232 serial port of the device and the RS-232 serial port of

the terminal or computer running the terminal emulation application. Direct access to the

administration console is achieved by directly connecting a terminal or a PC equipped with a

terminal-emulation program (such as HyperTerminal) to the Switch console port.

Configuration settings of the terminal-emulation program:

Default Baud rate Character Size Parity Stop bit Data bits Flow control

115,200bps 8 Characters None 1 8 None

The default username is “root”and password is empty. Please enter the default username and

password, and then press the <Enter> button.

Press the Mode button for LED switching. Also press the Mode button until the power LED flashes again to

reset the Switch to factory default.



You can type “?” or “help” to get the Switch help includes syntax or all function explaining. The screen

shot as below figure displayed.

1 70G-EX25611Q2
