Gigabit SFP Hardened Media Converter

Quick Start Guide

This quick start guide describes how to install and use the Gigabit SFP

hardened media converter. This is the media converter of choice for harsh

environments constrained by space.

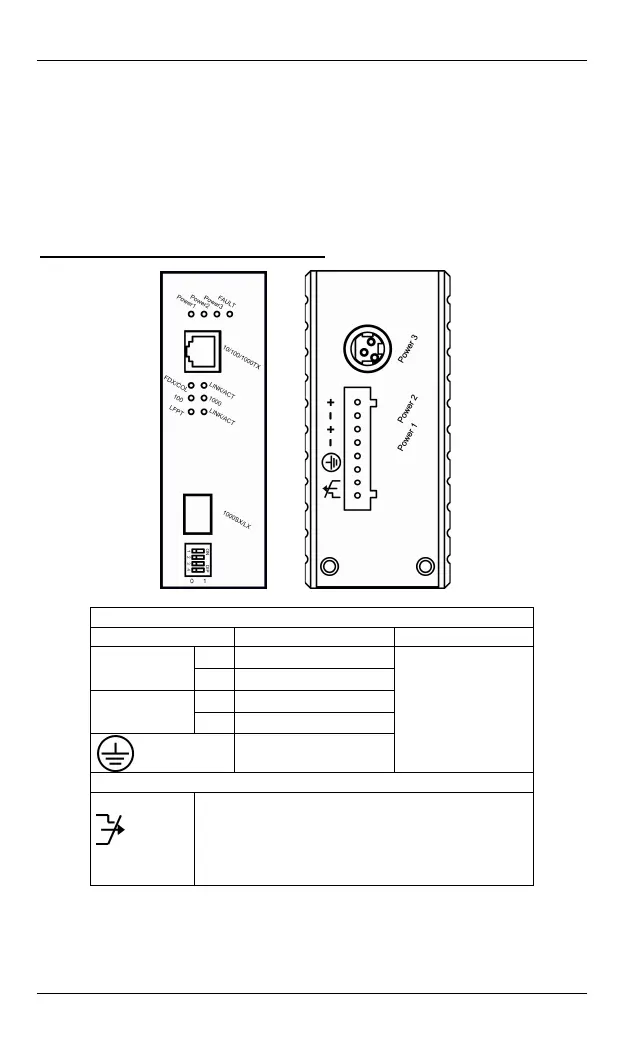

Physical Description

The Terminal Block and Power inputs

Power Input Assignment

Power3 12VDC DC Jack

＋

12-48VDC

Power2

－

Power Ground

＋

12-48VDC

Power1

－

Power Ground

Earth Ground

Terminal Block

Relay Alarm Assignment

FAULT

*Relay warning signal disable for following:

The relay contact closes if Power1 and

Power2 are both failed but Power3 on.

The relay contact closes if Power3 is failed

but Power1 and Power2 are both on.

DC Terminal Block Power Inputs: There are two pairs of power inputs can

be used to power up this media converter.

DC JACK Power input: 12VDC.

1
