© MuxLab Inc. 94-000837-B SE-000837-B

8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: videoease@muxlab.comURL: www.muxlab.com

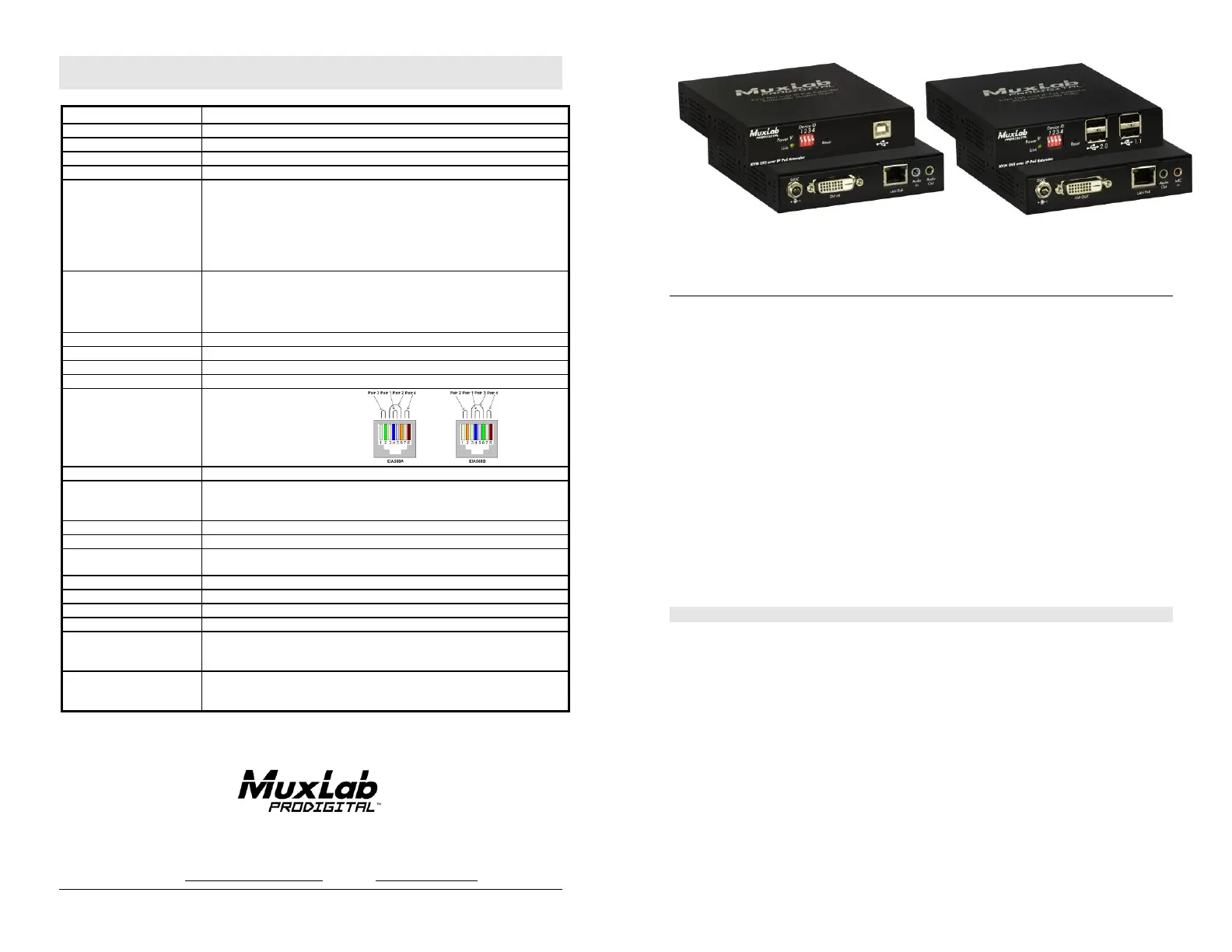

Specifications

Environment

DVI 1.0

Devices

Computers and servers with DVI monitor ports.

Transmission

Transparent to the user

Bandwidth

300MHz

Signals

DVI1.0 protocol, HDCP 1.4

Connectors

Note: Cables not included.

One (1) DVI receptacle.

One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.

Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX).

Two (2) 3.5mm jacks for mic-out (on TX)/mic-in (on RX).

One (1) 2.1mm locking barrel jack for power

One (1) or Four (4) USB Connector(s) for Host (on TX)/Client (on RX)

Four (4) DIP Switches for device ID addressing.

Maximum Distance

Based on a maximum length

of 6.6ft (2m) of DVI cable

per end.

Cat5e/6: 330ft (100m) up to 1080p@ 60Hz and 1920x1200 @ 60Hz

Note: When installed in an electrically noisy environment, an STP cable must be

used. Also, cross-connection reduces the effective distance depending on the grade

of twisted cable used.

Latency

One (1) Frame (16ms) @ 60Hz (typical)

Compression

JPEG 2000

Network Bit Rate

300Mbps (typical)

Network Requirement

1000BaseT with PoE

RJ45 Pin Configuration

Reverse Polarity Sensitive.

Use EIA/TIA 568A or 586B

straight-through wiring.

RJ45 Link

Pin 1 (R) Pin 2 (T)

Pin 3 (R) Pin 6 (T)

Pin 4 (R) Pin 5 (T)

Pin 7 (R) Pin 8 (T)

Cable

One (1) Cat 5e/6 or better twisted pair cables required

Power Source

This device supports PoE (PD), an external power supply is not included. It is

intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional

power supply (500993) may be purchased separately.

PoE Standard

IEEE 802.3af

Power Consumption

Transmitter: 2.85Watt Receiver: 2.55Watt

Temperature

Operating: 0° to 40°C Storage: -20° to 85°C

Humidity: Up to 95% non-condensing

Dimensions

4.40” x 5.08” x 1.00” (112mmx 129mm x 25mm)

Weight

1.5lbs (0.68kg)

Compliance

Regulatory: FCC, CE, RoHS Flammability: 94V0

Warranty

3 years

Order Information

500771 KVM DVI over IP PoE Extender Kit

500771-TX KVM DVI over IP PoE Extender TX

500771-RX KVM DVI over IP PoE Extender RX

Accessories

(These items are sold

separately)

500920 16-Port Rackmount Transceiver Chassis

500917 Wall Mount Transceiver Bracket Kit

500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade

KVM DVI over IP PoE Extender Kit

500771

Quick Installation Guide

Overview

The KVM DVI over IP PoE Extender Kit allows DVI & USB equipment to be connected up to

330ft (100m) up to 1080p resolution @ 60Hz and 1920x1200 @ 60Hz via one (1) Cat5e/6

unshielded twisted pair cable in a point-to-point configuration. The Transmitter (500771-TX) and

Receiver (500771-RX) also support PoE (PD) if used with a PoE (PSE) Ethernet Switch. The kit

comes with one (1) Transmitter and one (1) Receiver. Additional Transmitters and Receivers may

be purchased as kits or purchased separately depending on the number of units required.

For multiple point-to-point (including point-to-multipoint) configurations the Ethernet Switch must

have Gigabit ports, Jumbo Frame capability and DHCP Server capability.MuxLab recommends

using the Cisco SG300 Series Managed Switches.

The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and

utilization of the 500771 and other MuxLab IP based products via an Ethernet web interface.

Applications

Applications include management of multi-server systems supporting DVI displays in IT

departments within corporations, educational institutions, CAD Design, Graphic Design, Media

Servers, and Data Centers.

Installation

1.Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see the

above front and rear product views for further details.

2.Verify that the distance between the DVI Transmitter and Receiver is within MuxLab

specifications (see Specifications table for more details).

3.To install the Transmitter:

3a.Connect the Transmitter DVI port to the Computer DVI port, with a DVI compliant

cable.

3b.Connect the Transmitter USB Port to the Computer USB port, using a compliant Type

A to Type B USB Cable.

3c.If required, connect the computer audio-out and mic-in port to the Transmitter audio-in

and mic-out port, respectively.

3d.If the application is point-to-point, then connect one (1) length of Cat 5e/6 (or higher)

grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over

the network, use an Ethernet Switch between Transmitter and Receiver.
