ATOLL ELECTRONIQUE

OWNER’S MANUAL ~ INTEGRATEDIN400 EVO

ATOLL ELECTRONIQUEPage 5

CONNECTINGSREMOTE CONTROL

Warning: reduce the volume of the source connected to BY-PASS before

any use of the BY-PASS Input.

14) ON / SLEEPbutton (preheating) by

pressing; source selection (rotation).

15) Headphones jack: speakers outputs

are switched off when headphones are

plugged in.

16) STANDBY LED.

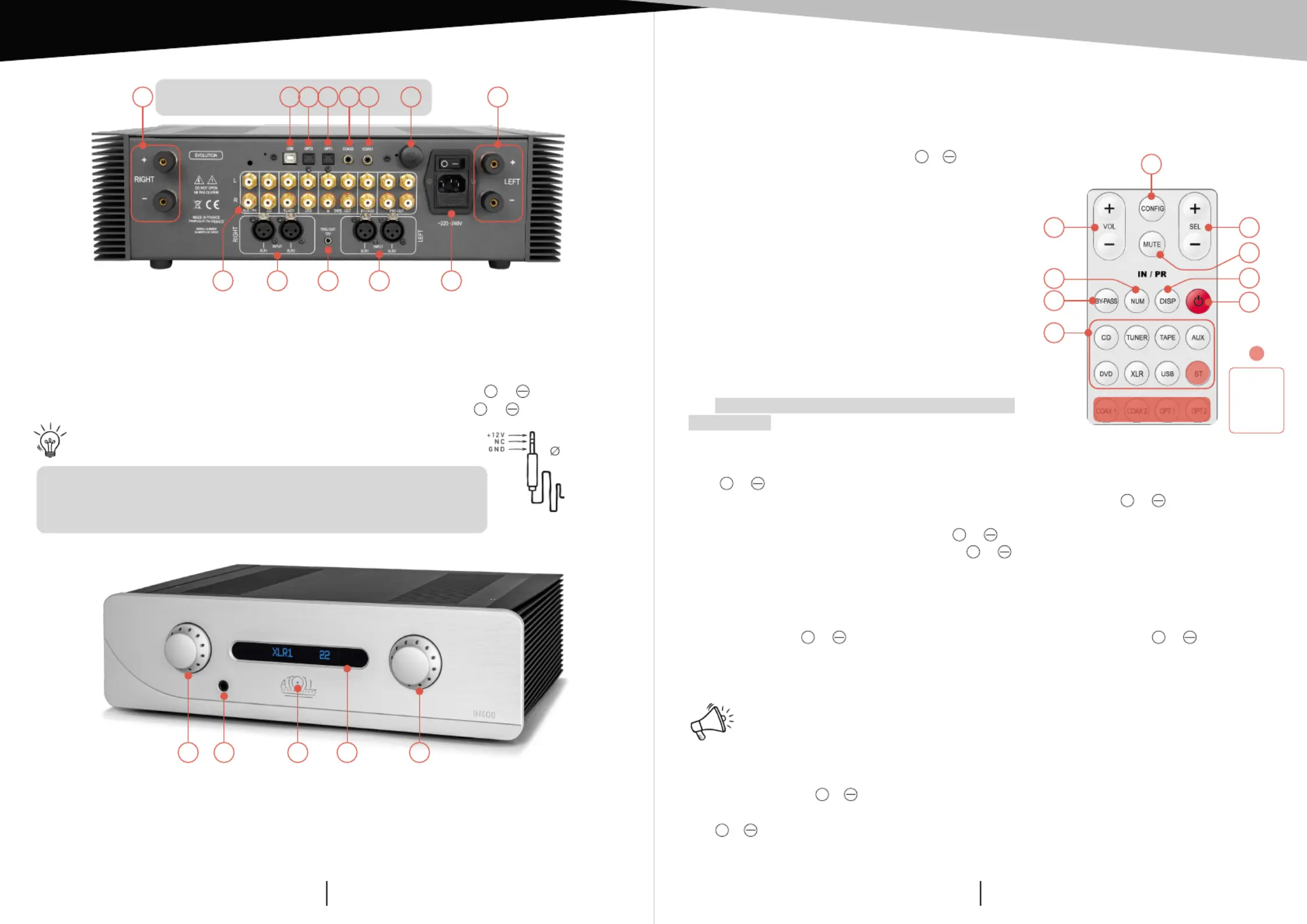

DETAIL OF FUNCTIONS

1415161718

8) USB input (type B).

9 10)& Optical inputs 1 & 2.

1112)& Coaxial inputs 1 & 2.

13) Bluetooth sensor.

Digital input card (optional):

Trigger cable must be a Male to Male stereo jack plug

Ø 3,5 mm (1/8”).

Jack

3,5 mm

1) Auxiliary input (optional phono), CD

input, Tuner, DVD, Tape (PLAY), Tape

output (REC), BY-PASS input, Preamp.

outputs (to 1 or 2 power amplifiers or to

a Subwoofer).

2) 2×XLR input – right channel.

3) 12V Trigger output: this output allows the

switching off/on of any device equipped with

a compatible Trigger input (see instructions).

4) 2×XLR input – left channel

5) ON/OFF switch and general plug-in

(with protection fuse).

6) Right speaker output (

+

& ).

7) Left speaker output (

+

& ).

17) Display: shows the selected source (on the

left) and volume level (on the right).

18) Power ON knob, volume and menus setup.

Access to Balance (1 press) and Light

(2 press). See “Remote control” chapter.

Optional

digital board

6

2

45

3

78910111213

1

Page 4

The remote control is supplied with 2 CR2032 Lithium batteries. In addition to your IN400

Integrated, it also allows you to control all ATOLL products: CD players, Tuner, Integrated

or preamps with the remote control option. (See the user manual for these models).

19)VOL: Volume adjustment button

+

/

(from 0 to 80).

20)SEL: Input selection button

21) MUTE: When the device is in Mute, no function is

available except STANDBY. To exit, press any active key

on the remote control.

22)DISP: Display power off and on button (pressing any

button turns the display back on for 3 seconds).

23) ON / SLEEP.

24) Direct access to sources.

25) BY-PASS (*).

26) NUM: Selection of COAX 1 & 2 and OPT 1 & 2

digital inputs.

27) CONFIG: Access to menus:

– Balance (1 press): once in the balance menu, adjustment is made using the

VOL

+

& keys. The volume is distributed from -9 to +9 on each channel.

– Light (2 presses): in this menu, you can choose with the keys VOL

+

& the color of the

backlighting of the buttons on the front panel between Red, Green, Orange or off.

– Display (3 presses): with the keys VOL

+

& select OFF to turn off the display.

– SBY ECO (4 presses): with the keys VOL

+

& select the time after which the device will

switch to economy mode when in STANDBY.

- OFF: the device remains in preheating mode: consumption will be 32 W.

- 10 sec, 5 min, 15 min, 30 min, 60 min: Consumption < 0,5 W after the set time.

– A long press on CONFIG allows you to rename the selected entry. Choose the characters

with the keys VOL

+

& and move to the next character with the SEL keys

+

& and validate

by pressing CONFIG again.

The BY-PASS input allows you to use your IN400 as a power block (to be connected to

the output of an audio-video preamp for example). This input is selected via the front

panel (25), the SEL

+

/ buttons on the remote control or the BY-PASS button. Once

this input is selected, the word “BY-PASS” is displayed on the screen and only the

SEL

+

/ and standby functions remain accessible. To exit the BY-PASS, press the BY-

PASS button on the remote control or change source.

(*) USING OF THE BY-PASS INPUT

Touches

non

fonction-

nelles

27

20

23

19

25

24

21

22

26
