OWNER’S MANUAL ~ AMPLIFIER

AM300 EVO

ATOLL ELECTRONIQUEPage 5Page 4

You can transform your power amplifier into a mono bridge amplifier. Activate the input

(5) at the rear of the appliance on MONO. PRE-OUT outputs of the preamp must be

connected to the Right inputs of each Amplifier.

For each Amplifier, terminal

+

(red) of the Right output (1) has to be connected to the

terminal

+

(red) of the speaker and terminal

+

(red) of the Left output (2) to the terminal

(black) of the speaker.

The wiring of the speakers will be the same while using RCA or XLR cables.

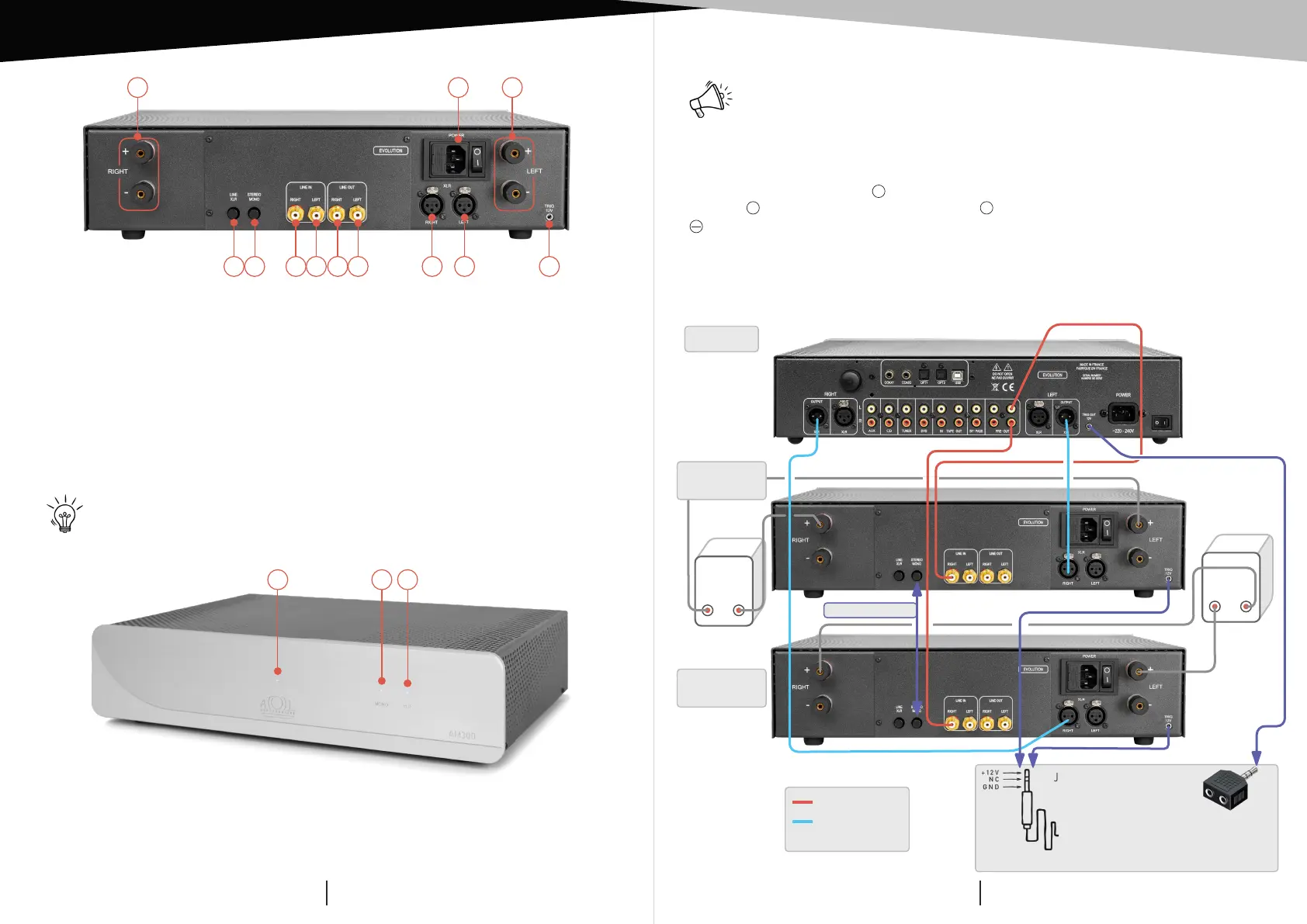

BRIDGE MONO MODE

Warning: be sure that your amplier is unplugged and that no other appliance is

plug-in during this operation.

(Configuration: 1 Preamp and 2 Power Amplifiers mono bridged).

CONNECTIONS

13) Led indicator of ON/SLEEP switch.

14) Led indicator of mono bridge: the led is ON when the Power Amp. has been

activated on MONO before general switch on.

15) Led indicator of XLR Input mode: the LED switches on if the button (8) on the rear

of the AM is on XLR position.

CONNECTINGS + TRIGGER

DETAILS OF FUNCTIONS

13

1415

(1)

This input allows the control ON/SLEEP of your amplifier simultaneously to any device with a 12V Trigger

outlet. For the system to operate, the ON/SLEEP button on your AM300 must remain in the SLEEP position (0).

If the switch is in the ON position (I), the amplifier will work but not the Trigger function.

Trigger cable must be a Male to Male stereo jack plug Ø 3,5 mm (1/8”).

1) Right speaker outputs.

2) Left speaker outputs.

3) General power plug and ON/OFF

button (with protective fuse).

4) Input type selector:

– Line: button up.

– XLR: button down.

5) Switch for MONO bridge.

6) Right line input.

7) Left line input.

8) Right line output.

9) Left line output.

10) Right XLR input.

11) Left XLR input.

12) Trigger input

(1)

.

1254

7911

6810

213

Stereo Y connector

(not supplied) to

connect to the Trigger

output of the PR400.

Trigger link (non compulsory).

Jack cables Ø 3,5 mm

(not included).

Connect to the AM400

and to a Y connector

output.

+–

Left

Speaker

Right

Speaker

+–

AM300 EVO

right channel

Switch to MONO

RCA links

or

XLR links

(recommended)

PR300 EVO

AM300 EVO

left channel
