ATOLL ELECTRONIQUE

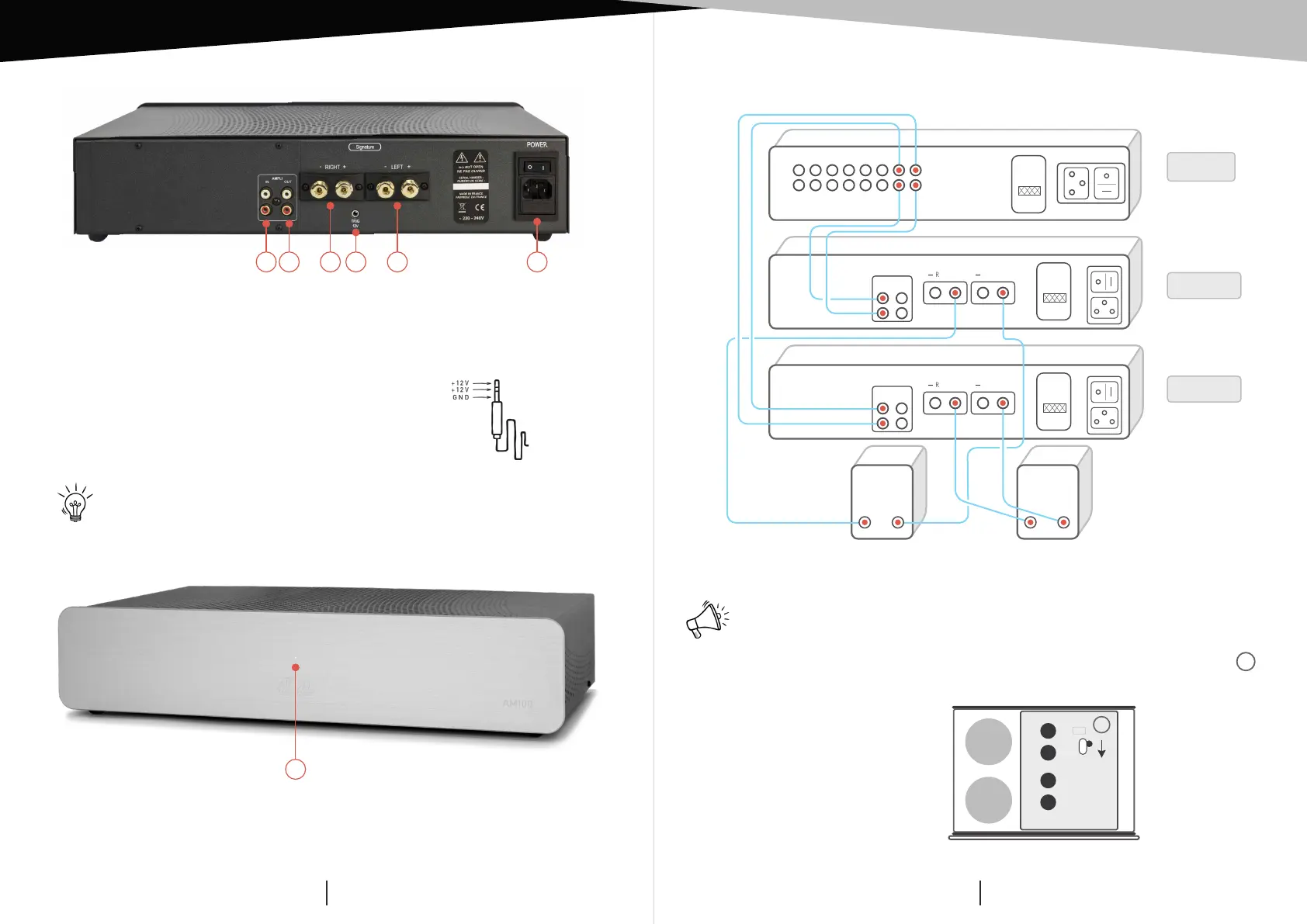

OWNER’S MANUAL ~ AMPLIFIER

AM100 Sig

ATOLL ELECTRONIQUEPage 5Page 4

1) Amplifier input.

2) Amplifier output (to another power

amplifier for bi-amp).

3) Right channel output.

4) Trigger 12V input

(1)

.

5) Left channel output.

6) General power plug and ON/OFF

switch (with internal fuse).

7) Power indicator led.

CONNECTING

DETAILS OF FUNCTIONS

12354

7

(1)

Trigger input: This input allows the control ON/OFF of your

amplifier simultaneously to any device with a 12V Trigger

outlet. In order that the system is operating, the ON/OFF

button of your Amplifier must remain in position OFF (0). If

the switch is in the ON position (I), the amplifier will work but

not the Trigger function.

Trigger cable must be a Male to Male stereo jack plug Ø 3,5 mm (1/8”).

To transform your Power Amplifier from Stereo to Mono, you have to push the switch

a

placed inside the appliance as shown below:

Internal view.

MONO BRIDGE MODE

Warning: for the AM100 Signature, bridged mono mode is not recommended on

speakers with an impedance of less than 6 Ω.

Warning: be sure

that your amplier

is unplugged

and that no other

appliance is plug

in during this

operation.

(Configuration: 1 Preamplifier and 2 mono amplifiers).

CONNECTING

PREAMP

AMP 2

AMP 1

a

LEFT

Jack

Ø 3,5 mm

DO NOT

OPEN

NE PAS

OUVRIR

SERIAL NUMBER

NUMERO DE SERIE

MADE IN FRANCE

FABRIQUE EN FRANCE

DO NOT

OPEN

NE PAS

OUVRIR

SERIAL NUMBER

NUMERO DE SERIE

MADE IN FRANCE

FABRIQUE EN FRANCE

DO NOT

OPEN

NE PAS

OUVRIR

SERIAL NUMBER

NUMERO DE SERIE

MADE IN FRANCE

FABRIQUE EN FRANCE

L

R

PRE-OUT

L

R

AMPLI

INOUT

L

R

AMPLI

INOUT

+–

POWER

POWER

RIGHT

+

RIGHT

+

LEFT

+

LEFT

+

+–

6
