ATOLL ELECTRONIQUE

OWNER’S MANUAL ~ AMPLIFIER

ATOLL ELECTRONIQUE

AM400 EVO

Page 5Page 4

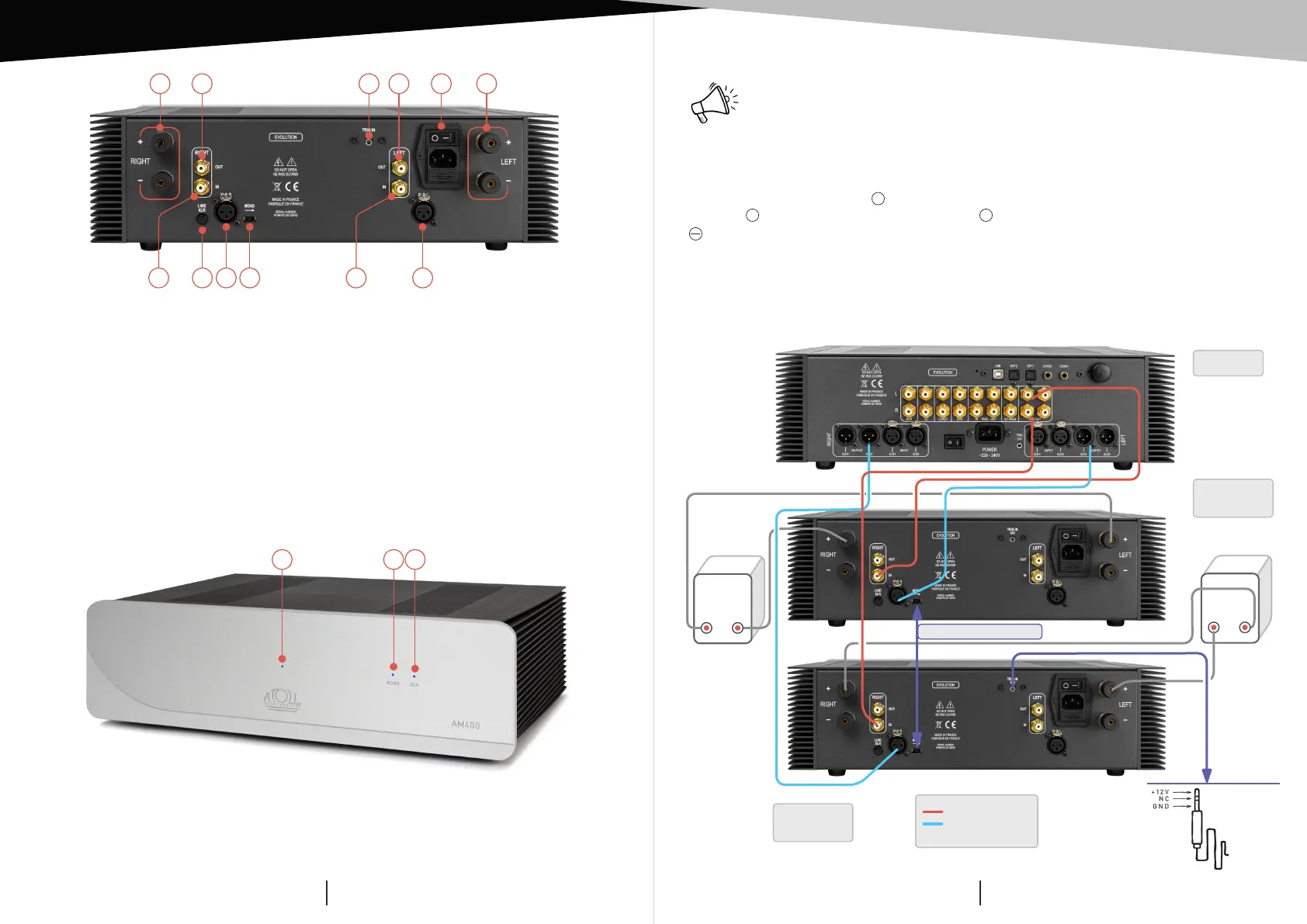

BRIDGE MONO MODE

CONNECTIONS

You can transform your AM400 Signature power amplifier into a mono bridge amplifier.

Activate the input (11) at the rear of the appliance on MONO. PRE-OUT outputs of the

preamp must be connected to the Right inputs of each Amplifier.

For each Amplifier, terminal

+

(red) of the Right output (1) has to be connected to the

terminal

+

(red) of the speaker and terminal

+

(red) of the Left output (2) to the terminal

(black) of the speaker.

The wiring of the speakers will be the same while using RCA or XLR cables.

(Configuration: 1 Preamp and 2 Power Amplifiers mono bridged).

Warning: be sure that your amplier is unplugged and that no other appliance

is plug-in during this operation.

13) Led indicator of ON/SLEEP switch.

14) Led indicator of mono bridge: the led is ON when the power amplifier has

been activated on MONO before general switch on.

15) Led indicator of XLR input mode: the LED switches ON if the button (8) on the

rear of the AM is on XLR position.

CONNECTINGS + TRIGGER

DETAILS OF FUNCTIONS

(1)

This input allows the control ON/OFF of your amplifier simultaneously to any device with

a 12V Trigger outlet. For the system to operate, the ON/OFF button on your AM400 Signature

must remain in the OFF position (0). If the switch is in the ON position (I), the amplifier will

work but not the Trigger function.

13

1415

1) Right speaker outputs.

2) Left speaker outputs.

3) General power plug and ON/OFF

switch (with internal fuse).

4) Right line output.

5) Left line output.

6) Right line input.

7) Input type selector:

– Line: button up.

– XLR: button down.

8) Right XLR input.

9) MONO bridge switch.

10) Left line input.

11) Left XLR input.

12) 12V Trigger input

(1)

.

61079

4531212

811

Interrupteur sur MONO

RCA links

XLR links

(Optionally)

PR400 EVO

Left

Speaker

Right

Speaker

+

+

–

–

AM400 EVO

left channel

AM400 EVO

right channel

Jack

Ø 3,5 mm
