ATOLL ELECTRONIQUE

AV100

ATOLL ELECTRONIQUE

OWNER’S MANUAL ~ 3 CHANNEL POWER AMP.

Page 5Page 4

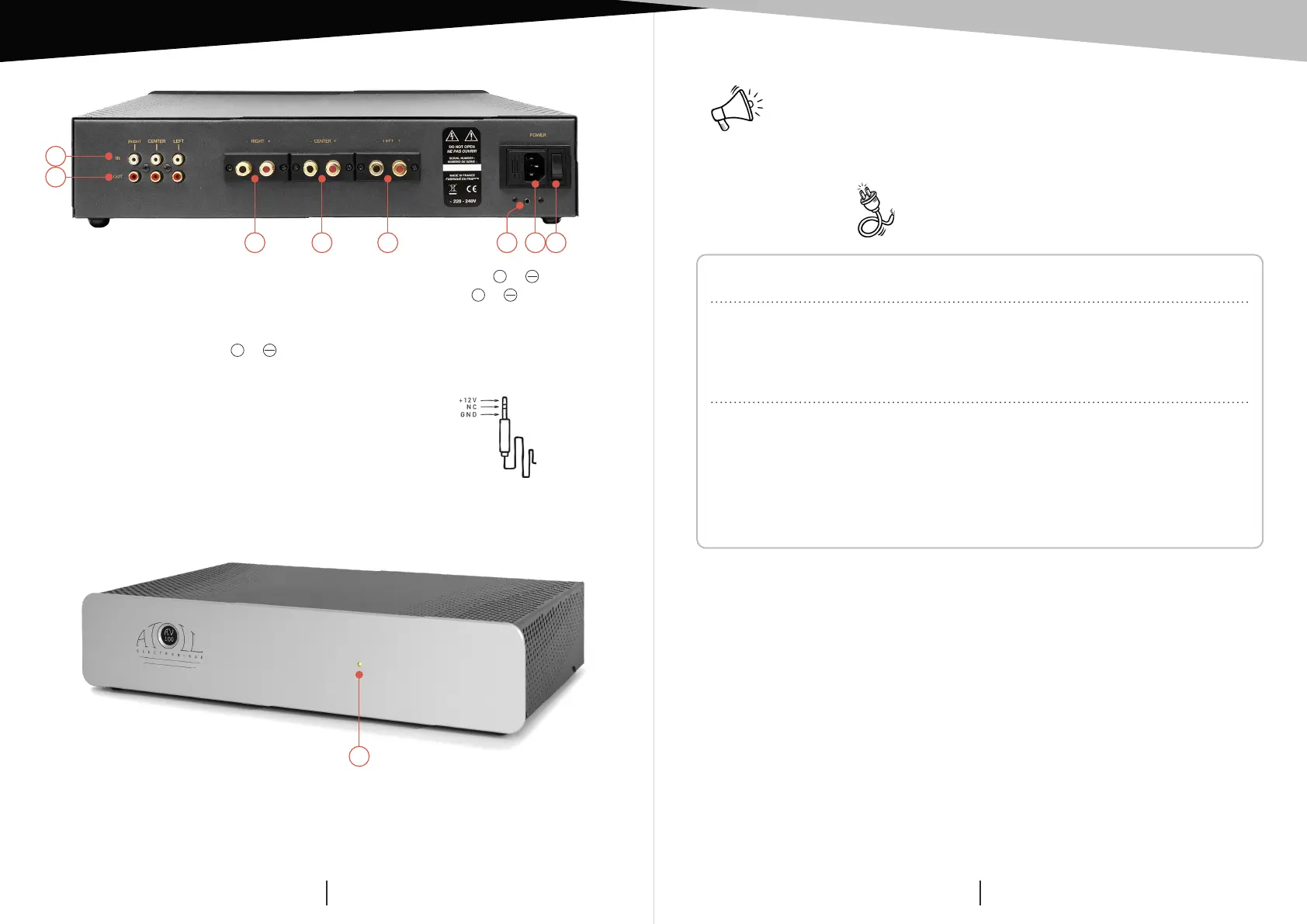

CONNECTINGS

1

2

34576

Your device has a timed power-on system. A protection relay for the

loudspeakers and amplier output stages (against overcurrents), is

activated a few seconds after switching on.

TROUBLESHOOTING

The power led (9) do not

switch on.

There is no sound from one

speaker.

Encountered problem

Possible causes

– The power switch (8) is in wrong

position.

– The power cord is not properly

connected.

– Check the quality of the

connections between the amplifier

and the speaker concerned.

– Check the quality of the

connections between the preamplifier

and the amplifier.

8

1) Ampli In (Right, Center and Left).

2) Ampli Out (Right, Center and

Left): use it to connect another

power amp or a subwoofer.

3) Right channel output

+

&.

4) Center channel output

+

&.

5) Left channel output

+

&.

6) Trigger input

(1)

(optional).

7) Power plug.

8) Power switch.

(1)

This input allows the control ON/SLEEP of your amplifier

simultaneously to any device with a 12V Trigger outlet. For the

system to operate, the ON/SLEEP button on your AV100 must

remain in the SLEEP position (0). If the switch is in the ON position

(I), the amplifier will work but not the Trigger function.

Jack

Ø 3,5 mm

9) Power on signal.

DETAILS OF FUNCTIONS

9
