ASMB-830 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x ASMB-830 Startup Manual
• 1 x SATA data cables
• 1 x SATA power cables
• 2 x CPU power cables (8P)
• 1 x I/O port bracket
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note 1: AcrobatReaderisrequiredtoviewanyPDFle.
Acrobat Reader can be downloaded at:
https://www.adobe.com/downloads.html
(Acrobat is a trademark of Adobe)
ASMB-830 Series LGA 4094 AMD EPYC™ 7003 ATX Server
Board with 8 x DDR4, 5 x PCIe x16, 9 x SATA3, 5 x USB3.2
Gen1, Dual 10GbE, IPMI
Startup Manual
Standard M/B Functions
• CPU: SP3 LGA4094 AMD EPYC™ 7003 Series proces-
sors
• BIOS: AMI 256 Mbit SPI BIOS
• System Memory: 8* DDR4-2666/2933/3200
Registered ECC DIMM, Max. Capacity 512 GB
Note 2: Due to the inherent limitations of the PC archi-
tecture, the system may not fully detect 512 GB
RAM when 512 GB RAM is installed.
• SATA Interface: 8 via SFF-8643 ports and 1 SATA 6Gb/s
port
• Serial Ports: 1 at rear IO, 1 onboard header, only sup-
ports RS-232
• Keyboard/Mouse Header (KBMS2): Supports the stan-
dard PS/2 keyboard and mouse via PS/2 cable
• Watchdog Timer: 255 level timer intervals
• USB Port: Supports up to 5 x USB 3.2 Gen1 ports (2 rear
ports, 2 ports from onboard 20-pin header and 1*Type-A
on board)
VGA Interface
• Chipset: ASPEED AST2500
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
@ 60 Hz refresh rate
Ethernet Interface
• Interface: 10/100/1000 Mbps & 10 GbE Base-T
• Controller: LAN1/2: Intel I210; LAN3/4: Intel X550
Mechanical and Environment
• Dimensions (L x W): 244 x 304 mm (9.6” x 12”)
• Power Supply Voltage: +3.3 V, +5 V, ±12 V, +5 Vs
• Power Consumption (mainboard only, excluding IO
device): Max. load: +3.3 V @ 12.646 A, +5 V@ 3.004 A,
+12 V @ 24.731 A,+5 Vsb @ 0.18 A, -12 V@ 0.082 A,
12V_8P @ 24.88 A
• Weight: 1.05 kg (weight of board)
• Operating Temperature: 0 ~ 60°C (depending on CPU)
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
Register your products on our website and get 2
months extra warranty for Free at:
http://www.register.advantech.com
This manual is for the ASMB-830 series Rev. A1
Part No. 2042083001
Printed in China
2nd Edition
June 2024
2 ASMB-830 Startup Manual
The board has a number of jumpers that allow you to con-
gureyoursystemtosuityourapplication.Thetablebelow
lists the function of each of the jumpers and connectors.
Connectors
Label Function
ATXPWR1
ATX 24-pin main power connector
ATX12V1, ATX12V2
Processor power connector
(for P1)
BH2 For optional battery kit
BIOS_SKT1 BIOS SPI ROM
BMC_SPI1
IPMI ROM
(ASMB-830I & T2 SKUs only)
COM2 Serial port: RS-232
CPUFAN0 CPU FAN connector
DIMMA1, DIMMB1,
DIMMC1, DIMMD1,
DIMME1, DIMMF1,
DIMMG1, DIMMH1
DDR4 slot
EX_THR1 Connector for external thermistor
GPIO1 GPIO connector
HDT1 HDT connector
JFP1, JFP1+JFP2,
JFP3
Front panel header
KBMS1
External keyboard and mouse
connector (6-pin)
LAN1_2, LAN3_4 RJ-45 LAN connector
LAN5
IPMI dedicated LAN connector
(ASMB-830 I & T2 SKUs only)
LPC1 TPM connector
M2_22110_1 M.2 connector (SATA & PCIe x4)
M2_22110_2 M.2 connector (PCIe x4)
PMBUS1
PMBUS connector to communi-
cate with power supply
SATA_CON1
SATA 0~7 via SFF8643 con-
nector
SATA8 SATA Connector
SGPIO1, SGPIO2 SATA SGPIO header
PCIEX16_SLOT1 PCIE x16 slot (x16 link) (CPU)
PCIEX8_SLOT2 PCIE p2-x8 slot (x8 link) (CPU)
PCIEX16_SLOT3 PCIE x16 slot (x16 link) (CPU)
PCIEX8_SLOT4 PCIE p2-x8 slot (x8 link) (CPU)
PCIEX16_SLOT5 PCIE x16 slot (x16 link) (CPU)
Jumpers and Connectors (Cont.)
PCIEX16_SLOT6 PCIE x16 slot (x16 link) (CPU)
PCIEX16_SLOT7 PCIE x16 slot (x16 link) (CPU)
PEHP1 NVMe LED control
SLOT12V1 For PCIe slot 12V input only
SMBUS1 SMBus header
SPI_CN1 Connector for BIOS update tool
SPI_SKT1 EC EEPROM
SYSFAN0~SYSFAN6 System FAN connector
USB3_12, USB3_34,
USB3_5
USB 3.2 port 1, 2; USB 3.2 port
3, 4 (20-pin header);
USB 3.2 port 5 (Type A)
VGA1, COM1 VGA & COM connector
Jumper list
Label Function
JCASE1 Chassis case open alarm
JCMOS1
CMOS clear
JTHR_SEL1
To select on board or external thermis-
tor
JWDT1 Watch Dog Reset
PSON1 AT(1-2) / ATX(2-3)
JCMOS1: CMOS clear function
Closed pins Result
1-2
Keep CMOS data
2-3 Clear CMOS data
*: Default
Keep CMOS data Clear CMOS data
Declaration of Conformity
The device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference;
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
Jumpers and Connectors
ASMB-830 Startup Manual 3
JCMOS1: CMOS clear function
Closed pins Result
1-2
Keep CMOS data
2-3 Clear CMOS data
*: Default
*Power button pin is located in Pin 3 & 6 of front panel
connector.

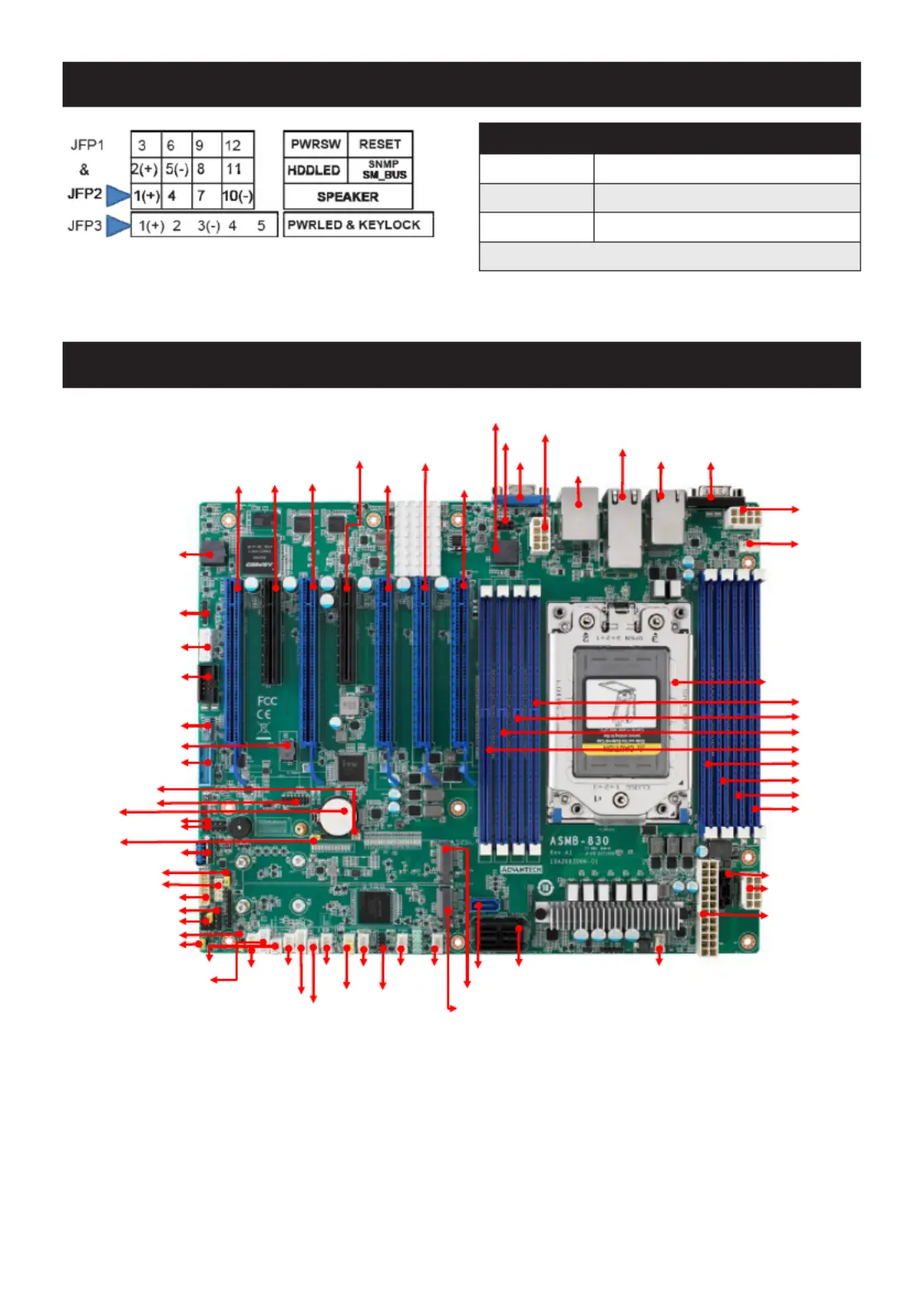

Figure 1: Board Layout: Jumper and Connector Locations
Installation Note
Board Layout
LAN 21_
COM1
LAN 43_
VGA1
SATA8
SYS
FAN3
BMC_SPI1
PCIEX8
_SLOT2
SGPIO2
ATX V212
PCIEX8
_SLOT4
AMD LGA P14094
DI D1MM
DI E1MM
DI G1MM
SMBUS1
EX_T 1HR
SYS
FAN1
JCASE1
USB 43_3
KBMS1
BMC_UART1
PCIEX16
_SLOT6
JCMOS1
PCIEX16
_SLOT1
COM2
LPC1
LANLED1
SYSFAN4
DI C1MM
DI B1MM
DI A1MM
PCIEX16
_SLOT3
PCIEX16
_SLOT5
PMBUS1
PSON1
LAN5
USB 23_1
PCIEX16
_SLOT7
HDT1
JFP1
SYS
FAN2
CPUFAN0
DI F1MM
DI H1MM
ATXPWR1
SYS
FAN6
SGPIO1
BH2
USB 53_
JT _SEL1HR
JWTDT1
JFP JFP21+
JFP3
SLOT V112
SP 1I CN
BIOS_SKT1
ATX V112
SATA_CON1
SPI_SKT1
BH1
GPIO1
PEHP1
SYS
FAN0
SYSLED1
SYS
FAN5
M 12_22110_
M 22_22110_
