ASMB-807 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x ASMB-807 startup manual
• 2 x SATA data cables
• 2 x SATA power cables
• 2 x CPU carrier (E1A & E1B)
• 1 x I/O port bracket
• 2 x M.2 screws
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Standard M/B Functions
• CPU: LGA4677 Intel Xeon® W-3500/2500 series and
Xeon® W-3400/2400 series processors
• BIOS: AMI 512 Mbit SPI BIOS
• Chipset: Intel
®
W790 PCH
• System Memory: 8* DDR5 4400/4800
Registered ECC DIMM, Max. Capacity 2TB
Note1: Due to the inherent limitations of older PC archi-
tectures, the system may not fully detect 512 GB
RAM when 512 GB RAM is installed.
Note2: Max speed of 4800 MT/s can only be supported
with1DIMMperchannelconguration(Total4
DIMMs installed on DIMMA1/B1/E1/F1 slots)
ASMB-807 Series LGA 4677 Intel® Xeon® W
Processors ATX Server Board with 8 x DDR5, 3 x PCIe
x16, 8 x SATA 3.0, 9 x USB 3.2, 2 x M.2, Dual 10GbE,
and IPMI
•
SATA Interface: 8 x SATA3 6Gb/s ports Intel Rapid
Storage (for Windows only) (SATA0-SATA7 supports
software RAID 0, 1, 10 & 5)
• Serial Ports: One external serial port and one onboard
header, RS-232 only
• Keyboard/Mouse Header (KBMS1): Supports the stan-
dard PS/2 keyboard and mouse via PS/2 cable.
• Watchdog Timer: 255 level timer intervals
• USB Port: Supports up to 6 x USB 3.2 Gen2x1 ports, 2 x
USB 3.2 Gen1x1 (onboard 20-pin header), 3 x USB 2.0 (2
ports from onboard 10-pin header + 1 x onboard Type A),
and 1 x USB 3.2 Gen2x2 ports (onboard Type-E A-Key
header)
VGA Interface
• Chipset: ASPEED AST2500/2510
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
@ 60 Hz refresh rate
Ethernet Interface
• Interface: 10/100/1000/2500 Mbps & 10 GbE Base-T
• Controller: LAN1/2: Intel I226; LAN3/4: Intel X710
CPU Carrier Information
• E1A: Intel Xeon® W-3500/3400 series processors
• E1B: Intel Xeon® W-2500/2400 series processors
Mechanical and Environment
• Dimensions (L x W): 244 x 304 mm (9.6” x 12”)
• Power Supply Voltage: +3.3 V, +5 V, +12 V, +5 Vsb
• Power Consumption (mainboard only, excluding IO
device): Max. load: +3.3 V @ 2.94A, +5 V@ 1.81A,
+12 V @ 0.03A,+5 Vsb @ 0.14A, 12 V_8P @ 19.36A
• Operating Temperature: 0 ~ 60°C (depending on CPU
speed and cooler solution)
• Net Weight: 0.97 kg
The board has a number of jumpers that allow you to con-
gureyoursystemtosuityourapplication.Thetablebelow
lists the function of each of the jumpers and connectors.
Connectors
Label Function
ATXPWR1 ATX 24-pin main power connector
ATX12V1, ATX12V2 Processor power connector
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
Register your products on our website and get 2
months extra warranty for Free at:
http://www.register.advantech.com
This manual is for the ASMB-807 series Rev. A1.
Part No. 2042080700
Printed in China
1st Edition
Oct 2024
Specications(Cont.)
Jumpers and Connectors
Startup Manual

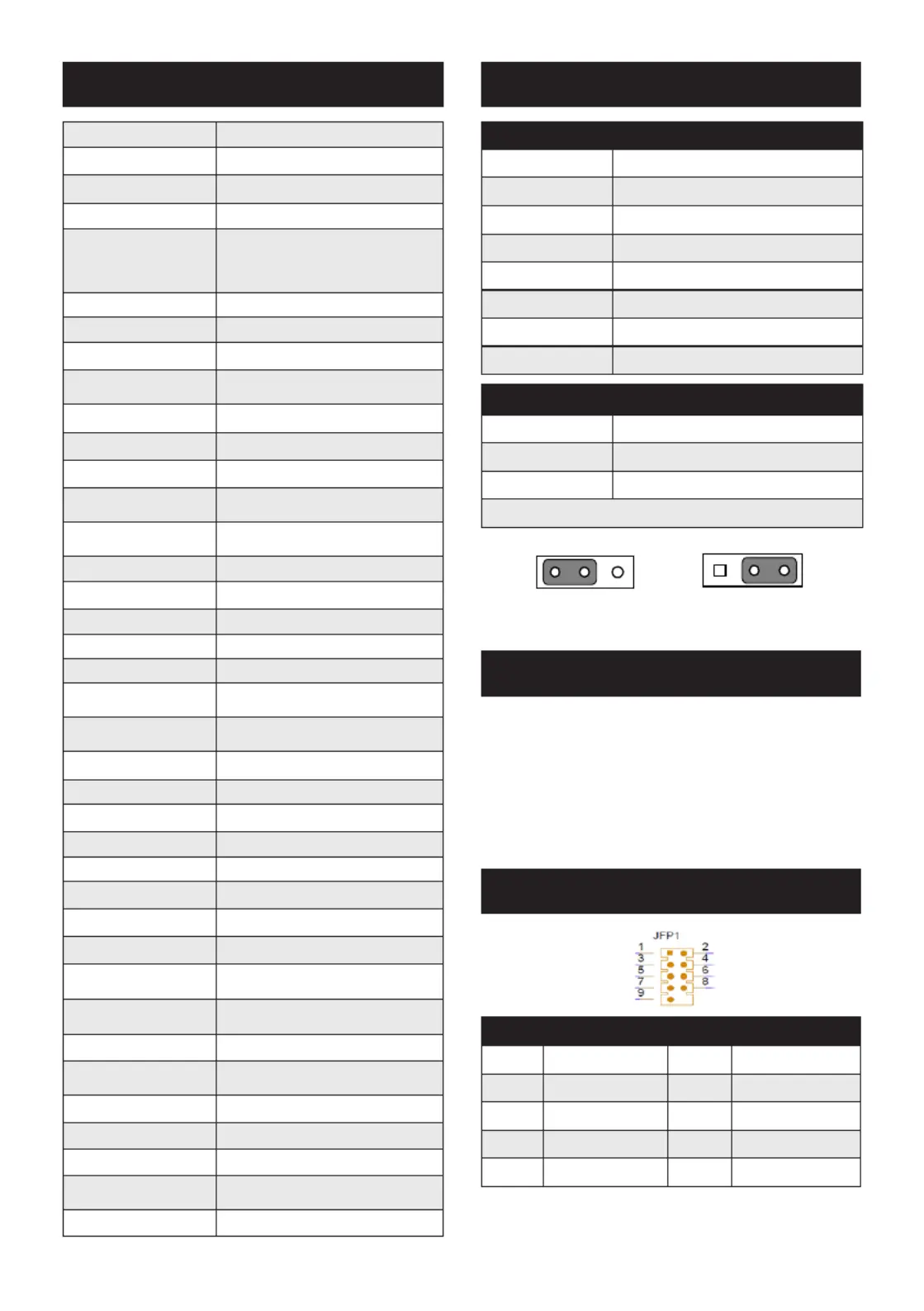

2 ASMB-807 Startup Manual
BH1 For optional battery kit
BIOS_SKT1 BIOS SPI ROM
COM2 Serial port: RS-232
CPUFAN0 CPU FAN connector
DIMMA1, DIMMA2,
DIMMB1, DIMMB2,
DIMME1, DIMME2,
DIMMF1, DIMMF2
DDR5 slot
EX_THR1 Connector for external thermistor
GPIO1 GPIO connector
HDAUD1 Audio header
KBMS1
External keyboard and mouse con-
nector (6-pin)
LAN1, LAN2, LAN3_4 RJ-45 LAN connector
BMCLAN_USB3C3 IPMI dedicated LAN connector
SPI_TPM1 TPM connector
M2_2280_1,
M2_2280_2
M.2 connector (SATA & PCIe x4)
PMBUS1
PMBUS connector to communicate
with power supply
SATA0~SATA7 SATA connector 0~7
SGPIO1,SGPIO2 SATA SGPIO header
PCIEX4_SLOT1 PCIE 4 slot, open end (x4 link) (PCH)
PCIEX16_SLOT2 PCIE x16 slot (x16 link) (CPU)
PCIEX16_SLOT3 PCIE x16 slot (x16 link) (CPU)
PCIEX8_SLOT5
PCIE p2-x8 slot, open end (x8 link)
(CPU)
PCIEX4_SLOT6
PCIE p2-x4 slot, open end (x4 link)
(PCH)
PCIEX16_SLOT7 PCIE x16 slot (x16 link) (CPU)
SLOT12V1 For PCIe slot 12V input only
SMBUS1 SMBus header
SPI_CN1 Connector for BIOS update tool
BMC_SPI1 BMC EEPROM
SYSFAN0~SYSFAN5 System FAN connector
USB2H1 USB 2.0 port 9, 10, (9-pin header)
USB2A1 USB 2.0 port 14 (Type-A)
USB3C1, USB3C2,
USB3C3
USB 3.2 Gen2x1 port 1, 2, 3, 4, 5, 6
USB3H1 3.2 Gen1x1 port 7, 8 (19-pin header)
USB3E1 USB 3.2 Gen2x2 port 11(Type-E)
VGA1_COM1
VGA + COM connector, Serial:
RS-232
ESPI1 eSPI connector
SYS_LED1 System LED connector
LANLED1 LAN LED connector
PEHP1
NVMe Raid Status SMBus for NVMe
BP LED Control
VROC1 Intel Virtual RAID (VROC) key
Jumpers and Connectors (Cont.)
Jumper list
Label Function
JCASE1 Chassis case open alarm
JCMOS1 CMOS clear
JFP1, JFP2 Front panel header
JME1 ME update
JTHR_SEL1 To select on board or external thermistor
JWDT1 Watchdog Reset
PSON1 AT(1-2)/ATX(2-3), default (2-3)
JCMOS1/JME1: CMOS clear/ME update function
Closed pins Result
1-2
Keep CMOS data/Disable ME update*
2-3 Clear CMOS data/Enable ME update
*: Default
Keep CMOS data/ Clear CMOS data/
Disable ME update Enable ME update
The device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference;
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
JFP1
1 HDD_LED + 2 PWR BTN
3
HDD_LED -
4 GND
5 PWR LED + 6 RST BTN
7 GND 8 GND
9 GND
123
1 2 3
Jumpers and Connectors
Declaration of Conformity
Installation Note
ASMB-807 Startup Manual 3
2.0 mm JFP2 connector to 2.54 mm pitch header
Description Pin Number Description
(Red) PWD BTN 2 RST BTN (White)▼1
(Black) PWD GND 3 4 PWD GND (Black)
(Blue) LAN1_LED+ 5 6 LAN2_LED+(Brown)
(Red) LAN1_LED- 7 8 LAN2_LED-(Black)
Key
(Orang) HDD_LED+ 13 14 PWR LED+ (Red)
(Black) HDD_LED- 15
Key 16 PWR LED- (Black)
Note 2.0 mm JFP2 to 2.54mm cable will be adopted
when there is an interference in between the full
length expansion card and JPF1 cable.
2.0 mm JFP2 connector on board
Description Pin Number Description
RST BTN 2 PWD BTN▼1
PWD GND 4 3 PWD GND
LAN1_LED+ 6 5 LAN2_LED+
LAN1_LED- 8 7 LAN2_LED-
X 10 9 SYS_LED+
GND 12 SYS_LED-11
PWR LED+ 14 13 HDD_LED+
PWR LED- 16 15
HDD_LED-

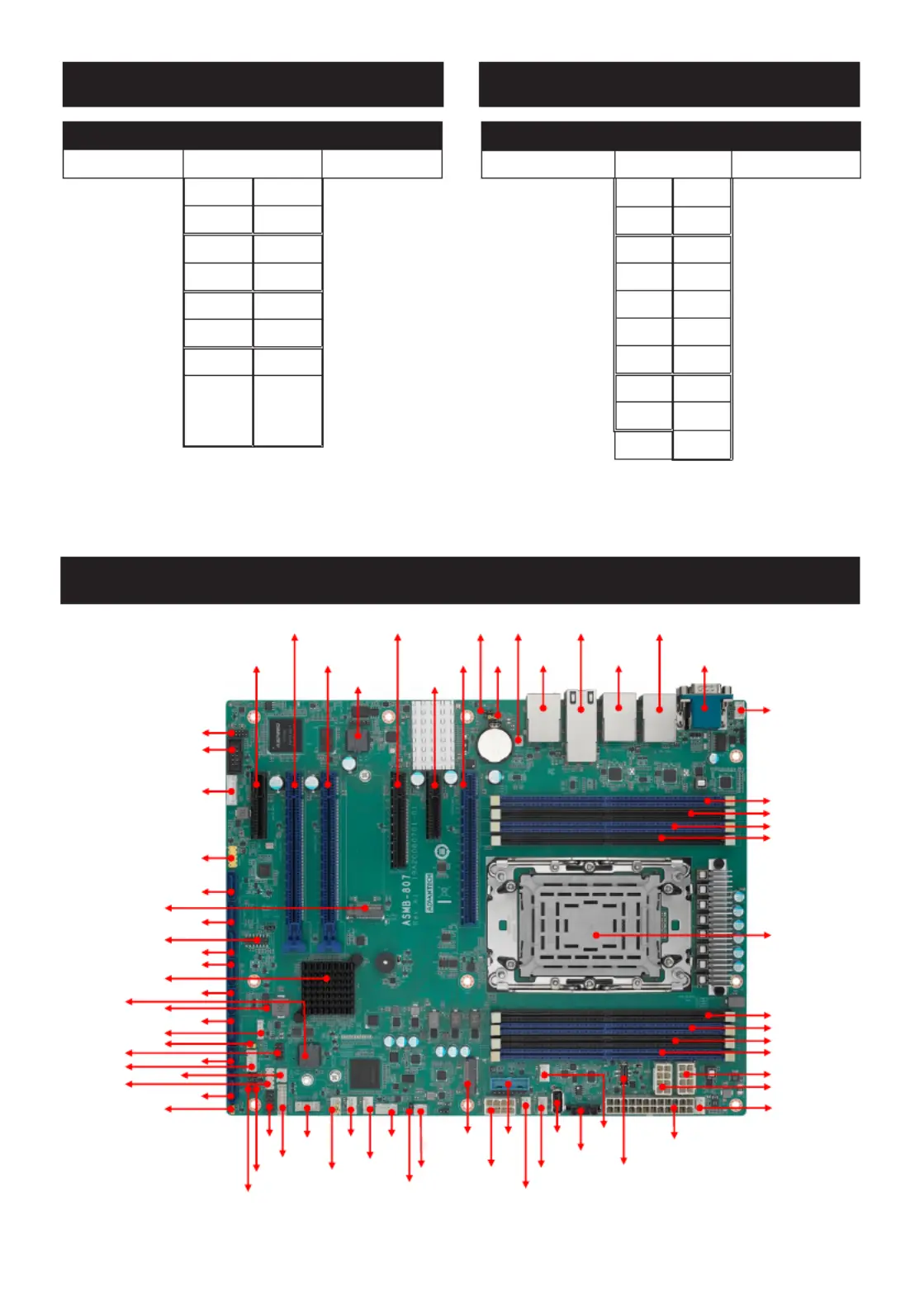

Figure 1: Board Layout: Jumper and Connector Locations
JCMOS1
JME1
BH1
LAN3_4
LAN2_
USB3C2
LAN1_
USB3C1
BMCLAN_
USB3C3
VGA1_COM1
SYSFAN5
DIMM_B1
DIMM_B2
DIMM_A1
DIMM_A2
DIMM_E2
DIMM_E1
DIMM_F2
DIMM_F1
Intel LGA4677 CPU0
ATX12V1
ATX12V2
SYSFAN4
ATXPWR1
USB3E1
PMBUS1
USB2A1
SYSFAN3
SYSFAN2
SLOT12V1
USB3H1
CPUFAN0
M2_2280_2
EX_THR1
JTHR_SEL1
PEHP1
SYSFAN1
SYSFAN0
PSON1
SPI_TPM1
JFP2
JFP1
SGPIO1
SGPIO2
JCASE1
SATA7
SATA6
SYS_LED1
LANLED1
SMBUS1
SPI_CN1
VROC1
JWDT1
SATA5
SATA4
BIOS_SKT1
GPIO1
ESPI1
SATA3
PCH1
SATA2
SATA1
SATA0
PCIEX16_SLOT2
PCIEX16_SLOT3
PCIEX4_SLOT1
USB2H1
M2_2280_1
KBMS1
PCIEX8_SLOT5
PCIEX4_SLOT6
COM2
HDAUD1
PCIEX16_SLOT7
BMC_SPI1
Installation Note (Cont.)
Board Layout
Installation Note (Cont.)
