ASMB-977S Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x ASMB-977S startup manual
• 1 x Serial ATA HDD data cables
• 1 x Serial ATA HDD power cables
• 2 x CPU power cables (8P)
• 2 x CPU carrier - E1A (XCC)
• 2 x CPU carrier - E1B (MCC)
• 1 x I/O port bracket
• 2 x M.2 screw
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note 1: Acrobat Reader is required to view any PDF fi le.
Acrobat Reader can be downloaded at:
https://www.adobe.com/downloads.html
(Acrobat is a trademark of Adobe)
ASMB-977S Dual LGA4677 5th/4th Gen Intel® Xeon®
Scalable Proprietary Server Board with 16 x DDR5, 6 x
PCIe x16, 2 x MCIO, 5 x SATA3.0, 4 x USB 3.2 (Gen 1),
Dual 10GbE, and IPMI
Startup Manual
Standard M/B Functions
• CPU: Dual LGA4677 5th/4th Gen Intel® Xeon® Scalable
processors, TDP up to 350W
• BIOS: AMI 512 Mbit SPI BIOS
• Chipset: Intel® C741 PCH
• System Memory: 16x DDR5 4400/4800/5200/5600 MT/s
registered ECC DIMM, Max. capacity 4TB
Note 2: Due to the inherent limitations of the PC architec-
ture, the system may not fully detect 4TB RAM
when 4TB RAM is installed.
• SATA Interface:
- 4 x SATA 3.0 (6 Gb/s) via Slim-SAS HD, supports
software RAID 0,1,5,10
- 1 x SATA 3.0 (6 Gb/s) for internal HDD or ODD
• Serial Ports: Two RS-232 ( one on rear I/O, and another
one via pin header)
• Keyboard/Mouse Header (KBMS1): Supports the stan-
dard PS/2 keyboard and mouse via PS/2 cable
• Watchdog Timer: 255 /sec or min level timer intervals
• USB Port: Supports up to 4 x USB 3.2 gen1 (2 rear and
2 onboard) and 1 x USB 2.0 ports (1*Type-A connector
onboard)
VGA Interface
• Chipset: ASPEED AST2600
• Resolution: Supports VGA up to resolution 1920 x 1200
@60Hz refresh rate
Ethernet Interface
• Interface: 10/100/1000 Mbps & 10Gb (only for LAN3 &
LAN4)
• Controller: LAN1/2: Intel I210; LAN3/4: Intel
®
X710-AT2
Mechanical and Environment
• Dimensions (L x W): 380 x 349.5 mm (14.96” x 13.76”)
• Power Supply Voltage: +3.3 V, +5 V, ±12 V, +5 Vsb
• Power Consumption (mainboard only, excluding
IO device): Max. load: +3.3V@2.8A, +5V@2.23A,
+12V@0.15A, +5V_SB@0.12A, -12V@0.01A,
+12V_8P_1@17.11A, +12V_8P_2@16.65A,
+12V_8P_3@17.89A, +12V_8P_4@17.74A
• Operating Temperature: 0 ~ 40° C (depending on CPU)
• Weight: 1.8 kg (weight of board)
Specifi cations Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
Register your products on our website and get 2
months extra warranty for free at:
http://www.register.advantech.com
This manual is for the ASMB-977S series Rev. A1.
Part No. 2042977S00
Printed in China
1st Edition
May 2025
2 ASMB-977S Startup Manual
The board has a number of jumpers that allow you to con-
fi gure your system to suit your application. The table below
lists the function of each of the jumpers and connectors.
Connectors
Label Function
ATXPWR1
ATX 24-pin main power connector
ATX12V1, ATX12V3
Processor power connector
(mandatory)
ATX12V2, ATX12V4
Processor power connector
(reserved)
BH2 For optional battery kit
BIOS_SKT1 BIOS SPI ROM
BMC_SPI1 BMC SPI ROM
BMC_LAN IPMI dedicated LAN connector
COM1 RS-232 connector
COM2 RS-232 header
CPUFAN0, CPUFAN1 CPU FAN connector
DIMMA1, DIMMB1,
DIMMC1, DIMMD1,
DIMME1, DIMMF1,
DIMMG1, DIMMH1
DDR5 from CPU0
DIMMI1, DIMMJ1,
DIMMK1, DIMML1,
DIMMM1, DIMMN1,
DIMMO1, DIMMP1
DDR5 from CPU1
DIMMA1, DIMMC1,
DIMME1, DIMMG1,
DIMMI1, DIMMK1,
DIMMM1, DIMMO1
DCPMM slot
ESPI1 eSPI connector
EX_THR1 Connector for external thermistor
GPIO1 GPIO connector
HDAUD1 Audio header
JFP1, JFP2, JFP3 Front panel header
KBMS1
External keyboard and mouse
connector
LAN1, LAN2 1 Gbps LAN connector
LAN3, LAN4 10 Gbps LAN connector
LANLED1 LAN LED extension connector
M2_2280_1
M.2 connector (SATA and PCIe
gen3 x4)
M2_2280_2
M.2 connector (SATA and PCIe
gen3 x4)
MCIO1, MCIO2 MCIO PCIe Gen5 p2-x8 connector
PCIEX16_SLOT1 PCIE x16 slot (CPU0)
Jumpers and Connectors (Cont.)
PCIEX16_SLOT2 PCIE x16 slot (CPU0)
PCIEX16_SLOT4 PCIE x16 slot (CPU0)
PCIEX16_SLOT6 PCIE x16 slot (CPU0)
PCIEX16_SLOT8 PCIE x16 slot (CPU1)
PCIEX16_SLOT9 PCIE x16 slot (CPU1)
PMBUS1
PMBUS connector to communi-
cate with the power supply
SATA_CON1 4 x SATA3.0 via Slim-SAS HD
SLOT12V1 For PCIe slot 12V input only
SLOT12V2 For PCIe slot 12V input only
SMBUS1 SMBus header
SATA0 SATA connector
SYSFAN0~SYSFAN6 System FAN connector
SYS_LED1 System LED connector
USB2A1 USB 2.0 port (Type-A)
USB3H1 USB 3.0 port (20-pin header)
VGA1 VGA connector
PEHP1 NVMe RAID LED control
VROC1
Enables NVMe RAID, hot-plug,
and LED control via direct PCIe
CPU link.
Jumper List
Label Function
JCMOS1
CMOS clear
JME1 ME update
JWDT1 Watch Dog Reset
JTHR_SEL1
Internal (default pins 2-3) and external
(pins 1-2) thermistor selection
JCASE1 Chassis case open alarm
PSON1
AT(1-2)/ATX(2-3)
JCMOS1/JME1: CMOS Clear/ME Update Function
Closed Pins Result
1-2
Keep CMOS data/Disable ME update*
2-3 Clear CMOS data/Enable ME update
*: Default
Keep CMOS data/Disable ME update Clear CMOS data/Enable ME update
123
123
Jumpers and Connectors
ASMB-977S Startup Manual 3
The computer is supplied with a battery-powered real time
clock circuit. There is a danger of explosion if battery is
incorrectly replaced. Replace only with same or equivalent
type recommended by the manufacturer. Discard used bat-
teries according to manufacturer’s instructions.
The device complies with the requirements of FCC Class A,
Part 15 of the FCC rules. Operation is subject to the follow-
ing two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
JFP1, JFP2
Pin.3 #PWR_SW
Pin.6
GND
Pin.9 #RST_SW
Pin.12 GND
Pin.8, Pin.11 HWM_SMB_DATA, HWM_SMB_CLK
*Power button pin is located in pins 3 & 6 of front panel
connector.
Declaration of Conformity

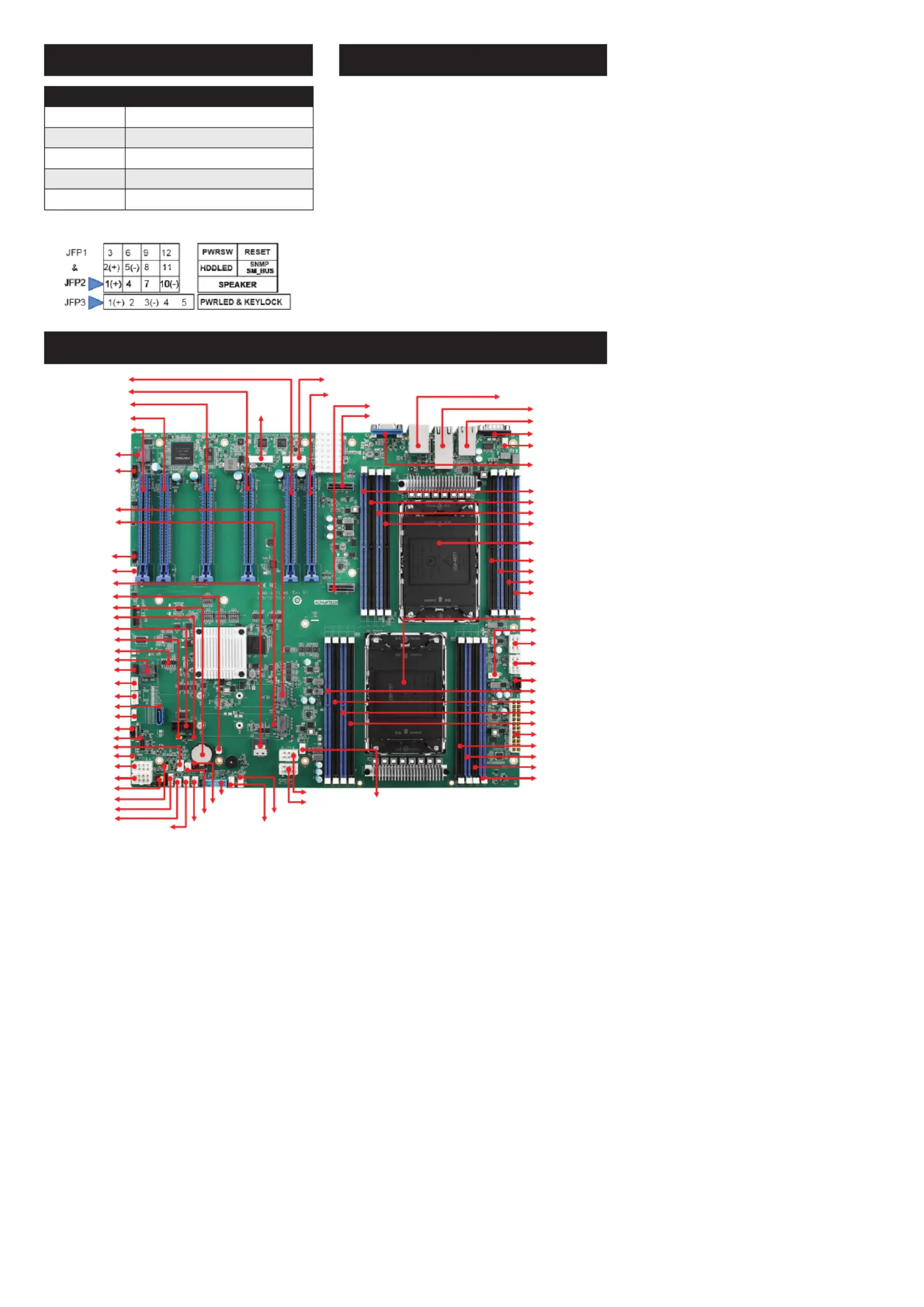

Figure 1: Board Layout: Jumper and Connector Locations
SYSFAN1
EX_THR1
JFP1/2/3
GPIO1
VROC1
SATA0
SPI_CN1
BIOS_SKT1
USB3H1
BMC_SPI1
PCIEX16_SLOT4
PCIEX16_SLOT2
PCIEX16_SLOT1
PCIEX16_SLOT8
PCIEX16_SLOT6
MCIO2
SYSFAN4
PCIEX16_SLOT9
MCIO1
SYSFAN5
VGA1
BMC_UART1
DIMML1
DIMMK1
DIMMJ1
DIMMI1
DIMMM1
DIMMN1
DIMMO1
DIMMP1
CPU1
DIMMA1
DIMMB1
DIMMC1
DIMMD1
CPU0
ATXPWR1
DIMMH1
DIMMG1
DIMMF1
DIMME1
PMBUS1
CPUFAN1
ATX12V4
ATX12V3
COM1
SYSFAN6
BMCLAN_USB3C1
LAN3_4
LAN1_2
M2_2280_2
M2_2280_1
HDAUD1
KBMS1
BH2
BH1
SATA_CON1
JME1
COM2
JCMOS1
ESPI1
ATX12V2
ATX12V1
CPUFAN0
SYSFAN3
SYSFAN2
SYSFAN0
JTHR_SEL1
PEHP1
SMBUS1
USB2A1
SLOT12V1
SLOT12V2
JCASE1
PSON1
JWDT1
LANLED1
SYS_LED1
Jumpers and Connectors (Cont.)
Board Layout
