AIMB-785 Startup Manual 1
AIMB-785 LGA1151 Intel® Core™ i7/i5/i3 ATX with
Triple Display, DDR4, SATA III
Startup Manual
Specications (Cont.)
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the AIMB-785 series Rev. A1.
Part No. 2001078513
Printed in China
4th Edition
October 2024
• SATA interface: Four on-board Serial ATA 3.0 connectors
support data transmission rates of up to 600 MB/s. All
four SATA 3.0 ports support Advanced Host Controller
Interface (AHCI) technology.
• PCIe and PCI slots: 1 PCIe x16 expansion slot, 3 PCIe
x4 expansion slots, 3 PCI slots 32-bit/33 MHz PCI 2.2
compliant
• LPC interface: Advantech-designed LPC connector sup-
ports dTPM 2.0 module
• Serial ports: Six serial ports: COM1, COM2 and COM4 ~
6 are RS-232; COM3 is RS-232/422/485 with BIOS menu
options
• Keyboard/mouse connector: An external keyboard and
mouse connector on the motherboard is supported. No
PS/2 keyboard/mouse connector is supported in the rear
I/O.
• Watchdog timer: 255 sec timer intervals
• USB 3.0/2.0: Thirteen USB ports: 1/2/3/4/13/14 are USB
3.0; others are USB 2.0.
Graphics Interface
• Chipset: CPU integrated graphics controller
• Display Memory: 1 GB maximum shared memory with 2
GB and above system memory installed
• Resolution: Supports DVI up to 1920 x 1200 resolution
@ 60 Hz refresh rate.
Supports VGA up to 1920 x 1200 resolution @ 60 Hz
refresh rate.
Ethernet Interface
• Interface: 10/100/1000 Mbps
• Controller: LAN1: Intel
®
I219LM; LAN2: Intel
®
I210AT
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12” x 9.6”)
• Power supply voltage: +3.3 V, +5 V, +12 V, +5 Vsb
• Power consumption:
Intel® Core™ Intel® I7-6700 3.4 GHz; DDR4 8 G x 4
Maximum: +3.3 V at 1.02 A, +5 V at 1.96 A, +12 V at 1.14
A, +5 Vsb at 0.08 A, -5 V at 0.03 A, -12 V at 0.06 A
• Operating temperature: 0 ~ 60°C (depending on CPU)
• Weight: 0.7 kg (weight of board)
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 AIMB-785 motherboard
• 1 AIMB-785 Startup Manual
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 1 I/O port bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
le.AcrobatReadercanbedownloadedat:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
Specications
Standard Functions
• CPU: LGA1151 6th and 7th Gen Intel® Core™ i7/i5/i3
and Celeron®/Pentium® processors
Note: Only 6th Gen Intel® processors can support
Windows 7.
• BIOS: AMI 128 Mb SPI BIOS
• Chipset: Intel® Q170 chipset
• System memory: Up to 64 GB with four 288-pin DIMM
sockets, supporting dual-channel DDR4 1866/2133
SDRAM.AIMB-785supportsnon-ECCunbueredDIMMs
anddoesnotsupportanymemorycongurationthat
mixesnon-ECCwithECCunbueredDIMMs.
Note: Due to the inherent limitations of PC architecture,
the system may not fully detect 64 GB RAM
when 64 GB RAM is installed.

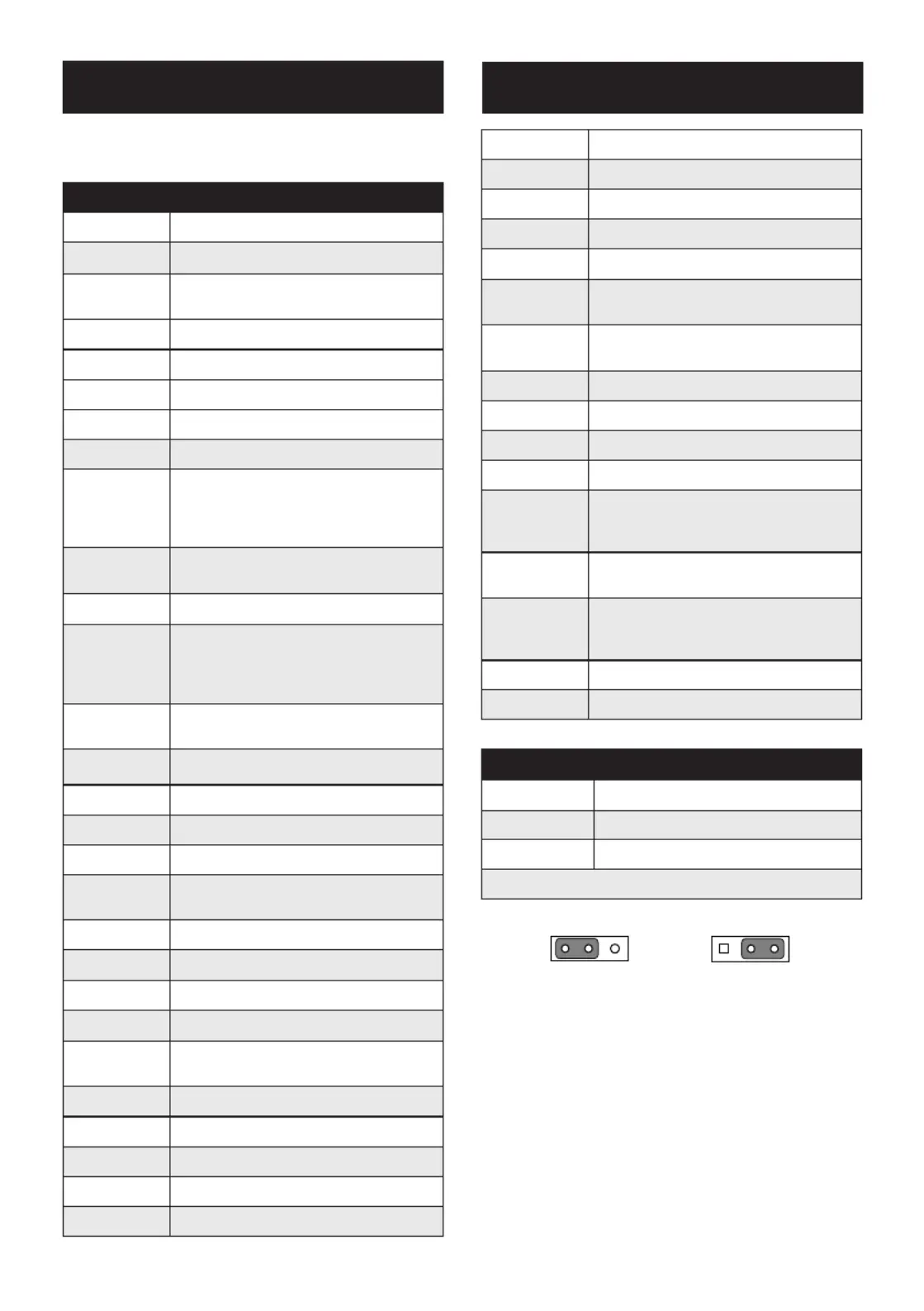

2 AIMB-785 Startup Manual
The board has a number of jumpers that allow you to con-
gureyoursystemtosuityourapplication.Thetablebelow
lists the function of each jumper and connector.
Connector / Jumper List
Label Function
JWDT1 Watchdog reset
LPC1
Low pin count connector for Advantech
dTPM 2.0 and RS232 modules
LAN1_USB12 LAN1 / USB 3.0 port 1, 2
LAN2_USB34 LAN2 / USB 3.0 port 3, 4
VGA1+COM1 VGA connector / COM connector
DVI1+DVI2 Dual DVI-D connectors
COM1 Serial port: RS-232 (DB-9 connector)
COM2
COM4
COM5
COM6
Serial port: RS-232 (9-pin header)
COM3
Serial port : RS-232/422/485 (9-pin
header)
KBMS1 Keyboard and mouse connector (6-pin)
JFP3
Keyboard lock and power/sleep LED
Suspend:fastash(ATX/AT)
Systemon:ON(ATX/AT)
Systemo:OFF(AT/ATX)
JFP2
External speaker / HDD LED connector
SNMP / SM Bus connector
JFP1 Power switch / reset connector
JCASE1 Case open connector
PSON1 AT/ATXmodeselector
VOLT1 Alarm board power connector
JOBS1
Close: Enable OBS alarm
Open: Disable OBS alarm
CPUFAN1 CPU FAN connector (4-pin)
SYSFAN1 System FAN power connector (4-pin)
SYSFAN2 System FAN power connector (4-pin)
LANLED1 Front panel LAN indicator connector
AUDIO1
AUDIO2
Audio connector (Line-Out, Mic-In)
FPAUD1 Front panel audio pin header
USB56 USB port 5, 6
USB78 USB port 7, 8
USB910 USB port 9, 10
USB11 USB11 (Type-A)
USB1314 USB 3.0 13, 14
SATA2 Serial ATA3
SATA3 Serial ATA4
SATA4 Serial ATA5
SATA5 Serial ATA6
ATX12V1
ATX12Vauxiliarypowerconnector
(for CPU)
EATXPWR1
ATX24-pinmainpowerconnector
(for system)
SPDIF_OUT1 Digital audio output pin header
SPI_CN1 SPIashcardpinheader
JCMOS1
Clear CMOS
JME1 Intel® ME Enable/Disable jumper
JPCICLK1
PCI Clock selection
(1-2): 33/66 MHz auto-detected (default)
(2-3): 33 MHz
JUSB_1
USB power source switch between +5V
and +5V_ DUAL for Rear USB ports
JUSB_2
USB power source switch between +5V
and +5V_ DUAL for On-board USB
ports
GPIO1 8-bit digital I/O connector
SMBUS1 SMBus connector
JCMOS1: CMOS and ME Clear Function
Pins Result
1-2 Keep CMOS data*
2-3
Clear CMOS data
* Default
1 2 3
1 2 3
*Keep CMOS data Clear CMOS data
Jumpers and Connectors
Jumpers and Connectors (Cont.)
123
123
123
123

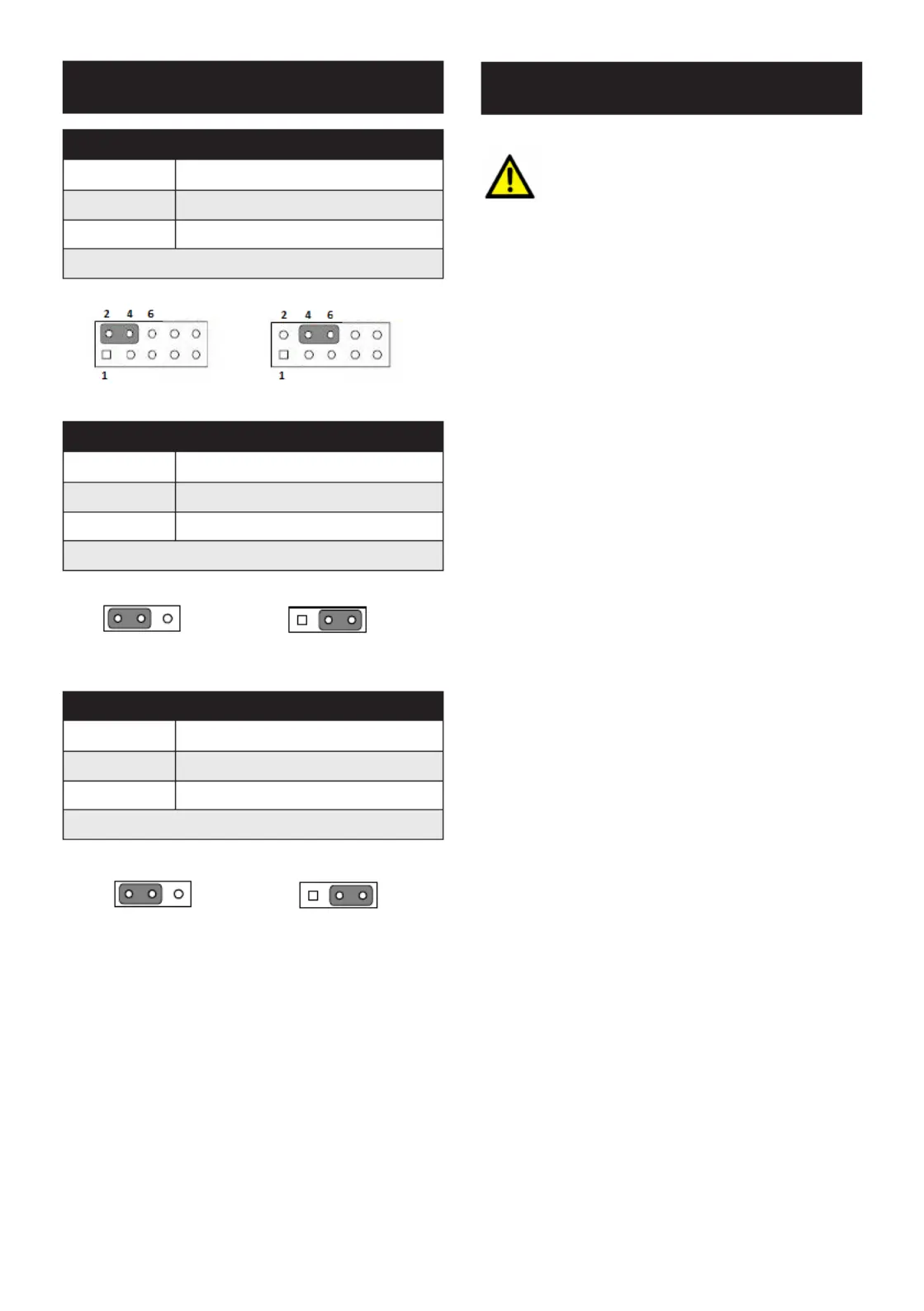

AIMB-785 Startup Manual 3
JWDT1: Watchdog Timer Output Option
Closed Pins
Result
2-4 NC
4-6 System reset*
* Default
PSON1: ATX, AT Mode Selector
Closed Pins
Result
1-2 AT Mode
2-3 ATXMode*
* Default
JUSB
Closed Pins
Result
1-2 *USB +5V_DUAL Power
2-3 USB +5V Power
* Default
Caution! The computer is supplied with a battery-powered
realtime clock circuit. There is a danger of
explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Discard
used batteries according to the manufacturer’s
instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
Jumpers and Connectors (Cont.)
ATMode1-2closed*ATXMode2-3closed
Declaration of Conformity
NC 2-4 Closed *System Reset 4-6 Closed
*USB +5 V_DUAL Power USB +5 V Power
