Pagina 1/4
AIMB-788E Startup Manual 1
AIMB-788E LGA1700 Intel
®
Core™ i9/i7/i5/i3 ATX
Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, M.2
Startup Manual
Specications (Cont.) Packing List
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for AIMB-788E at:
https://advt.ch/aimb788espt
Register your products on our website and get 2 months
extra warranty for free at:
http://www.register.advantech.com
This manual is for the AIMB-788 series Rev. B1, and all
specications are subject to the datasheet on the ocial
website. The information in this manual is subject to
change without notice.
Part No. 2041788E00
Printed in China
1st Edition
April 2024
• M.2 socket: M.2 socket supports up to PCIe p1-x4 Gen 4
M-Key 2280 type storage devices.
• SATA interface: Four on-board Serial ATA 3.0 connectors
support data transmission rates up to 600 MB/s. All four
SATA 3.0 ports support Advanced Host Controller Inter-
face (AHCI) technology.
• PCIe slot: 2 PCIe x16 Gen 4 expansion slot (1 x Gen5 p1-x8
link, 1 x Gen4 p1-x8 link), 2 PCIe p1-x8 expansion slot (1 x Gen
4 p1-x4 link, 1 x Gen3 p1-x4 link), 2 PCIe p1-x4 expansion slots
(1 x Gen 4, 1 x Gen3, only 1 Gen4 on the AIMB-788E-1
version), 1 PCIe p1-x1 Gen4 expansion slot.
• USB 3.2/2.0: 6 USB 3.2 Gen 1 ports (4 rear, 2 via
header), 7 USB 2.0 ports (4 rear, 2 via header, 1 internal
Type-A).
• Serial port: Six serial ports: COM1, COM2 and COM4 ~
6 are RS-232; COM3 is RS-232/422/485 with jumper and
BIOS menu options.
• SPI interface: Advantech-designed SPI connector sup-
ports optional dTPM 2.0 module.
• Watchdog timer: 255 timer level intervals.
Graphics Interface
• Chipset: CPU integrated graphics controller.
• Display memory: 1 GB maximum shared memory with 2
GB and above system memory installed.
• DisplayPort: Resolution up to 4096 x 2304 @ 60 Hz
refresh rate.
• HDMI: Resolution up to 3840 x 2160 @ 30 Hz refresh
rate.
• VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.
Ethernet Interface
• Interface: 10/100/1000 Mbps.
• Controller: LAN1: Intel
®
I219-LM; LAN2: Intel
®
I210-AT.
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12” x 9.6”)
• Power consumption: Intel® Core™ i 65W; DDR5 32
GB x 4
Maximum: +3.3 V at 1.54 A, +5 V at 1.96 A, +12 V at 0.07
A, +5 Vsb at 0.08 A, -12 V at 0.04 A, -5 V at 0.01 A
• Operating temperature: 0 ~ 60°C (depending on CPU
loading and thermal solution)
• Weight of board: 0.7 kg (1.54 lb)
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x AIMB-788E motherboard
• 1 x AIMB-788E startup manual
• 2 x Serial ATA HDD data cables
• 1 x I/O port bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Standard Functions
• CPU: LGA1700 socket supporting 12th/13th/14th Gen
Intel
®
Core™ i9/i7/i5/i3/Pentium®/Celeron® processors.
• BIOS: AMI 256 Mbit SPI BIOS
• Chipset: Intel
®
Q670E PCH
Note: Legacy platforms are not supported.
• System memory: Up to 192 GB in four 288-pin DIMM
sockets, supporting dual-channel DDR5 4400 SDRAM.
AIMB-788E supports non-ECC unbuered DIMMs and
only AIMB-788E-XR version supports any memory
conguration that mixes non-ECC with ECC unbuered
DIMMs.
Specications
2 AIMB-788E Startup Manual

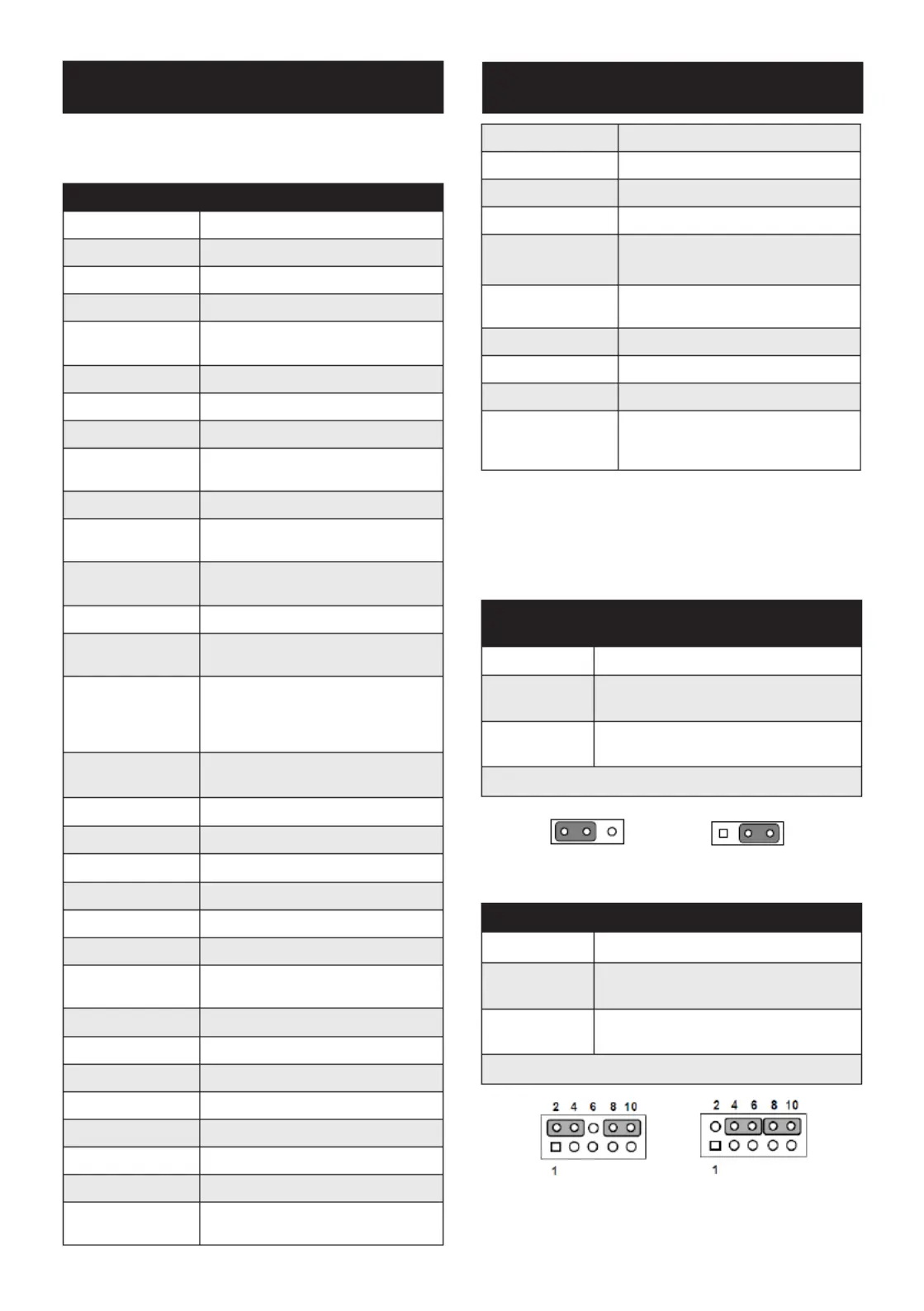

The board has a number of jumpers that allow you to con-
gure your system to suit your application. The table below
lists the function of each jumper and connector.
Connector/Jumper List
Label Function
LAN1 ~ LAN2 GbE LAN
USB3C1 USB 3.2 Gen 1 port *2
USB3C2 USB 3.2 Gen 1 port *2
USB3H1
USB 3.2 Gen 1 port *2
(20-pin header)
USB2C1 USB 2.0 port *4
USB2A1 USB 2.0 port (internal Type-A)
USB2H1 USB 2.0 port *2 (10-pin header)
COM1+VGA1
Serial port: RS-232 (DB-9 connec-
tor)/VGA connector
DP1+HDMI1 DP connector/HDMI connector
COM2,
COM4 ~ COM6
Serial port: RS-232 (9-pin header)
COM3
Serial port: RS-232/422/485 (9-pin
header)
CPUFAN1 CPU fan connector (4-pin)
SYSFAN1 ~
SYSFAN3
System fan connector (4-pin)
JFP3
Power LED
Suspend: fast ash (ATX/AT)
System on: on (ATX/AT)
System o: o (ATX/AT)
JFP2
External speaker/HDD LED connec-
tor/SMBus connector
JFP1 Power switch/reset connector
AUDIO1+AUDIO2 Audio connector (Line Out, Mic In)
VOLT1 Alarm board power connector
JCASE1 Case open connector
LANLED1 Front panel LAN indicator connector
NVME1 M.2 2280 M-Key socket
NVME2
M.2 2280 M-Key socket (Only on the
AIMB-788E-1 version)
SATA4 ~ SATA7 Serial ATA 3.0 port
PCIE1 PCIe x16 slot (x8 Gen 5 link)
PCIE2 PCIe p2-x1 slot (x1 Gen 4 link)
PCIE3 PCIe p2-x8 slot (x4 Gen 4 link)
PCIE4 PCIe x16 slot (x8 Gen 4 link)
PCIE5 PCIe p2-x4 slot (x4 Gen 4 link)
PCIE6 PCIe p2-x8 slot (x4 Gen 3 link)
PCIE7
PCIe p2-x4 slot (x4 Gen 3 link, only on
the AIMB-788E-0 version)
DIMMA1 Channel A DIMM1
DIMMA2 Channel A DIMM2
DIMMB1 Channel B DIMM1
DIMMB2 Channel B DIMM2
ATX12V1+
ATX12V2
ATX 12 V auxiliary power connector
(for CPU)
EATXPWR1
ATX 24-pin main power connector
(for system)
SPDIF_OUT1 SPDIF audio out pin header
GPIO1 8-bit GPIO from super I/O
SMBUS1 SMBus connector from PCH
SPI_TPM1
SPI (Serial Peripheral Interface)
connector for Advantech dTPM 2.0
module.
Note: The PCIE1&PCIE4 slots can only support graph-
ics cards and storage cards according to the
specication recommended by Intel. Other types
of add-on cards might not work properly. For the
compatible device list validated on the PCIe x16
slot, please refer to the user manual.
JCMOS1: CMOS clear data
JME1: Intel® ME update
Closed Pins Result
1-2
*Keep CMOS data
*Enable ME update
2-3
Clear CMOS data
Disable ME update
* Default
*Keep CMOS data Clear CMOS data
*Enable ME update Disable ME update
JWDT1+JOBS1: Watchdog timer output and OBS alarm
Closed Pins
Result
2-4, 8-10
Watchdog timer disable (2-4)
OBS beep (8-10)
4-6, 8-10
*Watchdog timer reset (4-6)
OBS beep (8-10)
* Default
Watchdog timer disable (2-4) *Watchdog timer reset (4-6)
OBS beep (8-10) OBS beep (8-10)
123
123
Jumpers and Connectors
Jumpers and Connectors (Cont.)
AIMB-788E Startup Manual 3

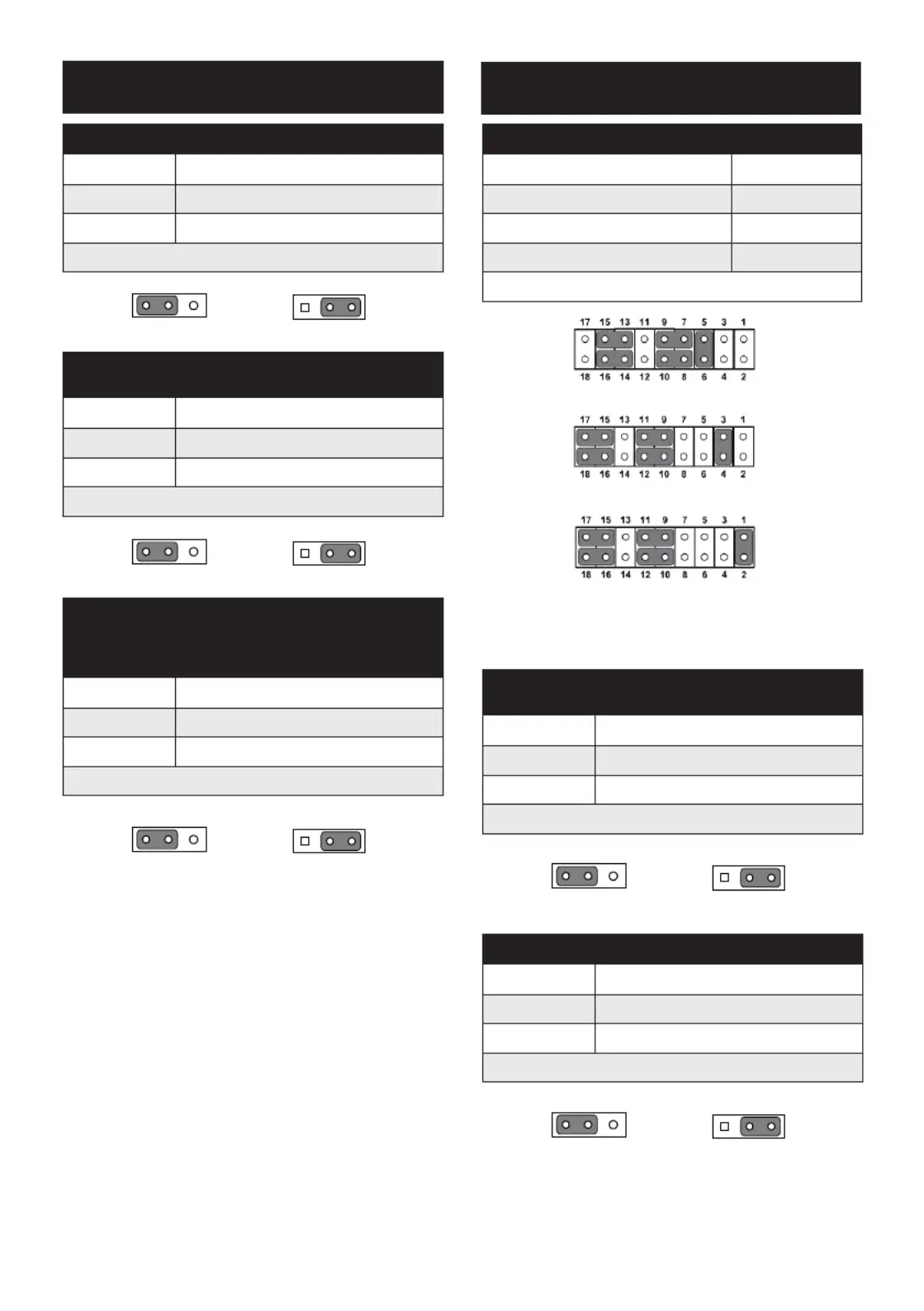

PSON1: ATX/AT mode selection
Closed Pins
Result
1-2 AT mode
2-3 *ATX mode
* Default
AT mode *ATX mode
JUSB_2 (onboard USB): USB power source switch
between +5V and +5V_DUAL
Closed Pins
Result
1-2 *USB +5V_DUAL power
2-3 USB +5V power
* Default
*USB +5 V_DUAL power USB +5 V power
SMB1 (clock), SMB2 (data): PCIe SMBus connection
setting for PCIE2~PCIE5 slots
SMB3 (clock), SMB4 (data): PCIe SMBus connection
setting for PCIE1 slot
Closed Pins
Result
1-2 *Enable PCIe SMBus connection
2-3 Disable PCIe SMBus connection
* Default
*Enable PCIe SMBus connection Disable PCIe SMBus connection
Note: SMB1+SMB2 or SMB3+SMB4 jumpers should
be switched to the same setting, either 1-2
closed or 2-3 closed.
123
123
123
123
123
123
JSETCOM3: COM3 RS-232/422/485 jumper settings
Closed Pins
Result
5-6, 7-9, 8-10, 13-15, 14-16 *RS-232
3-4, 9-11, 10-12, 15-17, 16-18 RS-422
1-2, 9-11, 10-12, 15-17, 16-18 RS-485
* Default
Note: BIOS setting change is necessary if RS-422 or
RS-485 is selected. Please refer to Chapter 3 of
the user manual for further settings.
JT1 (TX signal), JR1 (RX signal): COM3 RS-422/485
termination resistor
Closed Pins
Result
1-2 Disable termination
2-3 *Enable termination
* Default
Disable termination *Enable termination
JFV1: VGA dummy load setting
Closed Pins
Result
1-2 Enable VGA dummy load
2-3 *Disable VGA dummy load
* Default
Enable VGA dummy load *Disable VGA dummy load
Note: It is recommended to leave this function disabled
if you use DVI/DP as your main display.
*RS-232
RS-422
RS-485
123
123
123
123
Jumpers and Connectors (Cont.)
Jumpers and Connectors (Cont.)
