Got questions or need a repair?
Email help@walrusaudio.com to talk with a real live human about your Walrus gear!
This product comes with a limited lifetime warranty.
Click Here for more info.
Thank you for trusting us to provide your pedals and modelers with clean, quiet isolated power. The Canvas
Power series is built using modern switch mode supply architectures. This means each output is isolated,
highly efficient, and heavily filtered, ensuring they supply plenty of power with incredibly low noise.
Our goal with Canvas Power is to bring simplicity and modularity to power your pedals.Rest easy knowing
your pedals are taken care of as your collection grows. Canvas Power is ready to travel the globe with its
world-wide voltage-compatible DC brick. Just be sure to pack your country’s appropriate IEC cable right
next to your toothbrush.

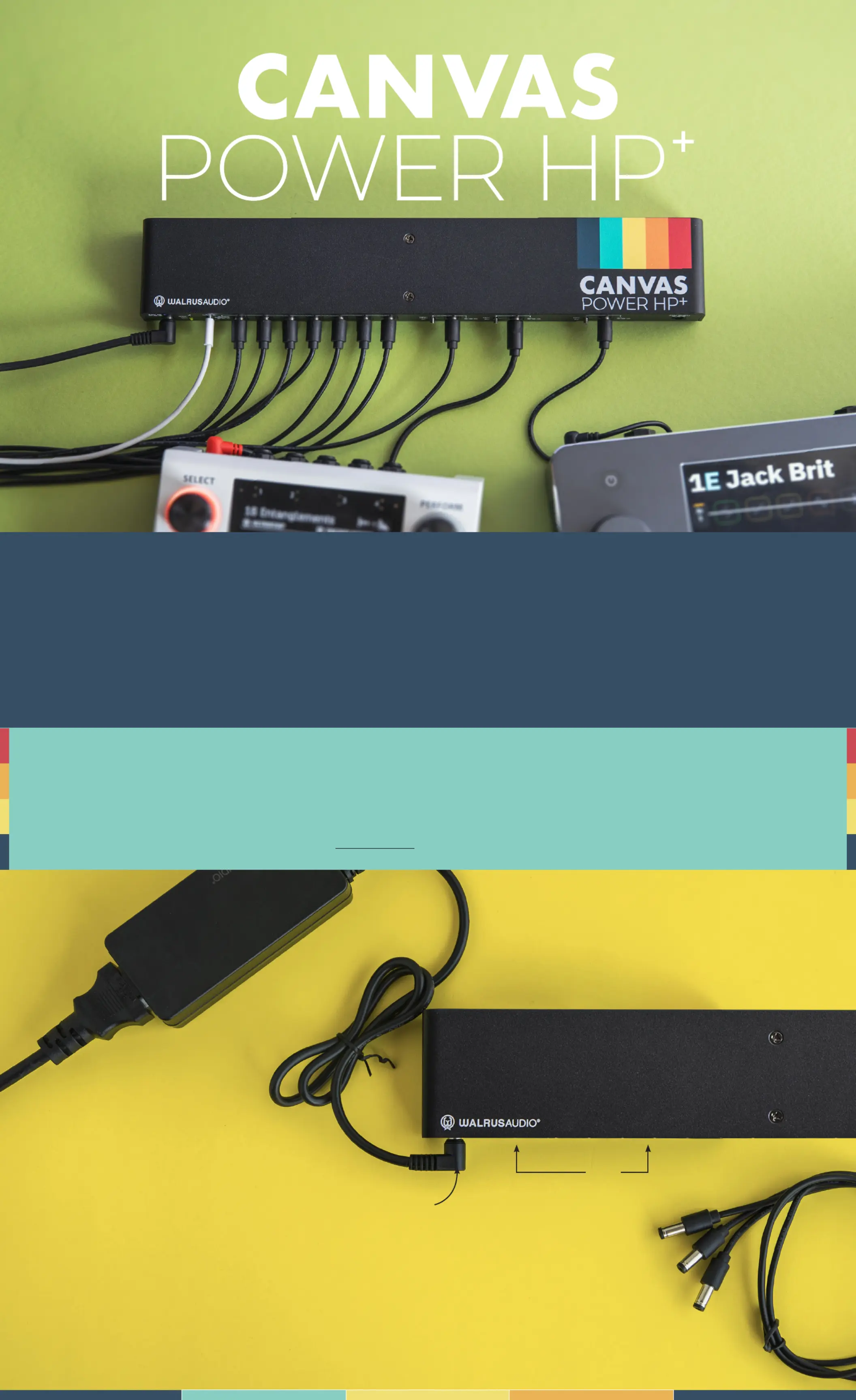

First, wire up your board by connecting your pedals to the appropriate
power outputs. Next, connect the DC Brick cable to the 24V DC Input.
Finally, connect the IEC cable to the DC Brick to power your pedals.
IEC CABLE
DC BRICK
DC BRICK
CABLE
24V INPUT
POWER OUTPUTS.
GETTING STARTED
3
rd
2
nd
1
st
In addition to the 3A outputs, the HP Plus has seven outputs rated at 9VDC, 500mA
and one variable output with 9/12/18V. This means they can power a wide variety
pedals on the market. Before connecting, be sure to check your pedal’s voltage,
polarity, and required current.
Note: We recommend connecting all of your pedals before powering on your
power supply.
The LED indicators above each output will light up, indicating the DC cable is plugged
in and is making a solid connection.
Before connecting, verify its voltage requirements and set the toggle switch accordingly (no
one wants a fried pedal). Then, plug in the DC cable.
• The two will always deliver up to 3A (3,000mA) in both 9V and 12V positions.3A ports
• The mA delivery depends on what position the switch is in:variable output port
18V will deliver up to 250mA
12V will deliver up to 375mA
9V will deliver up to 500mA

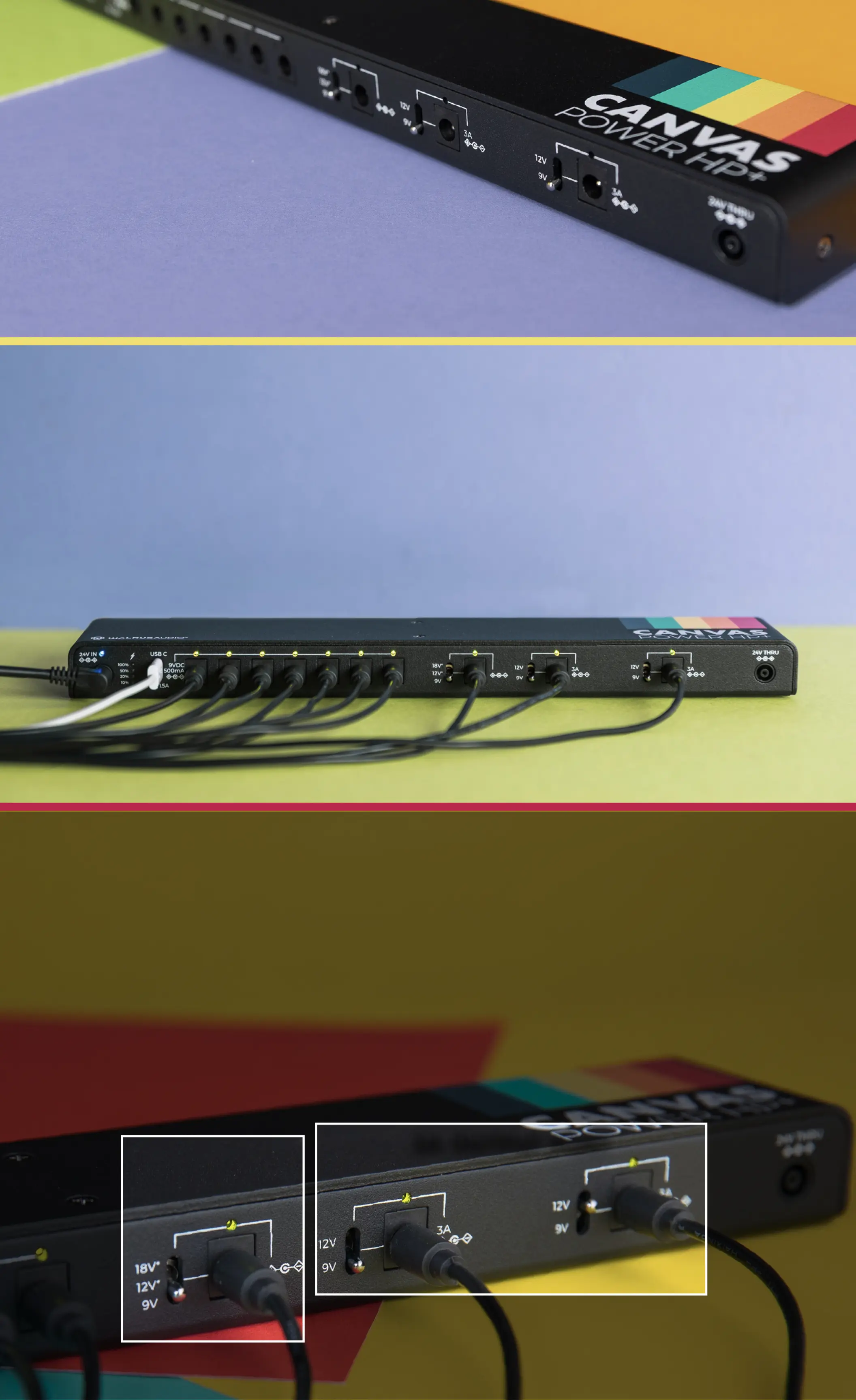

VOLTAGE SELECTION
The Power HP Plus is equipped with two high
powered 3A center negative outputs with a 12 or 9V
selector switch to safely power hungry modelers like
the Quad Cortex, HX Stomp, Headrush, H90, and more.
VARIABLE
OUTPUT PORT
3A OUTPUT PORT
When expanding your system, we recommend
connecting the largest unit to the DC Brick. When
linking additional Canvas Power units, always
reference the power meter on the unit connected
to the DC Brick.

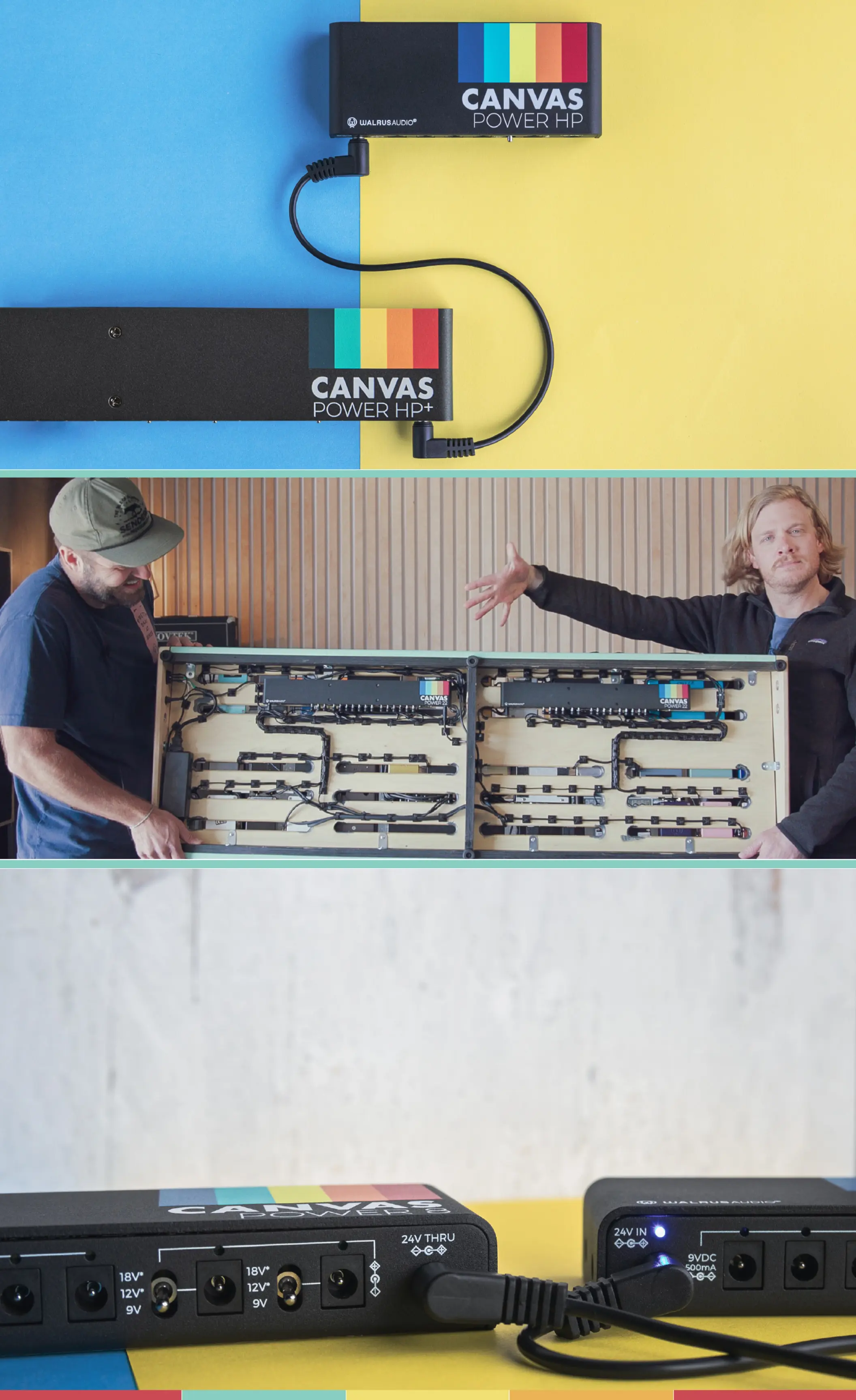

With the 24V Link Output,
you can connect up to two
additional Canvas Power
devices.
LINKING
POWER
The Power HP, 5, and 8 include a 48W, 24VDC power brick. If you need to link
multiple power supplies together that require more than 48W of total power, we
recommend using the 96W brick (included with Power 15, 22, and HP Plus).
To estimate how much power your pedal board will need, do this calculation for each
pedal, then add up the results to get the estimated total wattage required by your board.
Multiply the pedal’s voltage requirement by its current draw.
Voltage(V) x Current(A) = Power(W)
Example: The Slö Reverb requires 9VDC and 100mA (0.1A) current draw, so
9VDC x 0.1A = 0.9 Watts.
WANT TO GET REALLY TECHNICAL?
Want to bring all 44 of your pedals
for your weekend fly rig? Slap
a couple Power 22s under your
board and you’re good to go.
