ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0449 / W0450
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
1. Unscrew the four set screws (A). Remove the mounting plate from the backplate.
2. Fix the mounting plate to the wall.
2a. For cement and drywall material:
Hold the mounting plate to the outlet box and mark the outermost set holes on the wall surface for drilling.
Remove the mounting plate from the outlet box. Drill two holes. Thread the anchors (E) into the holes,
and then attach the mounting plate to the outlet box by using two mounting screws (B). Secure the drywall
screws (D) through the set holes into the anchors (E).
2b. For wooden material:
Attach the mounting plate to the outlet box by using two mounting screws (B), and then secure the drywall
screws (D) through the set holes to the wall.
Turn off the power at fuse or circuit box.
Set Screw (A)Mounting Screw (B)Wire Connector (C)Anchor (E)Drywall Screw (D)
Page 1 / 2

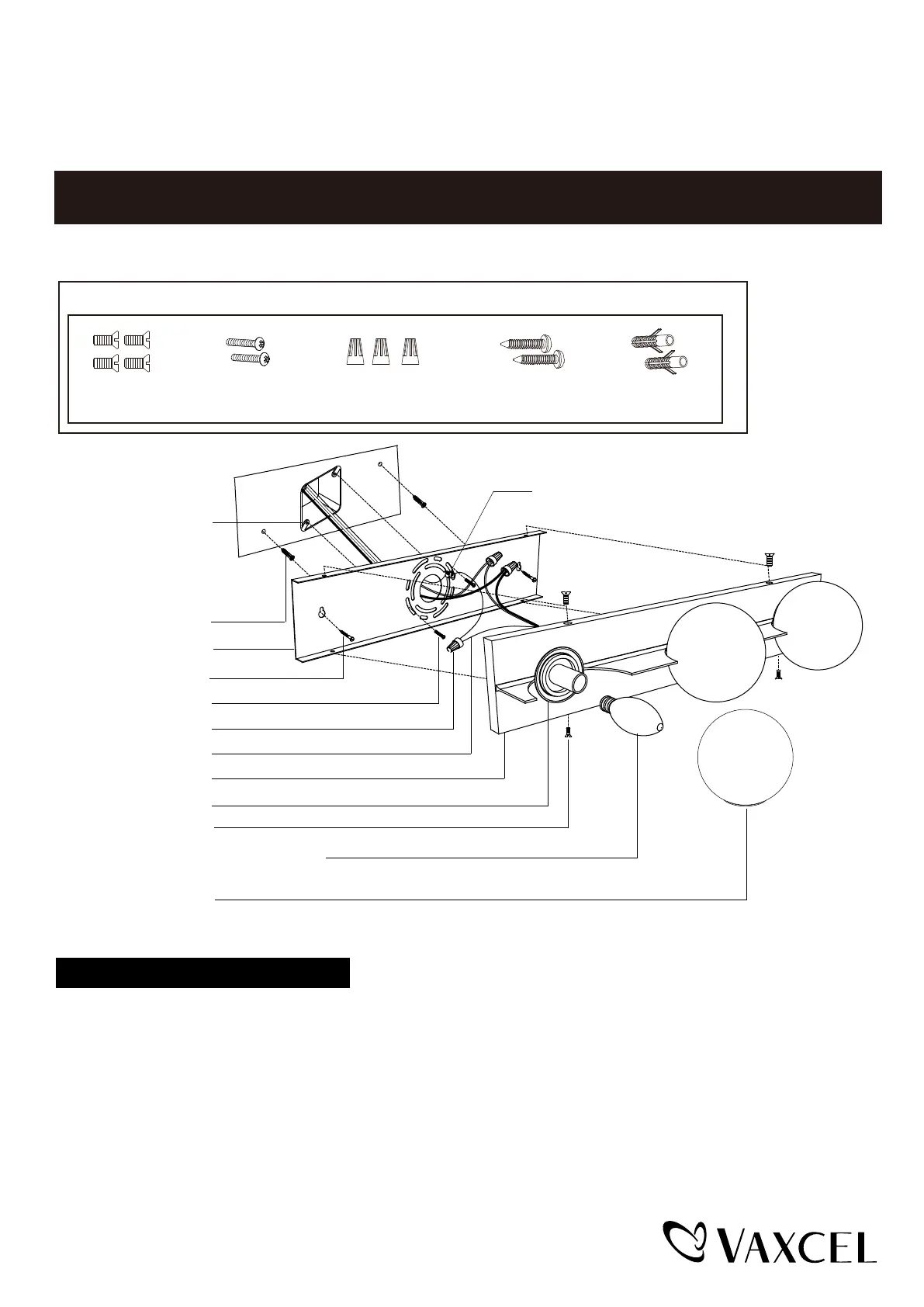

Installation Steps
231116
Outlet Box
Anchor (E)
Drywall Screw (D)
Mounting Screw (B)
Wire Connector (C)
Fixture Ground Wire
Backplate
Glass Holder
Set Screw (A)
Max. 40W Candelabra base bulb
(not included)
Glass Shade
Mounting Plate
Green Ground Screw
