Fixture Mounting Screw (D)
Green Grounding Screw (B)
Page 1 / 2
230331
Max. 60W Medium Base bulb
(not included)
1
. Attach mounting plate unit (A) to the outlet box using two
mounting screws (B).
2. Attach the long threaded pipe (E) to coupling.
3. Slip the plastic plate and decorative cup (G) up through
the long threaded pipe (E), and then secure them with
the finial (H).
NOTE: The depth of hex nut in long threaded pipe
may need to be adjusted to properly fit the acrylic
diffuser. The acrylic diffuser should be flatly laid on
three brackets, and the frosted side of the acrylic
diffuser should be faced down.
4. Install 4 x 60W Max. medium base bulbs (not included).
Check relamping label at socket area or packaging for
maximum wattage allowed.
5. Rod Connections:
a. Thread the fixture wire from the fixture through the
lower rod, and then secure the lower rod onto fixture
using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then
the middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then
the upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 15-3/4" to 69-3/4". Use fewer rods if shorter length is desired.
6.
Thread the fixture wire through the canopy kit, and then secure the rod assembly to the set threaded
pipe of the canopy kit.

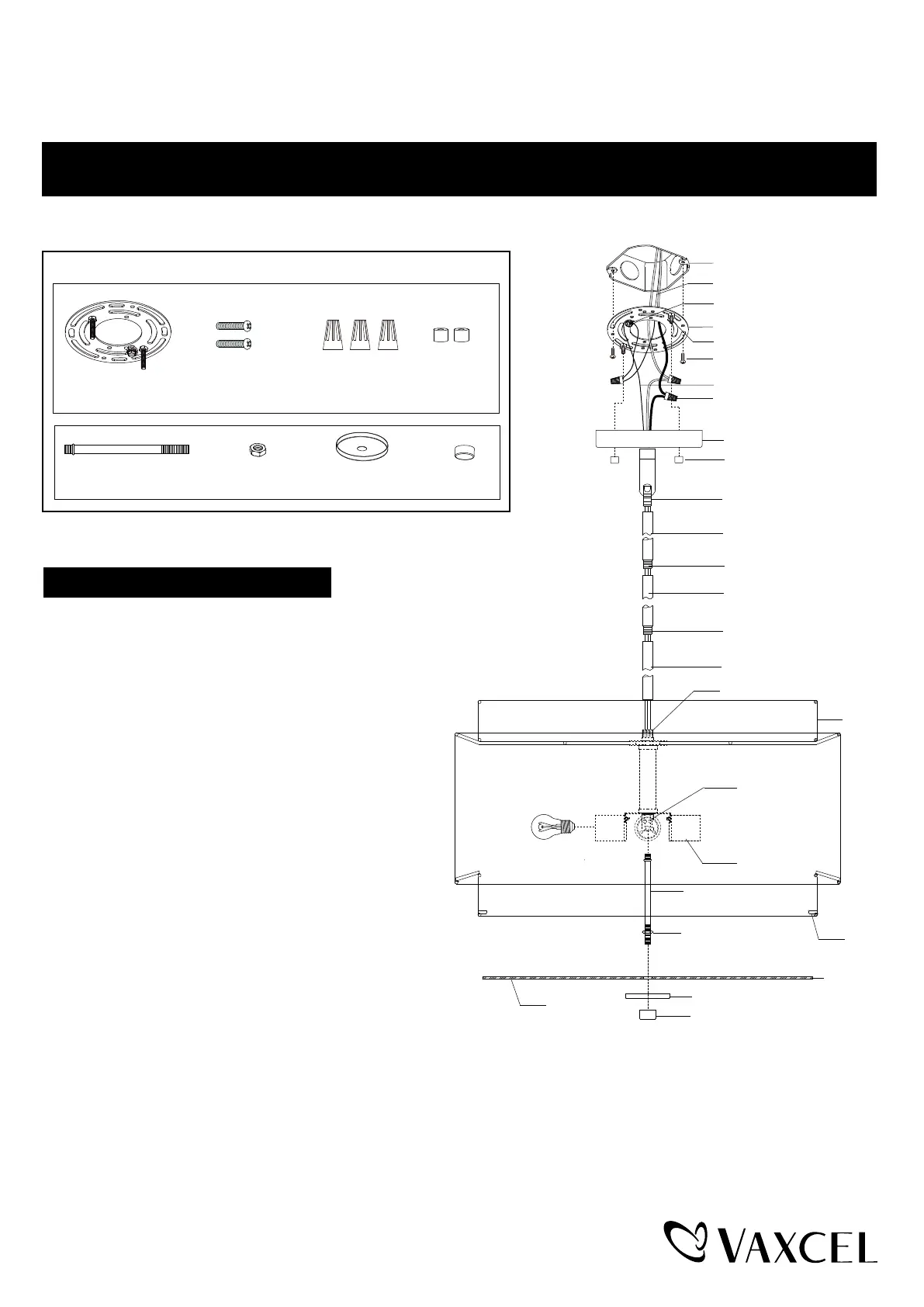

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0192
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Canopy Kit
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Socket
Coupling
Hex Nut (F)
Long Threaded Pipe (E)
Decorative Cup (G)
Finial (H)
Acrylic Diffuser
Frosted Side
Fabric Shade
Set Threaded Pipe
Bolt Nut (D)
Hex Nut (F)
Long Threaded Pipe (E)
Decorative Cup (G)
Finial (H)
Bracket
Mounting Screw (B)
Wire Connector (C)Bolt Nut (D)
Mounting Plate Unit (A)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
