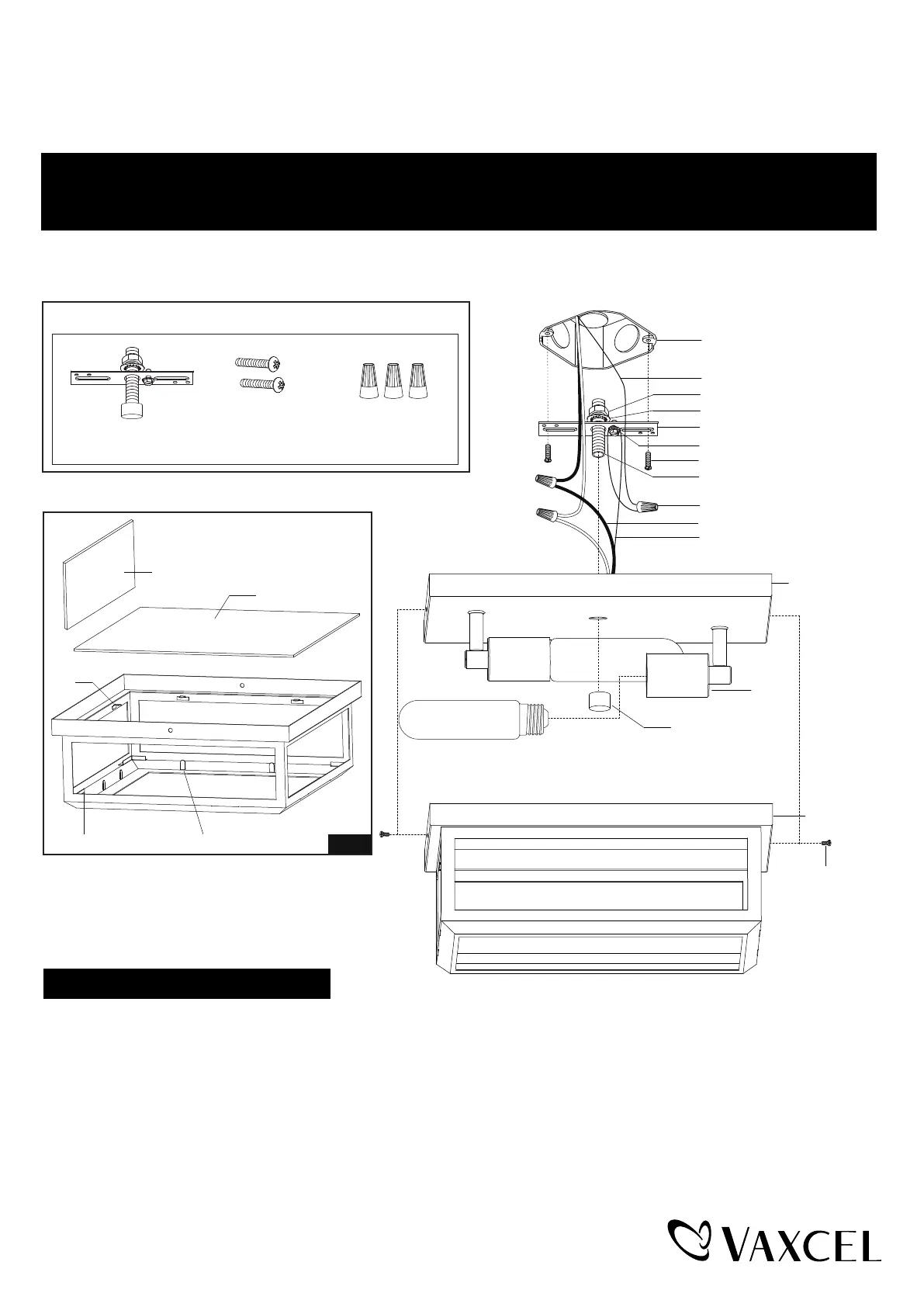

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0611 / T0709
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B)Wire Connector (C)Mounting Strap Unit (A)
Turn off the power at fuse or circuit box.
Installation Steps
Fig.1
Bottom Glass Panel
Bottom Clip
Bottom Notch
Top Clip
Side Glass Panel
1. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B).
2. Remove two set screws to separate the metal frame from the ceiling pan.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with the green ground screw.
Then, depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
Ceiling Pan
Socket
Finial
Metal Frame
Max.60W Bulb
(not included)
Mounting Screw (B)
Green Ground Screw
Wire Connector (C)
House Ground Wire
Fixture Ground Wire
Outlet Box
Fixture Wire
Threaded Pipe
Mounting Strap Unit (A)
Hex Nut
Washer
Set Screw
Page 1 / 2
230425
