181010

Lock Nut (E)

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

1. Thread two headless screws (D) through the cross bar (A), and then secure them with four lock nuts (E).

Adjust the length of the headless screws (D) if necessary.

Note: Make sure that the headless screws are lined up horizontally to make the fixture level.

2. Attach the cross bar

(A)

to the outlet box by using two mounting screws (B).

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (F) as follows:

---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

---Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar (A) with the green

grounding screw (C), and then connect it to the house grounding wire with the wire connector (F).

Carefully put the wires back into the outlet box.

Green Grounding Screw (C)

Outlet Box

Wire Connector (F)

Headless Screw (D)

Cross Bar (A)

Lock Nut

(E)

House Grounding Wire

Fixture Grounding Wire

Fixture Wire

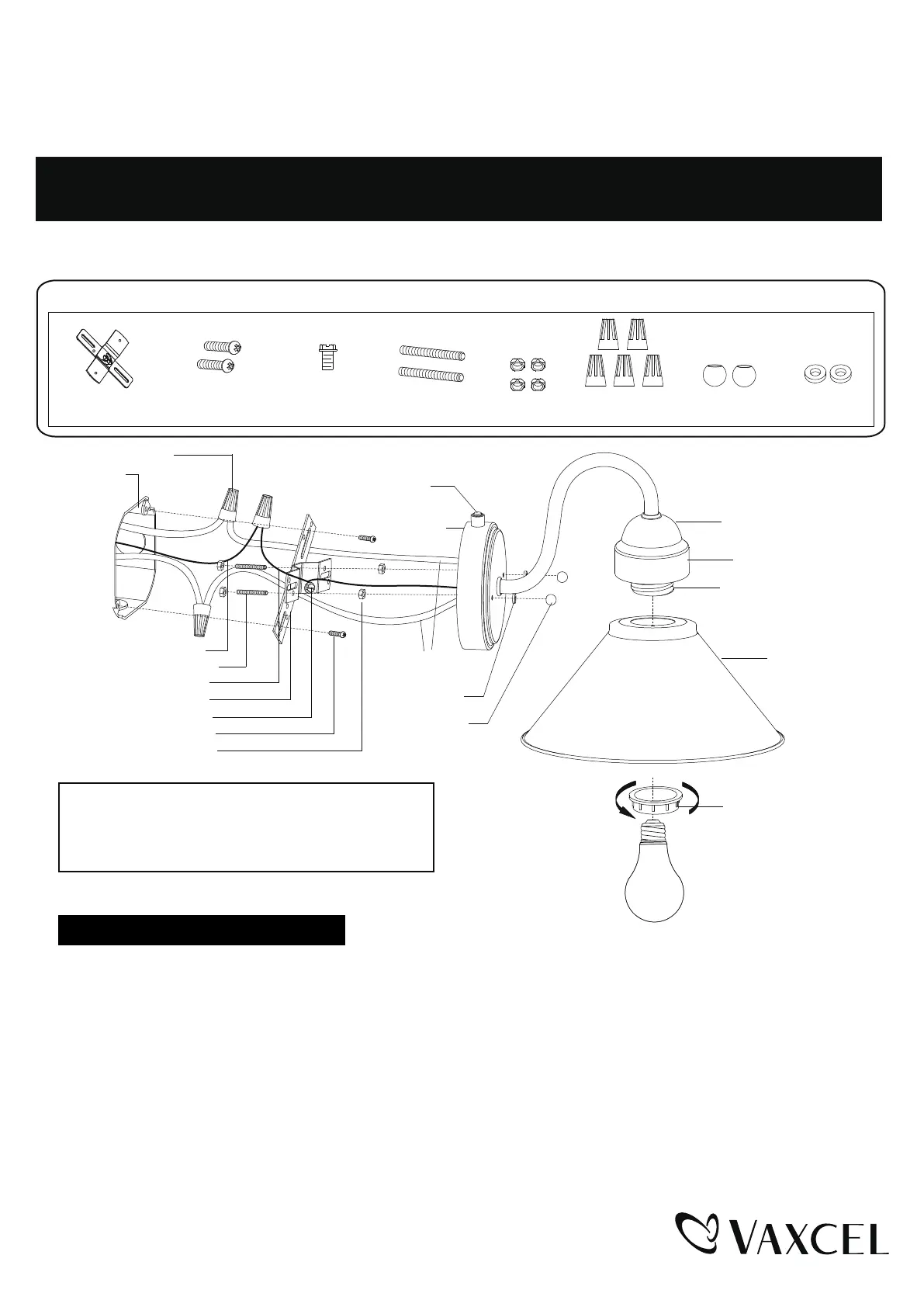

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0350 T0494

Mounting Screw (B)

Mounting Screw (B)

Wire Connector (F)

Ball Nut (G)

Rubber Pad (H)

Cross Bar (A)

Bulb Type A Max.60W

(not included)

Ball Nut(G)

Rubber Pad(H)

Fixture

Shade

Socket

Holder

Socket Ring

Photocell

Back Plate

Hardware Package (included):

Headless Screw (D)

Green Grounding

Screw (C)

Turn off the power at fuse or circuit box.

Installation Steps

IMPORTANT:

The sensor has an excellent photocell function

to enable the light to turn on at dusk and off at

dawn automatically.
