Backplate

Bolt Nut (D)

Rubber Pad (E)

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

T0376

Warning:LED electronics can be damaged by electro static discharge (ESD)shock. Before

installation, discharge yourself by touching a grounded bare metal surface to remove this

hazard. To avoid damage, do not touch the LED module.

Glass

Glass Holder

Bolt Nut-1

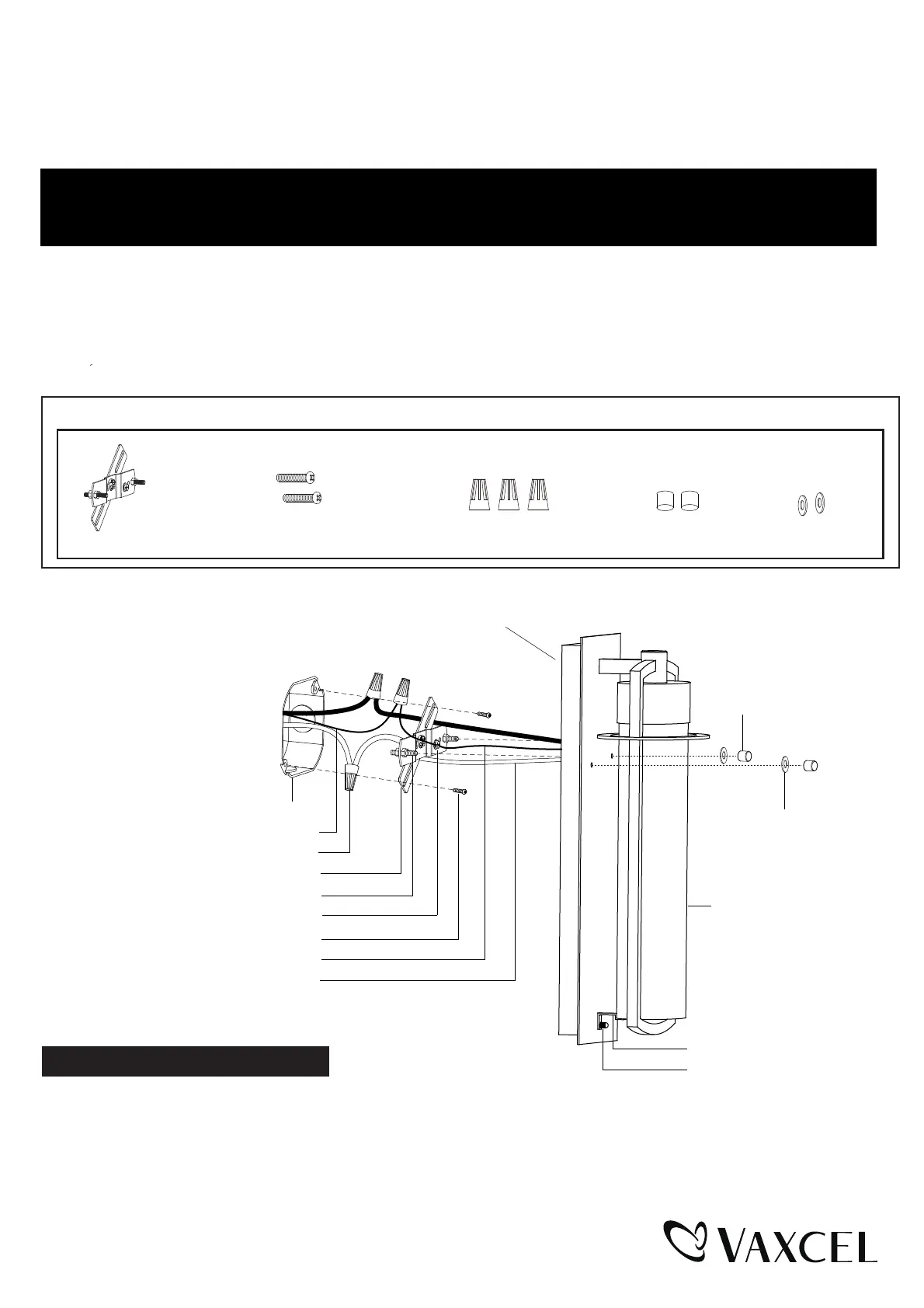

1. Unscrew the two bolt nuts (D), remove the two rubber pads (E) from the crossbar unit (A).

2. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the

preinstalled headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally to make the fixture level.

Turn off the power at fuse or circuit box

Installation Steps

W

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)

Rubber Pad (E)

Crossbar Unit (A)

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Headless Screw

Crossbar Unit (A)

Fixture Wire

Fixture Ground Wire

Page 1 / 2
