ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Hardware Package (included):
Mounting Screw (B)Wire Connector (C)Bolt Nut (D)
Rubber Pad (E)
Crossbar Unit (A)
T0369 / T0372 / T0484 / T0488
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
Installation steps
Turn off the power at fuse or circuit box.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
1. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B).
Adjust the length of the preinstalled fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
IMPORTANT:
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.

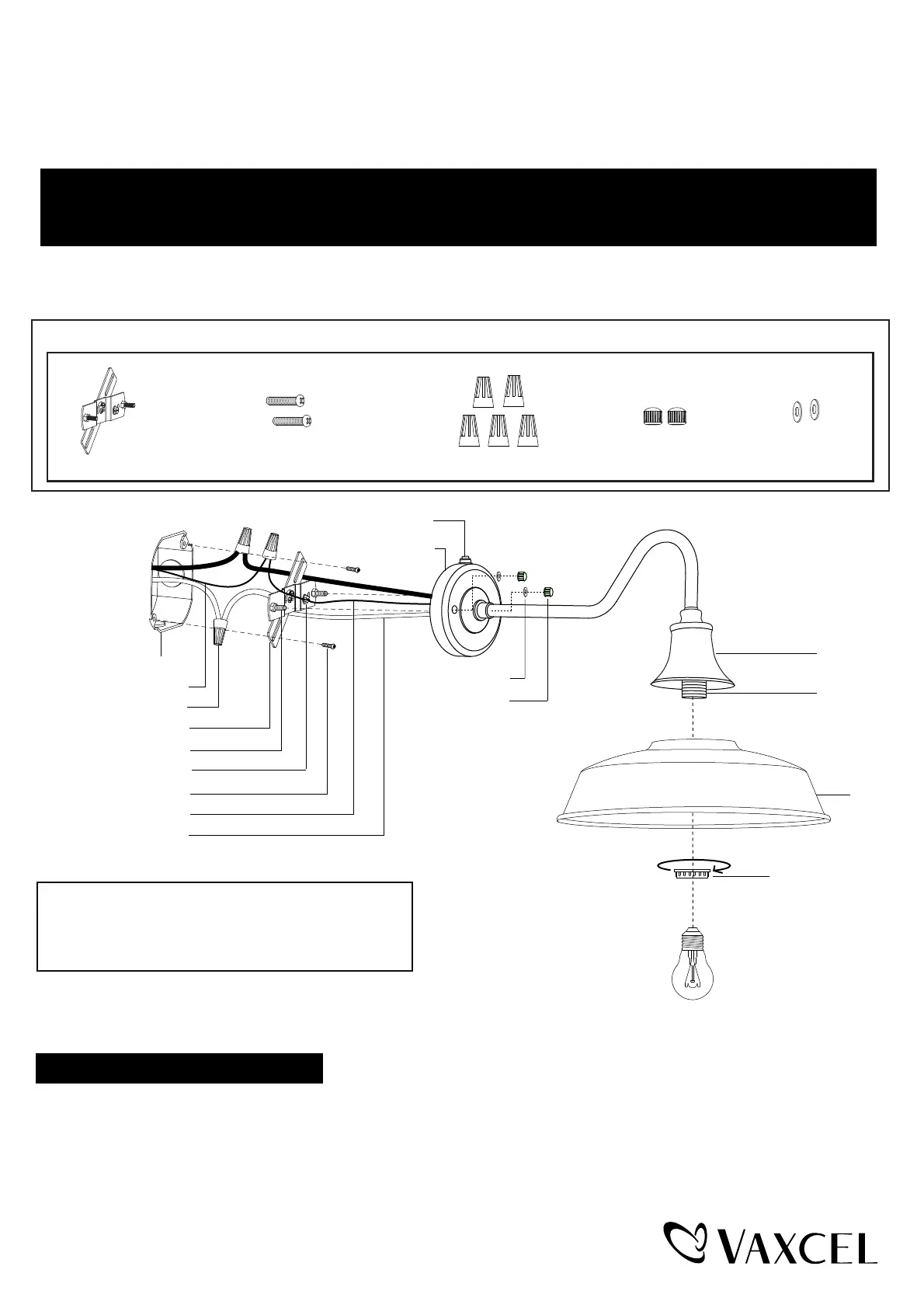

Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Fixture Mounting Screw
Crossbar Unit (A)
Fixture Wire
Fixture Ground Wire
Backplate
Photocell
Bolt Nut (D)
Rubber Pad (E)
Max. 60W Type A Bulb
(not included)
Fixture
Socket
Shade
Socket Ring
