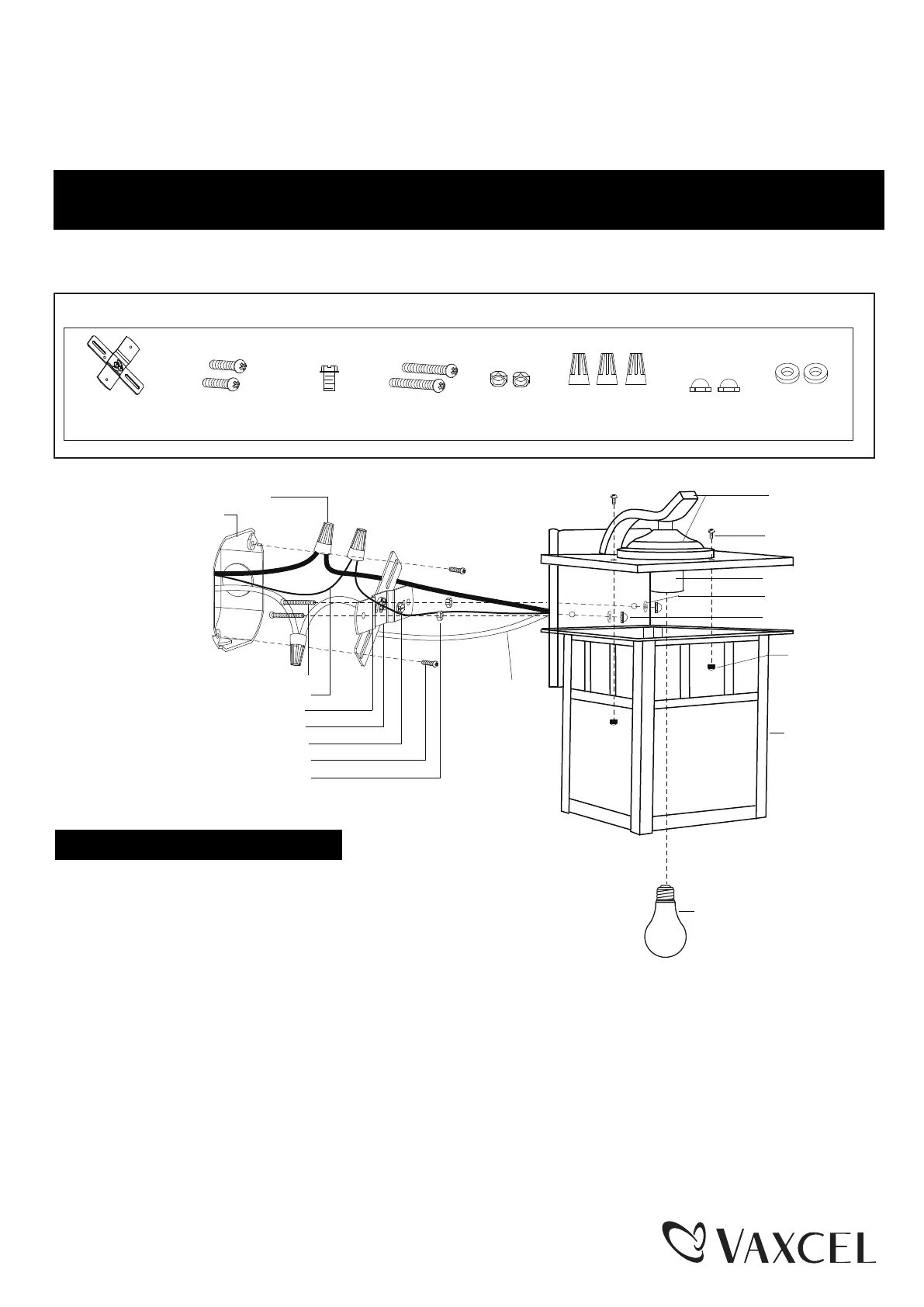

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

.stnemeriuqer gnidnuorg dna gniriw rof sedoc lacirtcele lacol tlusnoc ,gnillatsni erofeB .1 :SETON

2. READ AND SAVE THESE INSTRUCTIONS.

T0442 T0443

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box

Installation Steps

181010

1. Unscrew the set screws and ball nuts to separate the frame from the fixture.

2. Thread two fixture mounting screws (D) through the cross bar (A), then

secure them with two lock nuts (E).

Adjust the length of the screws if necessary.

3. Attach the cross bar (A) to the outlet box by using two mounting screws (B).

4. Pull out the outlet wires and house grounding wire from the outlet box.

Make wire connections using the wire connectors (F):

---The black wire from the light to the black wire from the power source.

---The white wire from the light to the white wire from the power source.

---Attach the fixture grounding wire to the cross bar (A) with the green grounding

screw (C). Then connect it to the house grounding wire with a wire connector (F).

Carefully tuck the wires back into the outlet box.

5. Attach the back plate to the cross bar (A) by inserting the fixture mounting screws (D),

then secure it with the two rubber pads (H) and ball nuts (G).

Lock Nut (E)

Mounting Screw (B)

Wire Connector (F)

Ball Nut (G)

Rubber Pad (H)

Cross Bar (A)

Green Grounding

Screw (C)

Fixture Mounting

Screw (D)

Set Screw

Socket

Ball Nut

Frame

Fixture

Rubber Pad (H)

Ball Nut (G)

Bulb Type A Max.60W

(not included)

Green Grounding Screw (C)

Outlet Box

Wire Connector (F)

House Grounding Wire

Fixture Mounting Screw (D)

Cross Bar (A)

Fixture Grounding Wire

Fixture Wire

Mounting Screw (B)

Lock Nut (E)
