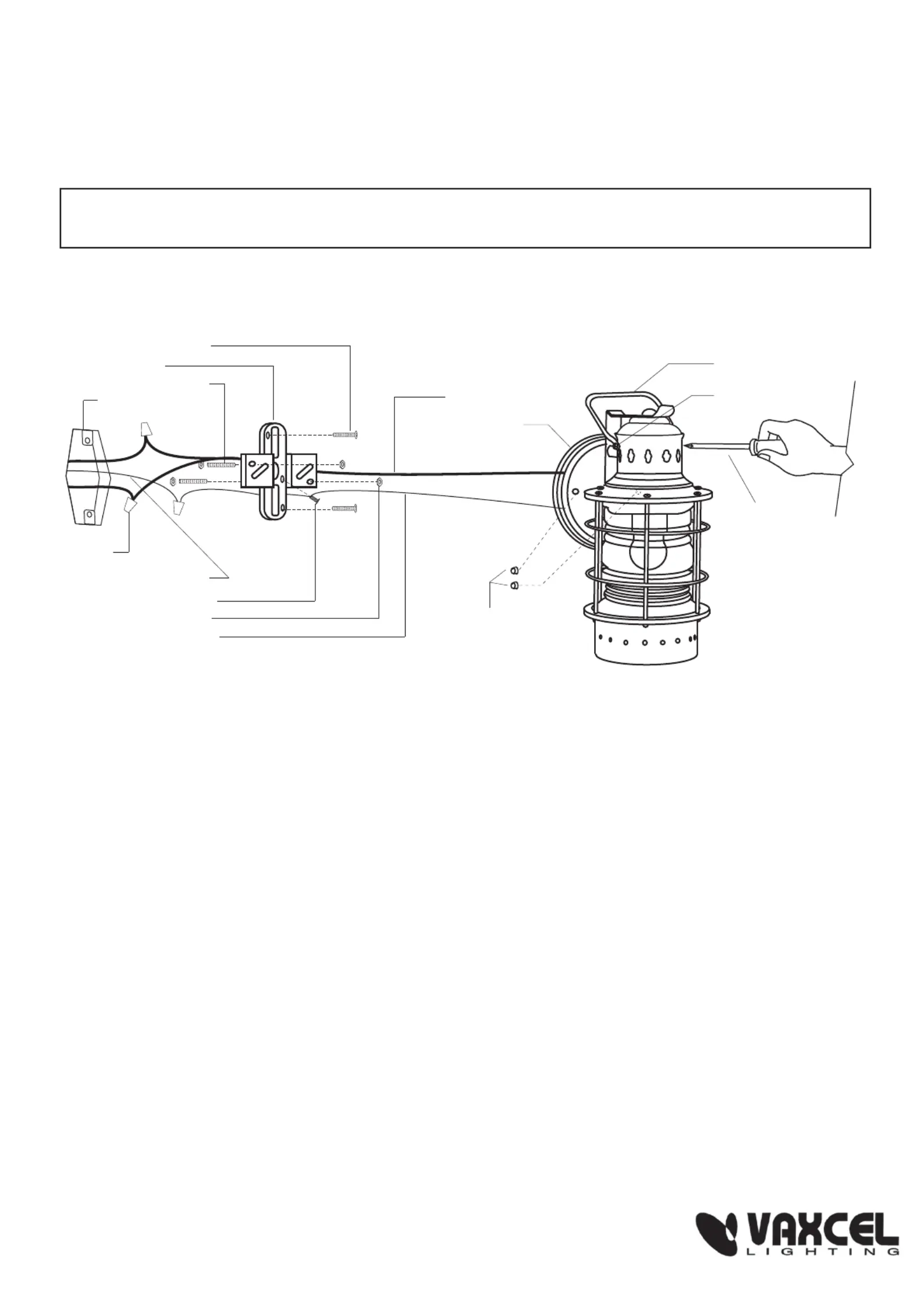

Screw Driver

Handle

Set Screw

Mounting Screw

Headless Screw

Fixture Wire

Lock Nut

Cross Bar

House Grounding Wire

Green Grounding Screw

Fixture Grounding Wire

Wire Nut

Outlet Box

Back Plate

Bolt Nut

1. Thread two headless screws through the cross bar, then secure them with four lock nuts (two on

each side of the cross bar). Adjust the length of the headless screws if necessary.

2. Attach the cross bar to the outlet box by using two mounting screws.

3. Pull out the outlet wires and house grounding wire from the outlet box. Make wire connections

using the wire nuts:

---The black wire from the fixture to the black wire from the power source.

---The white wire from the fixture to the white wire from the power source.

---Attach the fixture grounding wire to the cross bar with the green grounding screw. Then connect

it to the house grounding wire with a wire nut.

Carefully put the wires back into the outlet box.

4. Attach the back plate to the cross bar by inserting the headless screws, then secure it with two bolt

nuts.

CAUTION: With silicone caulking compound, caulk completely around where the back plate

meets with the wall surface to prevent water from seeping into the outlet box.

5. Install a bulb (not included). See relamping label at socket area or packaging for maximum allowed

wattage.

6. Adjust the position of the handle by using screw driver if necessary.

7. Turn on the power at the main fuse or circuit breaker box.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

OW37001 / OW37081

071008

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.
