ASSEMBLY AND INSTALLATION

INSTRUCTIONS

OW21881BBZ / OW21881TB

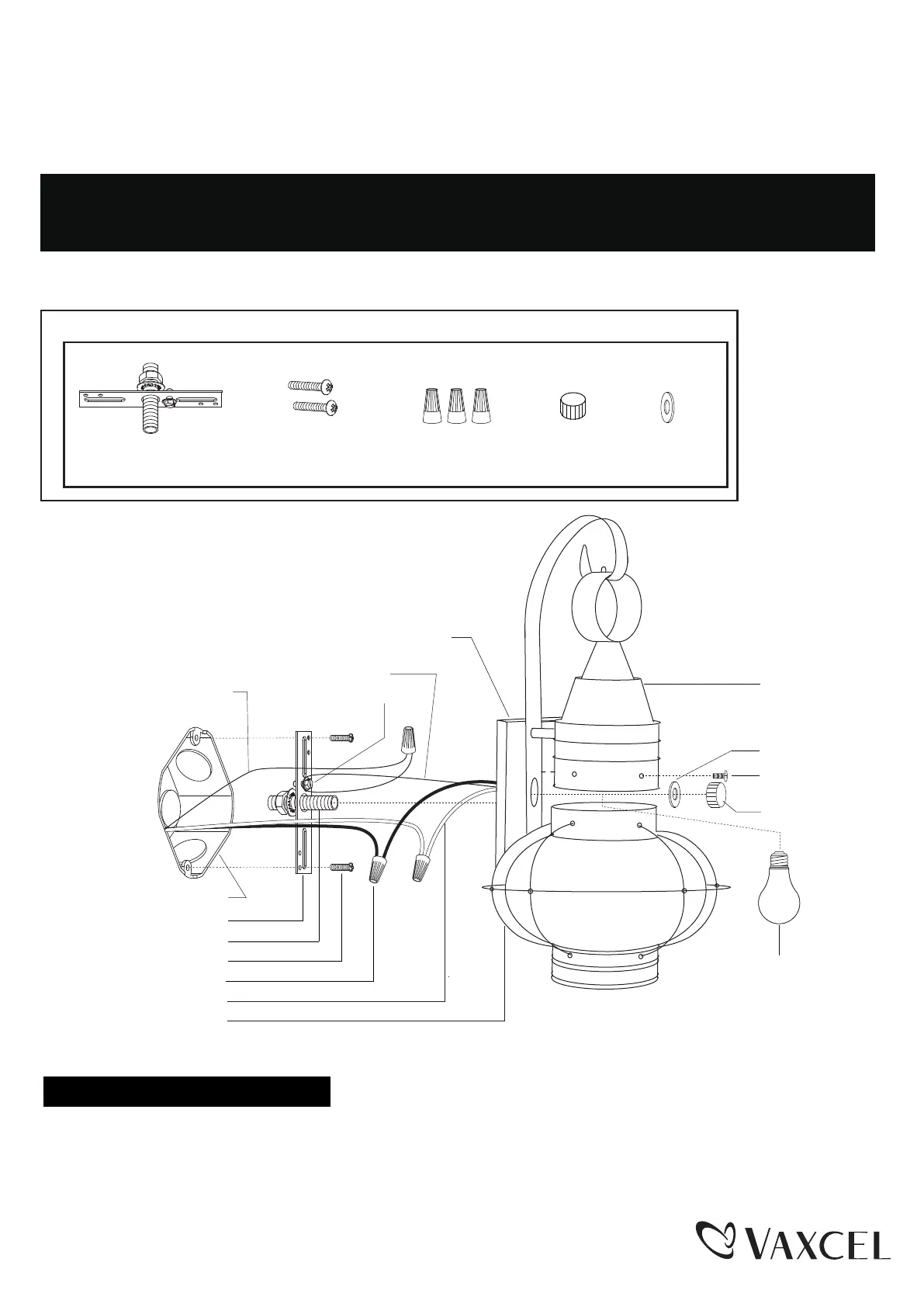

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)End Cap (D)Mounting Strap Unit (A)

Rubber Pad (E)

L SHOCK, BE SURE TO SHUT OFF

TALLING OR SERVICING THIS FIXTURE.

Backplate

Mounting Screw (B)

Fixture Wire

Mounting Strap Unit (A)

Wire Connector (C)

Fixture Ground Wire

Green Ground Screw

Outlet Box

House Ground Wire

Threaded pipe

Frame

Fixture

Set Screw

Rubber Pad (E)

End Cap (D)

Max. 60W Type A Bulb

(not included)

Turn off the power at fuse or circuit box

Installation Steps

1. Unscrew the end cap (D) and remove the rubber pad (E) from mounting strap unit (A).

2. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the

preinstalled threaded pipe if necessary.

Page 1 / 2

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.
