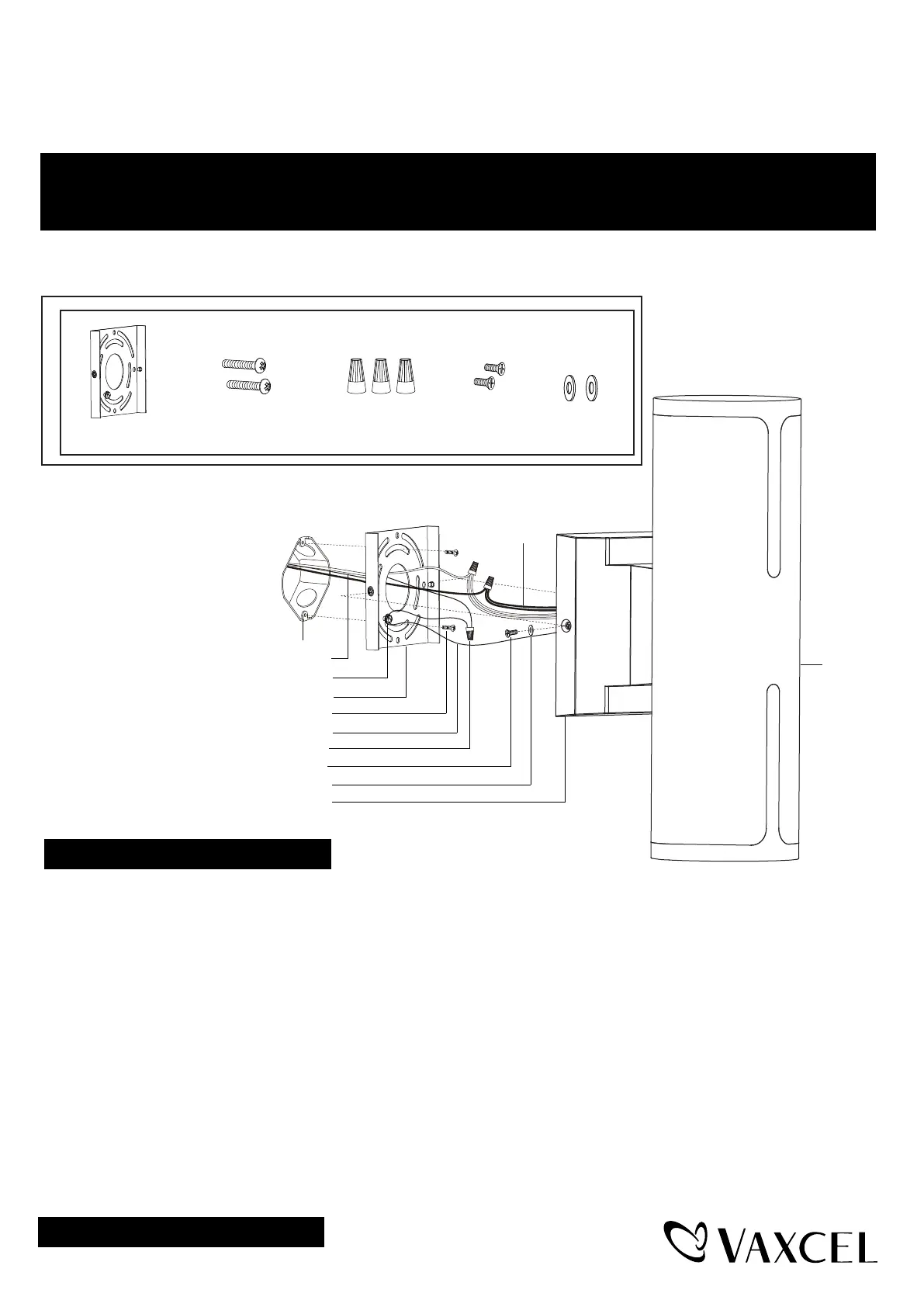

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0768

Set screw (D) Mounting Screw (B)Wire Connector (C)Mounting Plate Unit (A)

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Turn off the power at fuse or circuit box

Installation Steps

1. Unscrew the two set screws (D), remove the two rubber pads (E) and the mounting plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).

Note: Make sure that two set holes are lined up horizontally to make the fixture level.

3. Pull out the source wires from the outlet box. Make wire connections using wire

connectors (C) as follows:

• Connect the hot wires (black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wires (white insulation) from the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with green ground screw,

then depending on local code, connect it to the house ground wire with the wire connector (C).

Carefully put all of the wires back into the outlet box.

4. Attach the backplate of the fixture to the mounting plate unit (A) by aligning holes, secure the two set screws (D)

and the two rubber pads (E) from the side hole of the backplate into the hole of the mounting plate unit (A).

Note: With silicone caulk compound, caulk completely around where the backplate meets with the wall

surface to prevent water from seeping into the outlet box.

Rubber Pad (E)

Page 1 / 2

Backplate

Fixure

House Ground Wire

Fixture Ground Wire

Wire Connector (C)

Mounting Plate Unit (A)

Outlet Box

Fixture Wire

Mounting Screw (B)

Green Ground Screw

Set Screw (D)

Rubber Pad (E)

Turn on the power at fuse or circuit box

240820
