Set screw (D) Mounting Screw (B)Wire Connector (C)Mounting Plate Unit (A)
Page 1 / 2
Hardware Package (included):
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0776 / T0777
TO SHUT OFF
RVICING THIS FIXTURE.

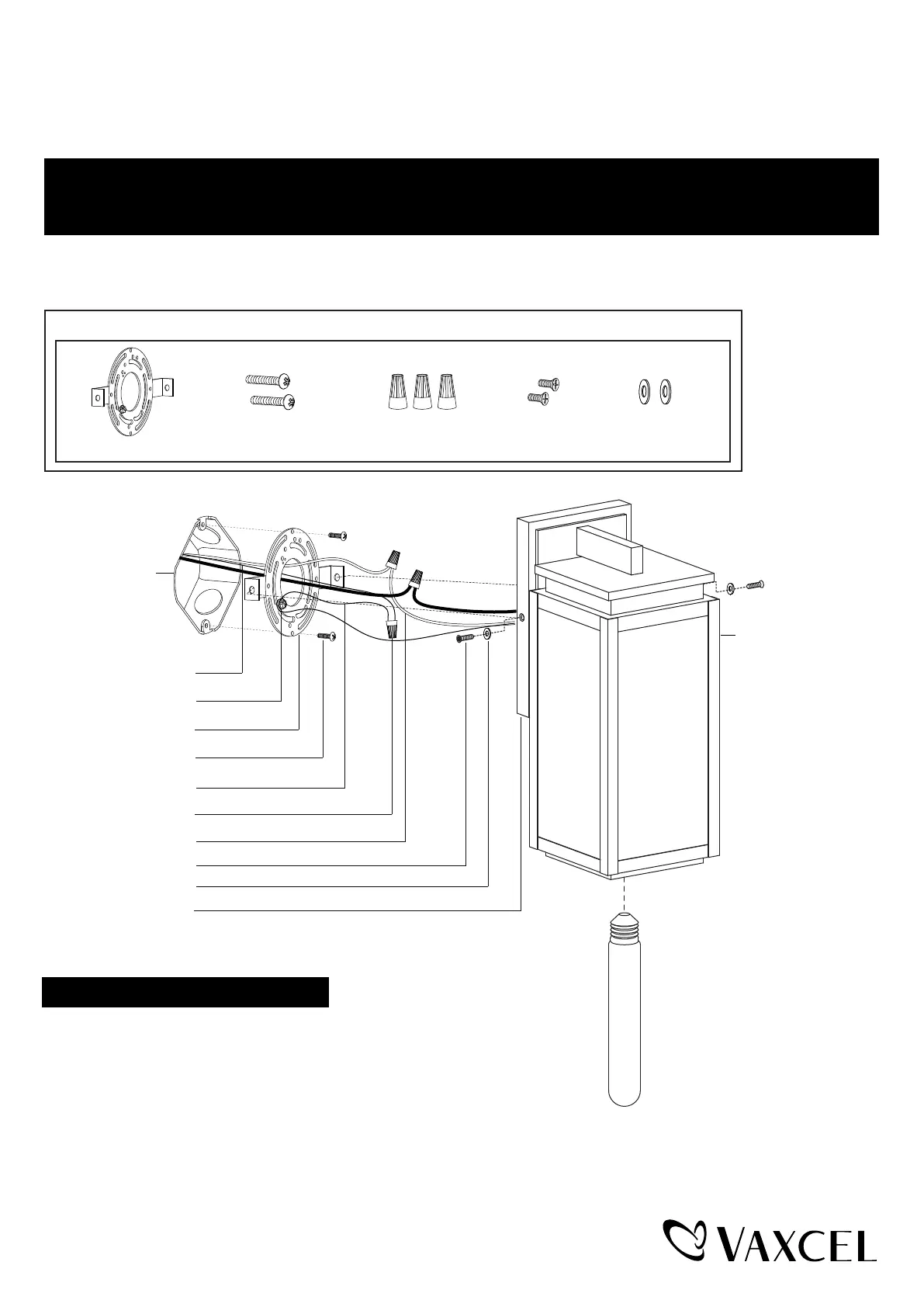

Outlet Box
Fixture
Fixture Ground Wire
Wire Connector (C)
Mounting Plate Unit (A)
House Ground Wire
Fixture Wire
Set Screw (D)
Mounting Screw (B)
Rubber Pad (E)
Green Ground Screw
Max. 60W Type T10 Bulb
(not included)
Backplate
Rubber Pad (E)
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two set screws (D), remove the two rubber pads (E)
and the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two
mounting screws (B).
Note: Make sure that two set holes are lined up horizontally
to make the fixture level.
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
