1. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the

preinstalled threaded pipe if necessary.

2. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with the green ground screw.

Then, depending on local code, connect it to the house ground wire with the wire connector (C).

Carefully put all of the wires back into the outlet box.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.Read And Save This Instruction.

OW21891

W

ARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

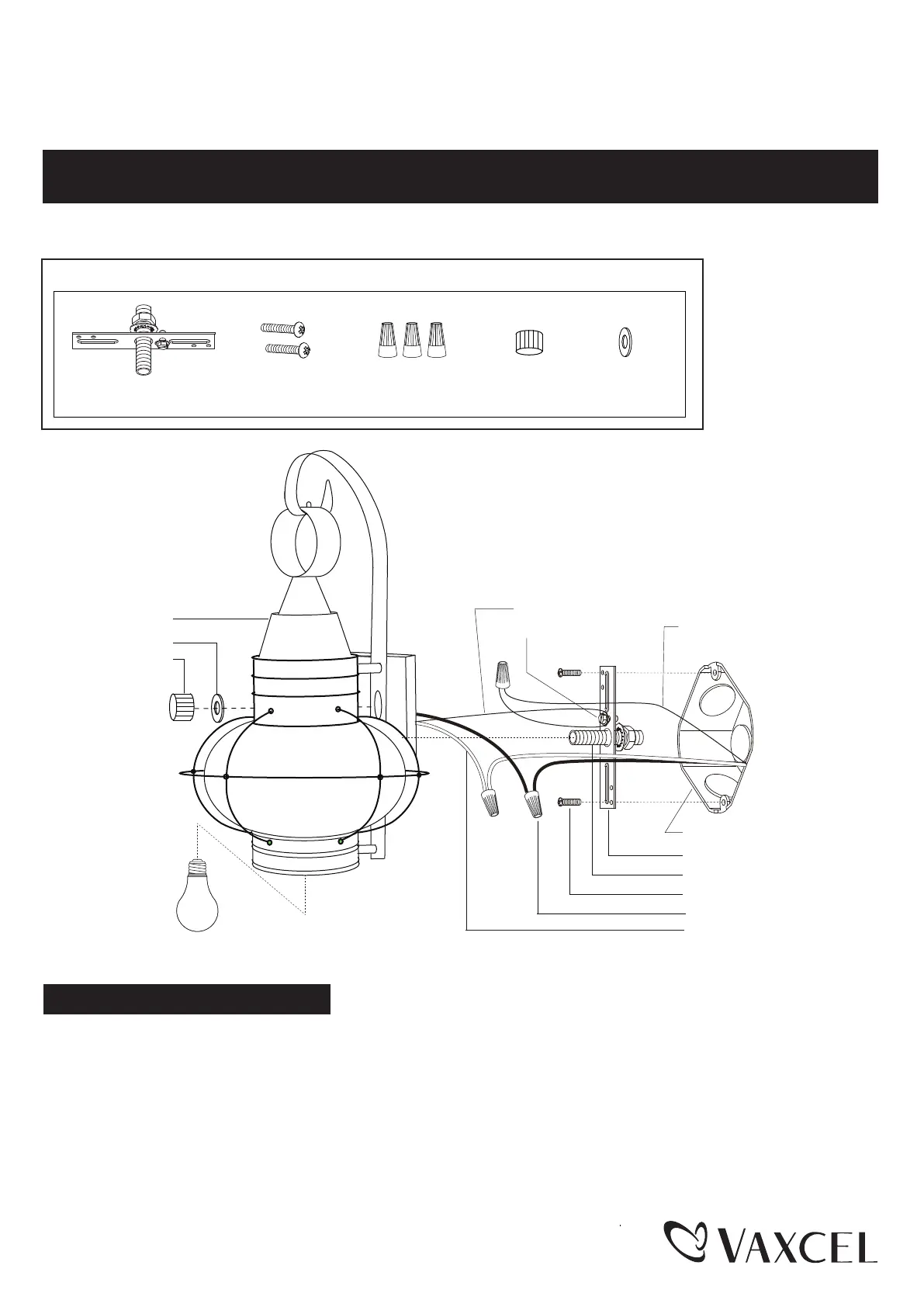

Hardware Package (included):

Turn off the power at fuse or circuit box.

Mounting Screw (B)

Fixture Wire

Mounting Strap Unit (A)

Wire Connector (C)

Fixture Ground Wire

Green Ground Screw

Outlet Box

House Ground Wire

Threaded pipe

Mounting Screw (B)

Wire Connector (C)End Cap (D)

Mounting Strap Unit (A)

Page 1 / 2

Fixture

End Cap (D)

Rubber Pad (E)

Max. 100W Type A Bulb

(not included)

Rubber Pad (E)
