WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
Page 1 / 2
230406

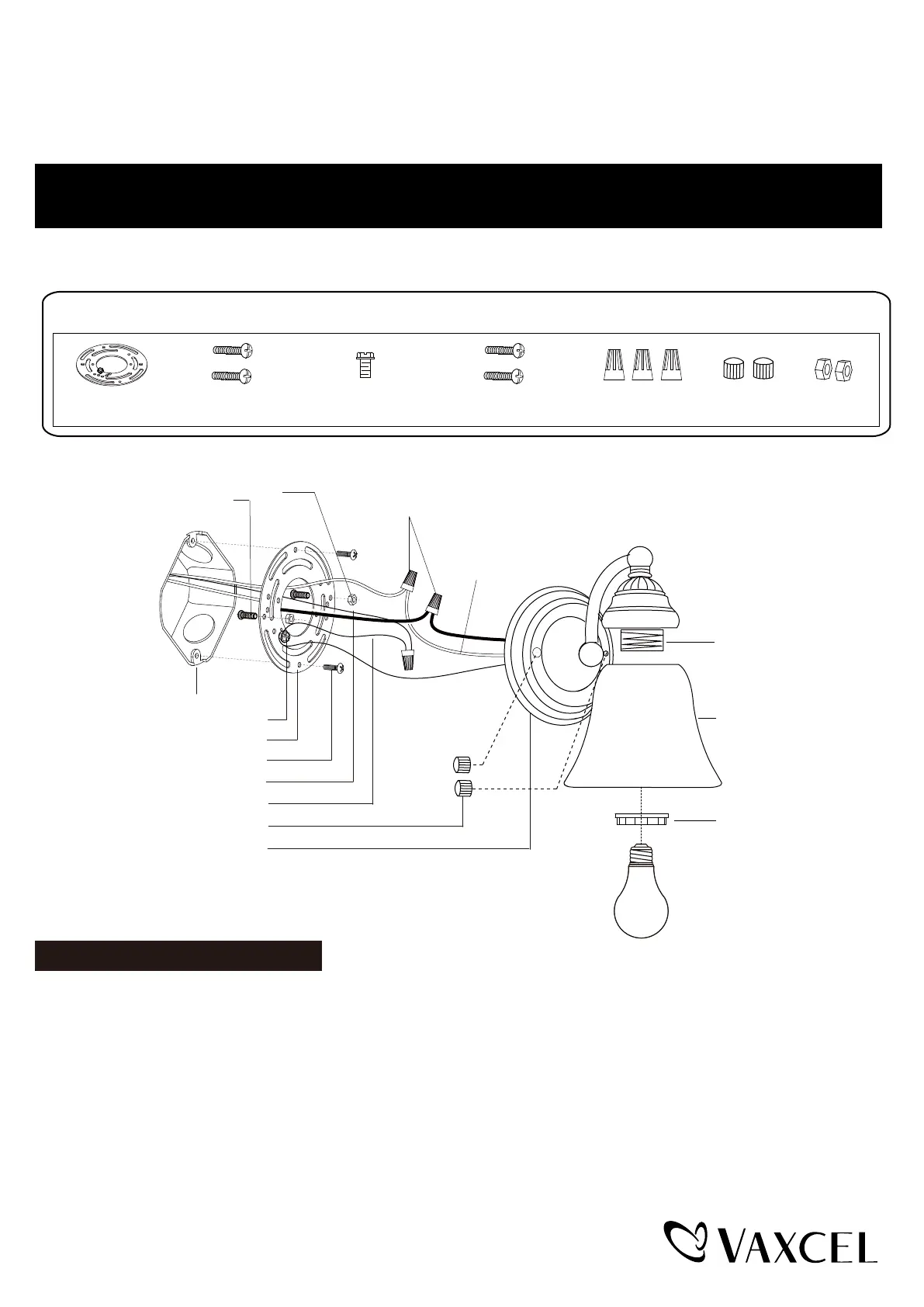

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
VL35122 / VL35123 / VL35124
Bolt Nut (F)
Mounting Screw (B)
Mounting Plate (A)
Green Ground Screw (C)
Wire Connector (E)
House Ground Wire
Fixture Ground Wire
Fixture mounting Screw (D)
Lock Nut (G)
Outlet Box
Fixture Wire
Bolt Nut (F)
Backplate
Max. 100W Medium Base bulb
(not included)
Glass Shade
Glass Holder
Socket Ring
Hardware Package (included):
Mounting Screw (B)Wire Connector (E)Mounting Plate (A)
Lock
Nut (G)Fixture mounting Screw (D)
Green Ground Screw (C)
1. Thread two fixture mounting screws (D) through the mounting plate (A), and secure them with two lock nuts (G).
Adjust the length of the screws if necessary.
Note: Two sizes of screws, 3/4" L and 1" L, are attached in the hardware package, please choose one
to suit your need.
2. Attach the mounting plate (A) to the outlet box by using two mounting screws (B).
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (E) as follow:
---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate (A) with the green ground screw (C) ,
and then connect it to the house ground wire with the wire connector (E) .
Carefully put the wires back into the outlet box.
Turn off the power at fuse or circuit box.
Installation Steps
