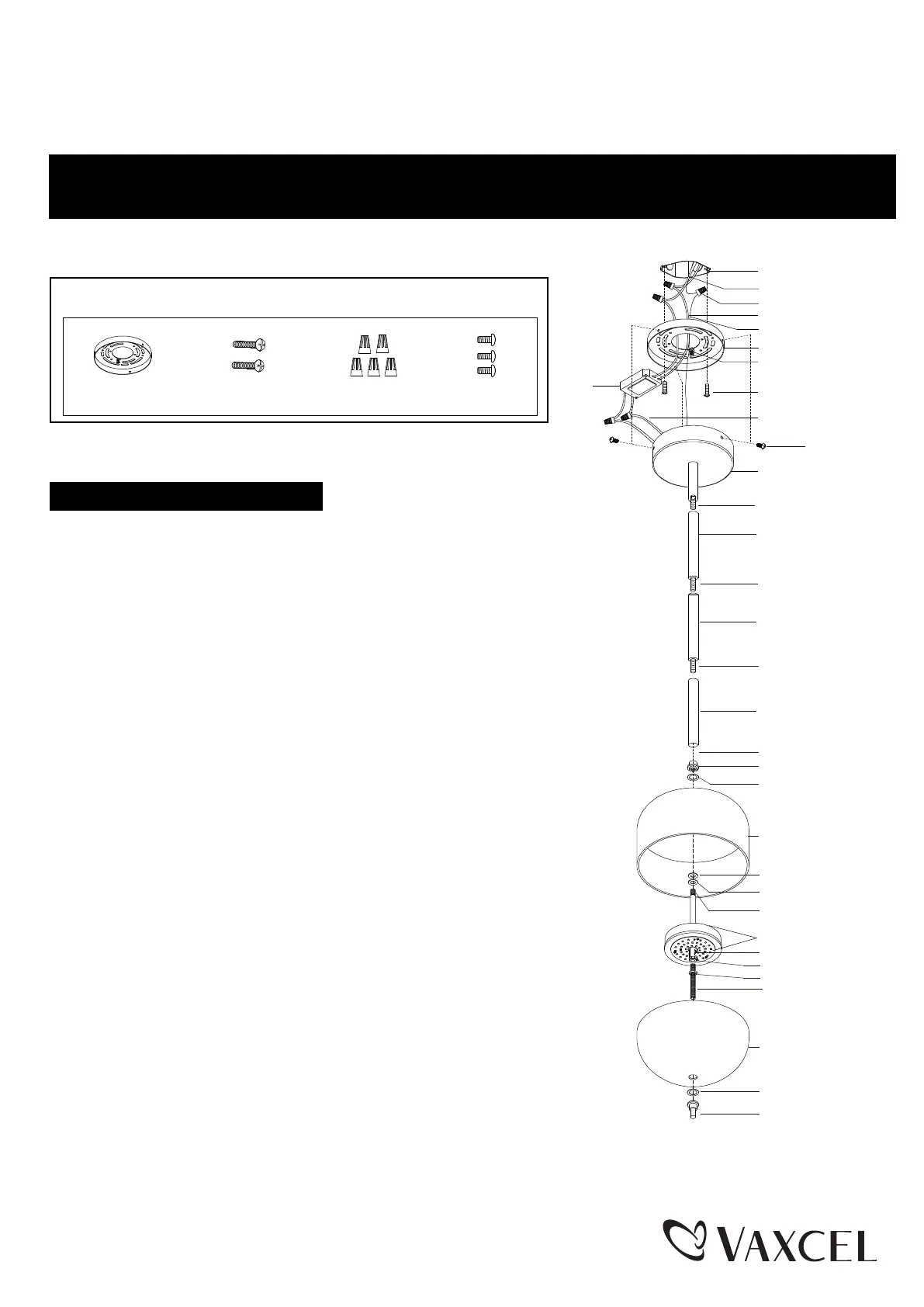

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

1. The fixture of the top iron tube. put into the metal pad and rubber pad ,

Through the hole of the upper glass shade, after put a rubber pad use

the casting to fix it.

2. Attach the threaded pipe into the coupling of the fixture and

secure the hex nut.

NOTE: Depth of threaded pipe may need to be adjusted to

properly fit glass shade, rubber pad and finial.

3. Attach the lower glass shade to the fixture by inserting the

threaded pipe, then secure it with a rubber pad and finial.

Note: Do not over tighten, breakage of glass shade could be

occurred.

4. Attach mounting plate (A) to the outlet box using two mounting screws (B).

5. Rod Connections:

a. Thread the fixture wire from the fixture through the lower rod,

then secure the lower rod onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod, and then secure

the middle rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, then secure the

upper rod onto the middle rod using the threaded pipe.

Note: Length adjustable from 18" to 60". Use fewer rods if shorter

length is desired.

6. Thread the fixture wire through the canopy, then secure the

rod assembly to the coupling kit of the canopy.

7. Make wire connections using wire connectors (C) as follows:

---Connect the smooth-coated wire (marked) from the fixture to the red

wire from the driver output.

---Connect the ribbed-coated wire (unmarked) from the fixture to the black

wire from the driver output.

Turn off the power at fuse or circuit

box.

Installation Steps

191231

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0320

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Outlet Box

Housing Ground Wire

Wire Connector (C)

Fixture Wire

Fixture Ground Wire

Mounting Plate (A)

Green Ground Screw

Mounting Screw (B)

Set Screw (D)

Wire Connector (C)

Canopy

Coupling Kit

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Threaded Pipe

Threaded Pipe

Casting

Rubber Pad

Upper Glass Shade

Rubber Pad

Metal Pad

Threaded Pipe

Coupling

Threaded Pipe

Lower Glass Shade

Rubber Pad

Finial

DC LED 19W

Driver

Hex Nut

Washer

Mounting Plate (A)Wire Connector (C)Set Screw (D)Mounting Screw (B)

Hardware Package(inculded):
