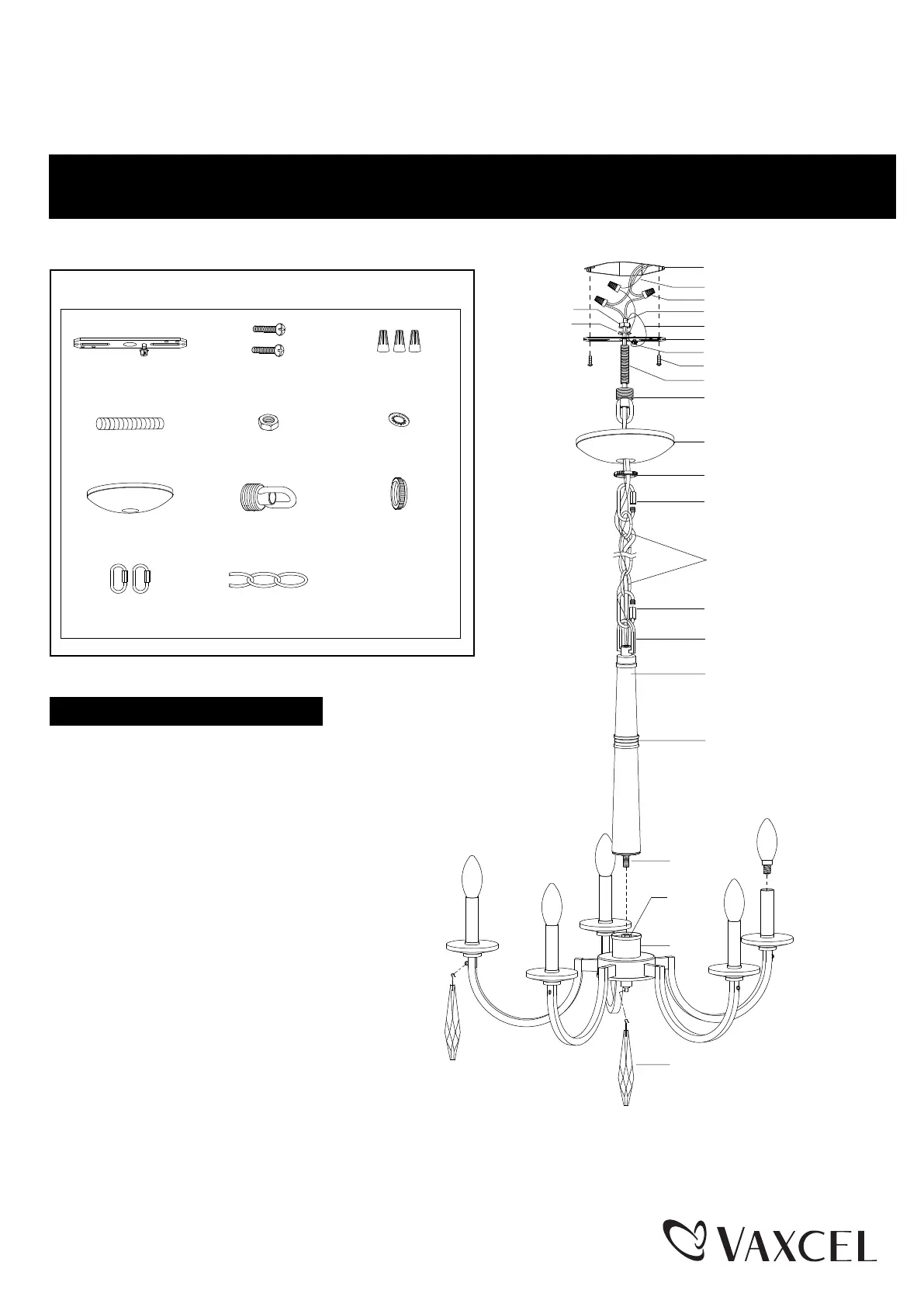

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
191127
1. Attach threaded pipe (D) to the mounting strap (A),
then secure it with a washer (F) and hex nut (E).
2. Attach the mounting strap (A) to the outlet box by
using two mounting screws (B).
3. Secure the crystal rod into the coupling.
4. Choose the length of the chain (K) you need,
then weave the fixture wire and the fixture
ground wire through the chain (K), collar (I)
and canopy (G).
5. Connect one end of the chain (K) with the
loop by using a loop lock (J).
6. Connect the other end of the chain (K) with
the top loop (H) by using another loop lock (J).
7. Thread the fixture wire and fixture ground wire
through the top loop (H), threaded pipe (D) and mounting strap (A).
Turn off the power at fuse or circuit
box.
Installation Steps
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
H0243
Mounting Strap (A)Wire Connector (C)
Collar (I)
Washer (F)
Mounting Screw (B)
Hex Nut (E)
Canopy (G) Top Loop (H)
Threaded Pipe (D)
Loop Lock (J)
Chain (K)
Hardware Package(inculded):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Candelabra Base Bulb
Max.60W (not included)
Outlet Box
Housing Ground Wire
Wire Connector (C)
Fixture Wire
Fixture Ground Wire
Mounting Strap (A)
Green Ground Screw
Mounting Screw (B)
Threaded Pipe (G)
Hex Nut (E)
Washer (F)
Top Loop (H)
Canopy (H)
Loop Lock (J)
Loop Lock (J)
Collar (I)
Chain (K)
Loop
Threaded Pipe
Threaded Pipe
Coupling
Fixture
Crystal
Crystal Rod
