Fixture
Fixture Wire
Chain
Loop
Fixture Grounding Wire
1. Attach the nipple to the mounting strap, then secure
it with a washer and hex nut.
2. Attach the mounting strap to the ceiling box by using
two mounting screws.
3. Choose the length of the chain you need, then weave
the fixture wire and the fixture grounding wire through
the chain links. Spread one end of chain link to clamp
securely to the loop.
4. Secure the top loop to the nipple.
5. Thread the fixture wire and fixture grounding wire
through the collar, canopy, top loop, nipple and
mounting strap.
6. Clamp the other end of chain link to the top loop.
7. Pull out the outlet wires and housing wire from the outlet
box. Make wire connections using the wire nuts:
---The smooth wire (marked) from the fixture to the
black wire from the power source.
---The ridged wire (unmarked) from the fixture to the
white wire from the power source.
--- Attach the fixture grounding wire to the cross bar
with the green grounding screw. Then connect it
to the house grounding wire with a wire nut.
Carefully tuck the wires back into the ceiling box.
8. Attach the canopy to the mounting strap by inserting
the top loop, then secure it with the collar.
9. Install a bulb (not included). See relamping label at
socket area or packaging for maximum allowed
wattage.
10. Turn on the power at the main fuse or circuit breaker box.

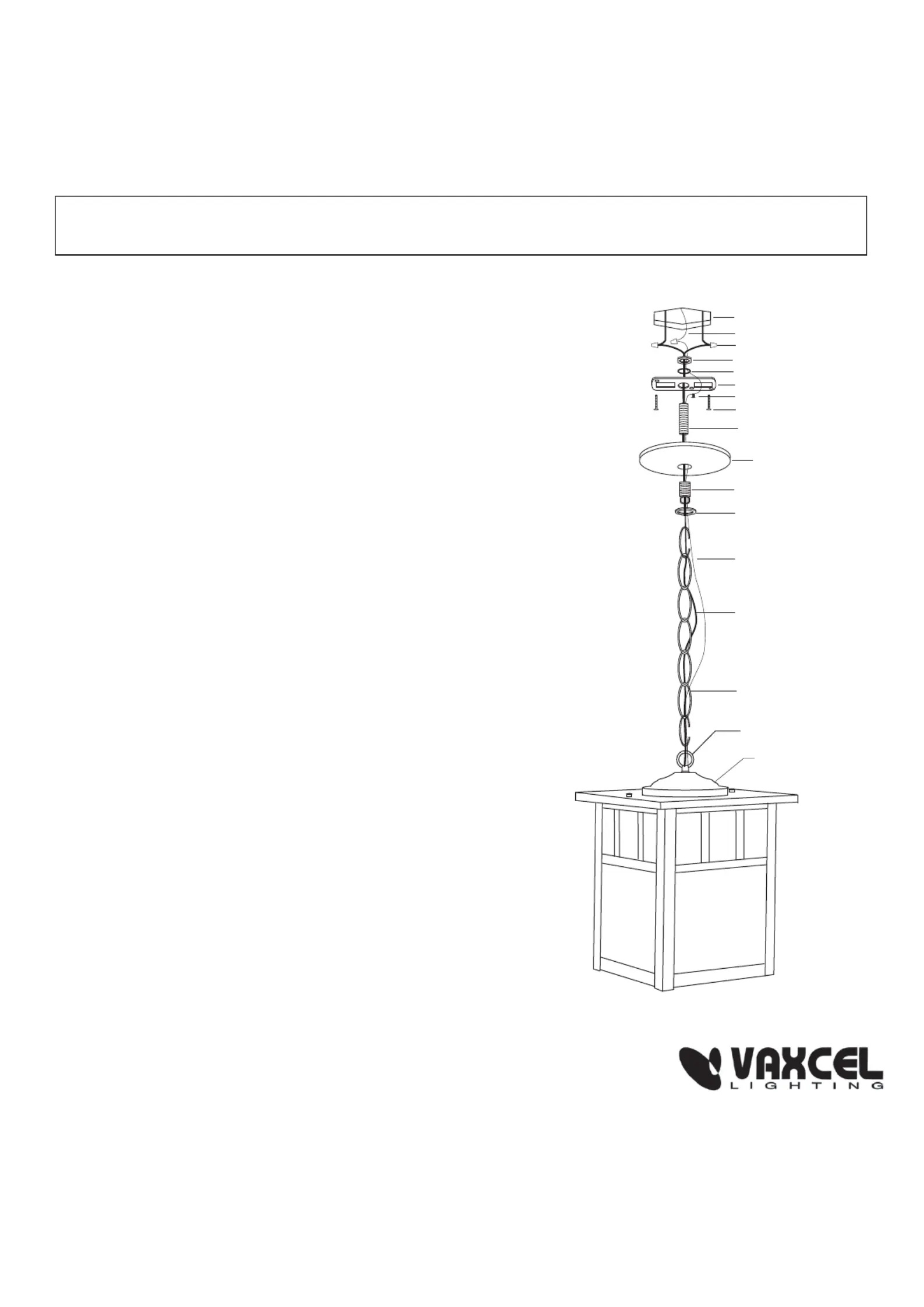

Mounting Screw
Nipple
Collar
Top Loop
Canopy
Mounting Strap
Green Grounding Screw
Hex Nut
Wire Nut
Washer
Ceiling Box
House Grounding Wire
060116
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.
OD37276/OD37296/OD14676/OD14696
