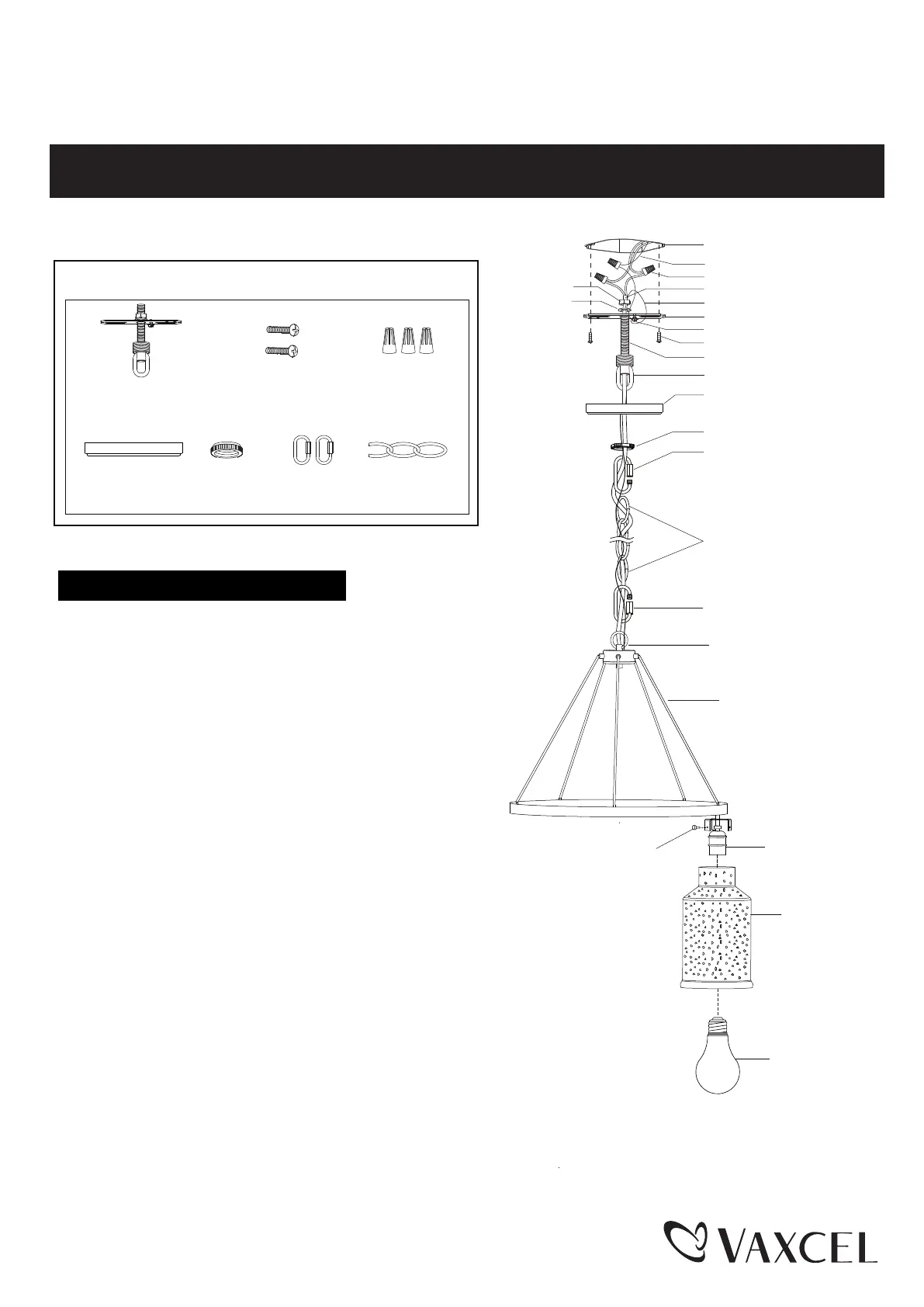

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.Read and save these instructions.
H0198
Glass Shade
Inner Arm
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.
Installation Steps
Quick Link (F)
Quick Link (F)
Collar (E)
Chain (G)
Loop
Bulb type A Max.
60W(not included)
Support Rod
Holder
1. Attach the mounting strap unit (A) to the outlet box by using two
mounting screws (B).
2. Secure the tube onto the stem of the fixture, thread fixture wires
through threaded tube and end of loop first.
3. Connect the chain (G):
- Determine length of chain needed to achieve desired fixture
height. (To remove excess chain section, use pliers to bend
link open.)
- Weave the fixture wires and fixture ground wire through the
chain (G), collar (E) and canopy (D).
4. Connect one end of the chain (G) to the loop using a quick link (F).
5. Connect the other end of the chain (G) to top loop by using the other quick link (F).
6. Thread the fixture wire and fixture ground wire through the top loop, threaded pipe
and mounting strap unit (A).
7. Pull out the source wires from the outlet box. Make wire connections using wire
connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black wire
from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire
from the power source.
---Attach the fixture ground wire to the mounting strap unit (A) with the green
ground screw, then connect it to the house ground wire with a wire connector (C).
Carefully put the wires back into the outlet box.
Outlet Box
Housing Ground Wire
Wire Connector (C)
Fixture Wire
Fixture Ground Wire
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Threaded Pipe
Hex Nut
Washer
Top Loop
Canopy (D)
Mounting Strap Unit (A)Wire Connector (C)
Collar (E)
Mounting Screw (B)
Canopy (D)
Quick Link (F)
Chain (G)
Hardware Package (included):
Page 1 / 2
240724
