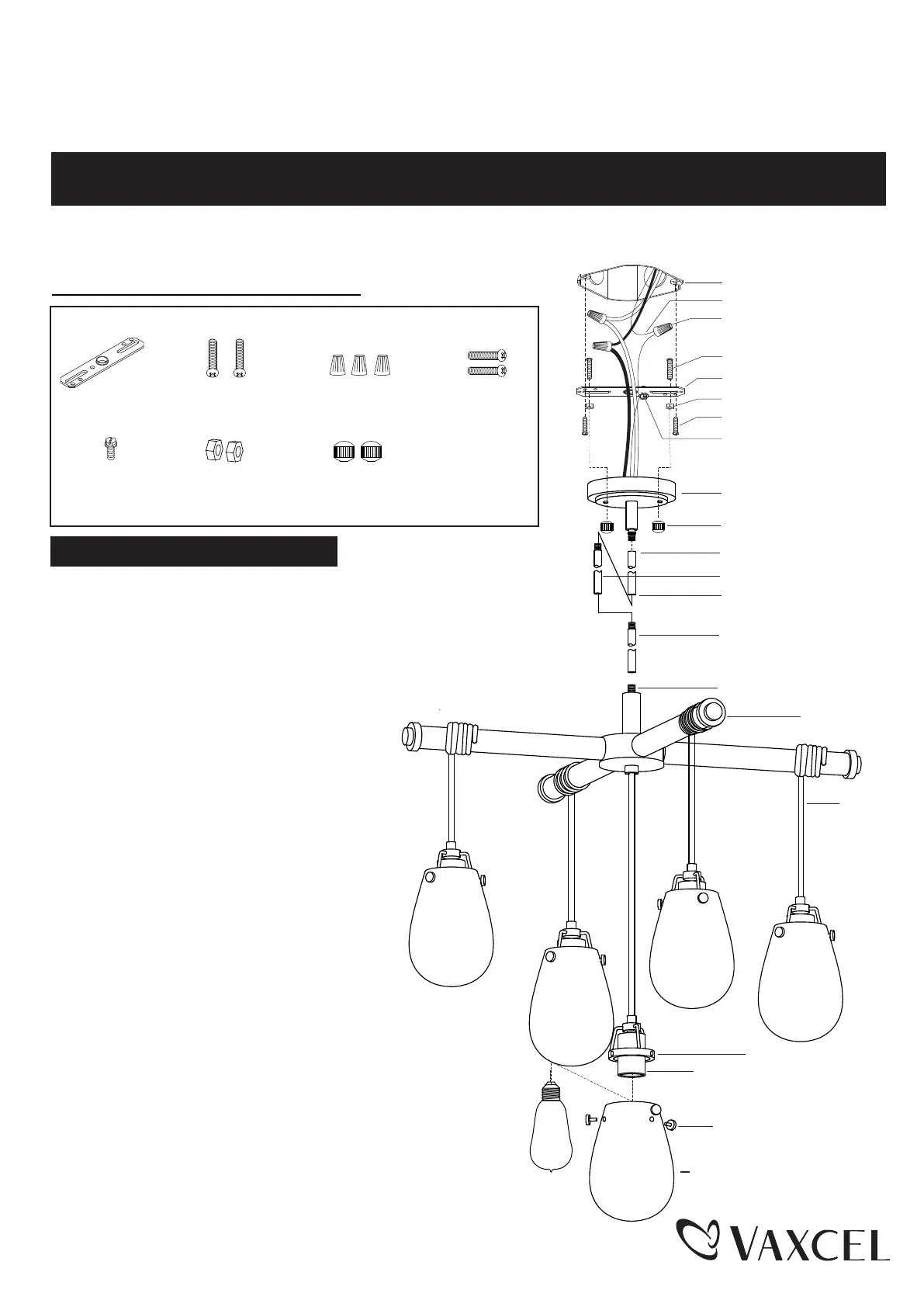

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

H0184

For Pendant Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

Mounting Strap (A)Fixture Mounting

Screw(D)

Wire Connector (C)

For Pendant Installation Steps

Lock

Nut (F)

Canopy Cover Assembly

Ball Nut (G)

Ball Nut (G)

Upper Rod

Threaded Pipe

Threaded Pipe

Middle Rod

Lower Rod

Socket

Glass Shade

Glass Holder

Outlet Box

House Ground Wire

Wire Connector(C)

Fixture Mounting Screw (D)

Mounting Strap(A)

Green Ground Screw(E)

Lock Nut(F)

Mounting Screw(B)

1. Thread two fixture mounting screws through the mounting strap,

and then secure with two lock nuts. Adjust the length of the fixture

mounting screws if necessary.

2. Attach the mounting strap to the outlet box by using two mounting

screws.

3. Rod Connections:

a. Thread the fixture wire from the fixture

through the lower rod, and then secure the

lower rod onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod,

and then secure the middle rod onto the lower

rod using the threaded pipe.

c. Thread the fixture wire through the upper rod,

and then secure the upper rod onto the middle

rod using the threaded pipe.

d. Thread the fixture wire through the canopy

cover assembly, and then secure the canopy

cover assembly onto the upper rod using the

threaded pipe.

Note: Length adjustable from 29" to 89".

Use fewer rods if shorter length is desired.

5. Connecting the wires with wire connectors as follows:

---Connect the black wire from the fixture to the black wire

from the power source.

---Connect the white wire from the fixture to the white wire

from the power source.

---Attach the fixture ground wire (usually green insulation

or bare wire) to the mounting plate with the green

ground screw. Then connect it to the house ground wire

with the wire Connector.

6. Attach the canopy cover assembly to the mounting strap by

inserting the fixture mounting screws, and then secure it with

two ball nuts.

171110

Green Ground

Screw (E)

Mounting Screw (B)

Main Fixture

Set Screw

Cord

Vintage Bulb

Max.60W

(not included)
