ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
H0264
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
Mounting Strap Unit (A)Mounting Screw (B)
Wire Connector (C)Bolt Nut (D)
Outlet Box
House Ground Wire
Wire Connector (C)
Mounting Strap Unit (A)
Fixture Mounting Screw
Green Ground Screw
Bolt Nut (D)
Mounting Screw (B)
Safety Cord
Cord Clamp
Max. 40W Type T10 Bulb
(not included)
210318

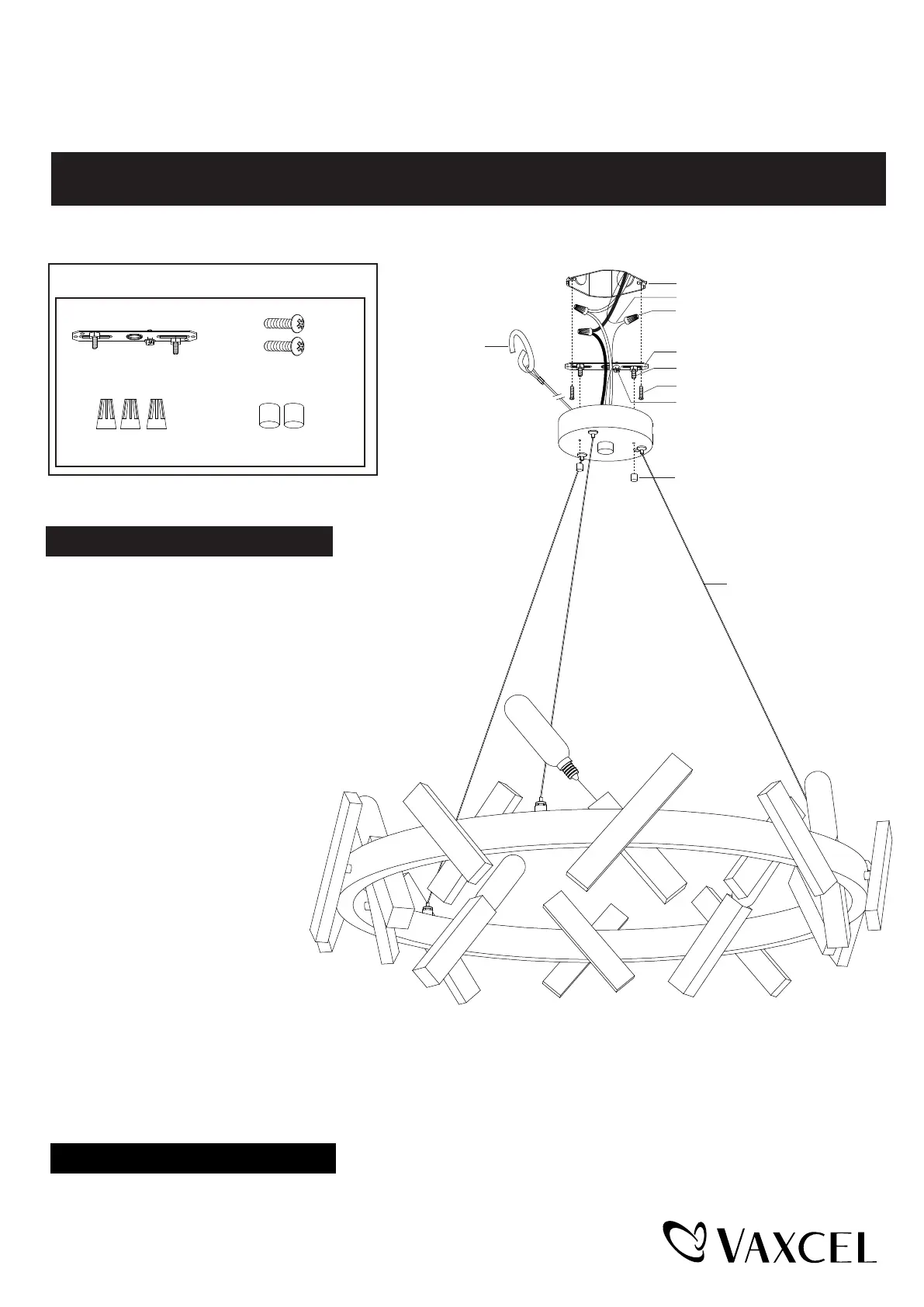

1. Attach the mounting strap unit (A) to the outlet box using
two mounting screws (B).
2. Attach the cord clamp onto the mounting strap unit (A).
3. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C)
as follows:
---Connect the smooth-coated wire
(marked) from the fixture to the black
wire from the power source.
---Connect the ribbed-coated wire
(unmarked) from the fixture to
the white wire from the power
source.
---Attach the fixture ground wire
to the mounting strap unit (A)
with the green ground screw,
then connect it to the house
ground wire with a wire
connector (C).
Carefully put the wires back into the
outlet box.
4. Attach the fixture canopy to the mounting strap unit (A) by inserting the fixture mounting screws, then secure it with
two bolt nuts (D).
5. Install the bulbs (not included). See relamping label at socket area or packaging for maximum wattage allowed.
