ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
H0178
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
161207
Mounting Strap (A)
Green Grounding
Screw (E)
Fixture Mounting
Screw(D)
Mounting Screw (B)
Wire Nut (C)
Installation Steps
Lock Nut (F)
Ball Nut (G)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Coupling
Fixture Canopy
Ball Nut (G)
Outlet Box
House Grounding Wire
Wire Nut(C)
Fixture Mounting Screw (D)
Mounting Strap(A)
Green Grounding Screw(E)
Lock Nut(F)
Mounting Screw(B)
Rod

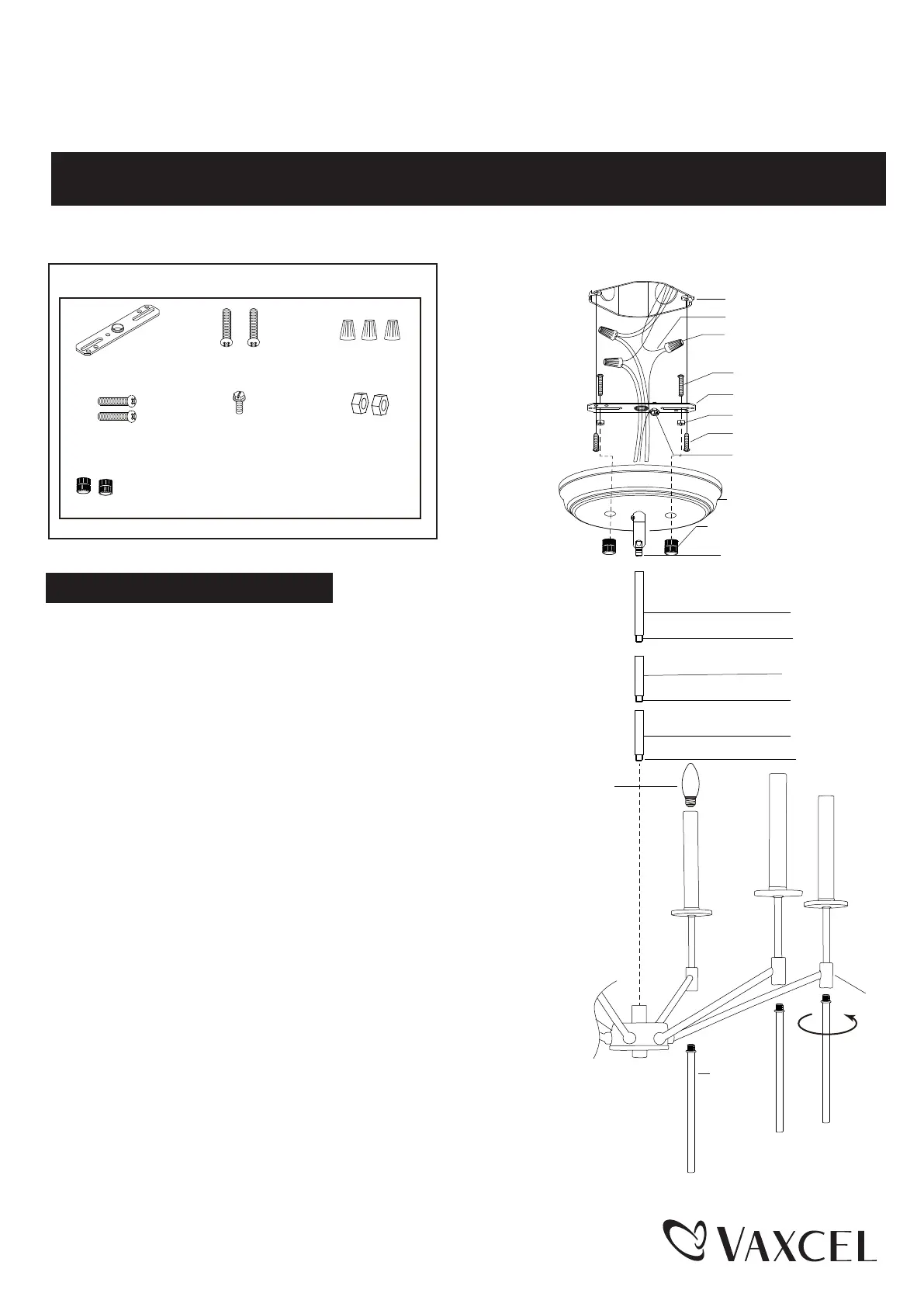

1. Secure rods into the couplings of the light.
2. Attach two fixture mounting screws to the mounting strap,
and then secure it with two lock nuts. Adjust the length of
the fixture mounting screws if necessary.
3. Attach the mounting strap to the outlet box using two
mounting screws.
4
. Rod Connections:
a. Thread the fixture wires from the fixture through the
lower rod, and then secure the lower rod onto fixture using
the threaded pipe.
b. Thread the fixture wires through the middle rod, and then
secure the middle rod onto the lower rod using the
threaded pipe.
c. Thread the fixture wires through the upper rod, and then secure
the upper rod onto the middle rod using the threaded pipe.
d. Thread the fixture wires through the fixture canopy, and then secure
fixture canopy onto the upper rod using the threaded pipe.
Note: Height adjustable from 23-1/4" to 65-1/4".
Use fewer rods if shorter length is desired.
Bulb Type B
Max. 60W
(not included)
