ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
CR-VLU002 / CR-VLU003 / CR-VLU004
1. Attach the nipple to the mounting strap, then secure it with a washer and hex nut.
2. Attach the mounting strap to the outlet box by using two mounting screws.
3. Pull out the outlet wires and house grounding wire from the outlet box. Make wire
connections using the wire nuts:
---The black wire from the fixture to the black wire from the power source.
---The white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green grounding screw.
Then connect it to the house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
4. Attach the fixture to the mounting strap by inserting the nipple, then secure it with the
end cap.
5. Attach the glass shades onto the glass holders and secure them with the socket rings.
6. Install bulbs (not included). See relamping label at socket area or packaging for maximum
allowed wattage.
7. Turn on the power at the main fuse or circuit breaker box.

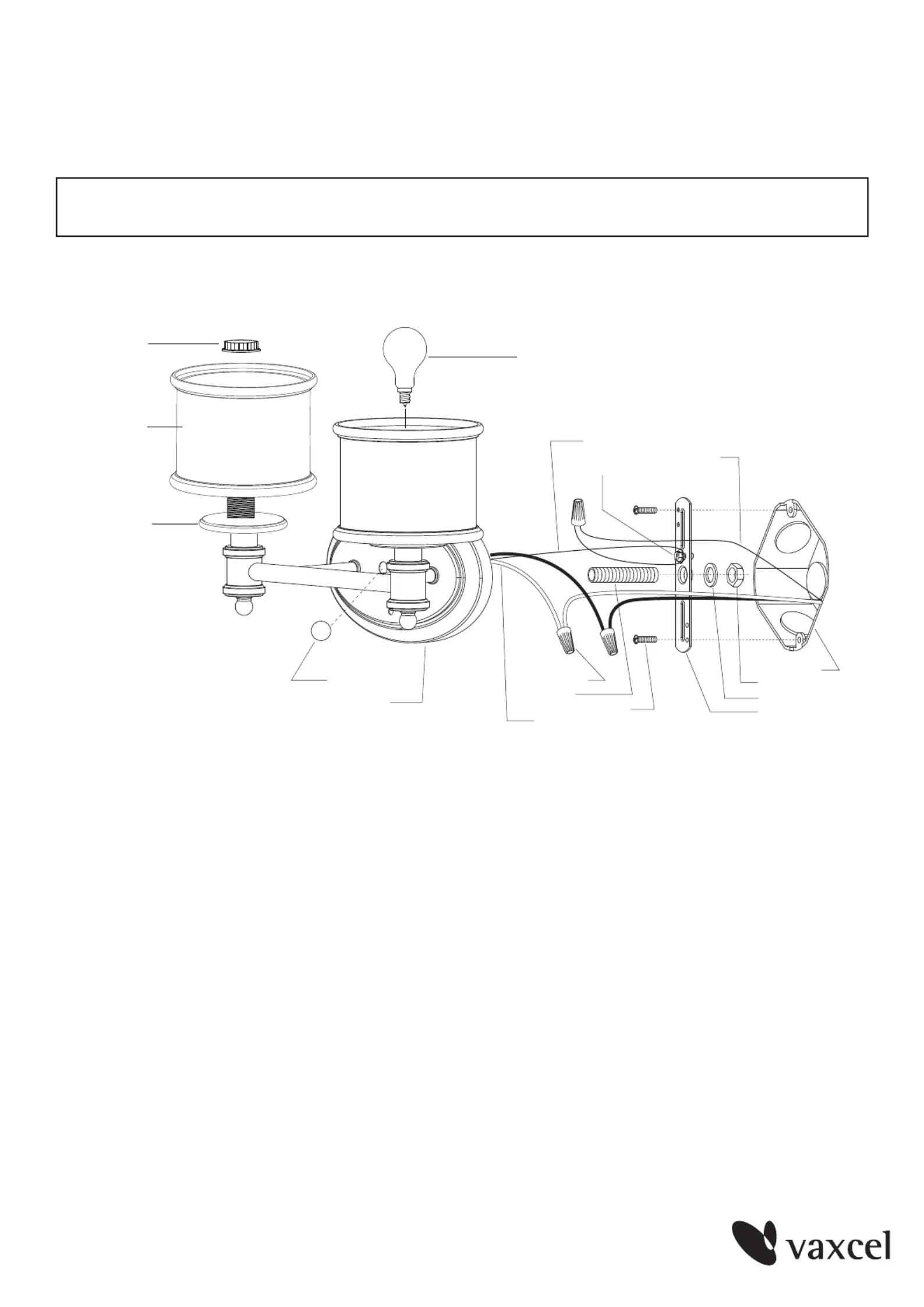

Glass Shade
Glass Holder
Socket Ring
Mounting Screw
Fixture Wire
Nipple
Mounting Strap
Hex Nut
Wire Nut
Washer
Fixture Grounding Wire
Back Plate
Green Grounding Screw
Outlet Box
House Grounding Wire
End Cap
Bulb Type A15 Max.60W
(not included)
100406
