1 947545

ISSUE 1

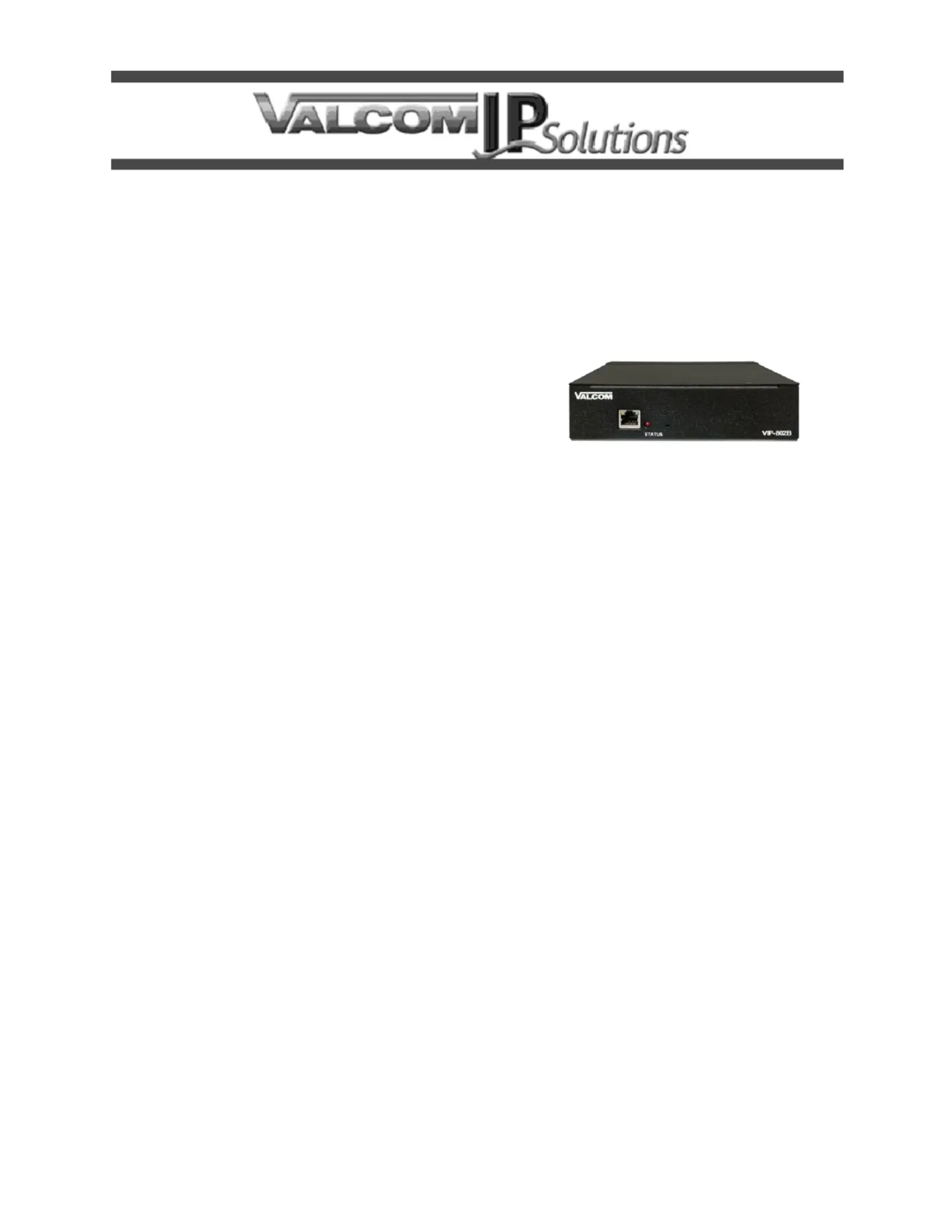

VIP-B 802

DUAL NETWORK AUDIO PORT

INTRODUCTION

The VIP-802B Dual Network Audio Port enables

voice access to two zones of one-way paging over

an IP network, allowing page zones to be extended

anywhere network connectivity is ailable. The av

VIP-802B can be programmed as a SIP

(Session Initiation Protocol) device with two

identities (one per audio channel) for connectivity

to virtually any Voice over IP (VoIP) telephone

system.

SPECIFICATIONS

Features

2 Audio Outputs or Inputs

2 Form A relay contacts

2 Contact Closure Inputs

2 SIP identities for registering to a SIP

telephone system

-jack for network connection RJ45

Front panel activity LED

Provides audio for up to 40 Valcom one-way

amplied speaker assemblies per zone

AUX audio input via RCA jack for bkground ac

music

Contact closure or VOX operation of audio

inputs

-186 -connectors provided for audio VMRJ45

and relay interface

Page with music output, music mutes during

page

Output control contact closure provided during

paging output

Compatible with 25 or 70 Volt ampliers

2.5mm jack for optional DC power

Power over Ethernet (PoE) 802.3af compatible

Dimensions/Weight

2 H x 7." W x .5" D 1.7”001187

.1(4.36cm H x 17.78cm W x 306cm D)

Weight: 2. lbs. (0. kg) 0593

Nominal Specications

Input Impedance: 600 Ohms

Input Level: -10dBm nominal

Voice Switch Sensitivity: -21dBm

AUX Input Impedance: 8 to 600 Ohms

AUX Input Level: -10dBm nominal

Output Impedance: 50 Ohms

Output Level: - 10dBm nominal

Relay Current: 1 AMP @ 24VDC

Nominal Power Requirements

Via back panel barrel connector:

Voltage: 24VDC

Current: 325mA

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

WARNING:

To Reduce The Risk Of Fire Or Electric Shock

Do Not Expose This Apparatus To Rain Or

Moisture.

AVERTISSEMENT :

An de réduire les risques d'incendie ou de

décharge électrique, évitez d'exposer le

système à la pluie ou à l'humidité.
