Issue 2

1 947261

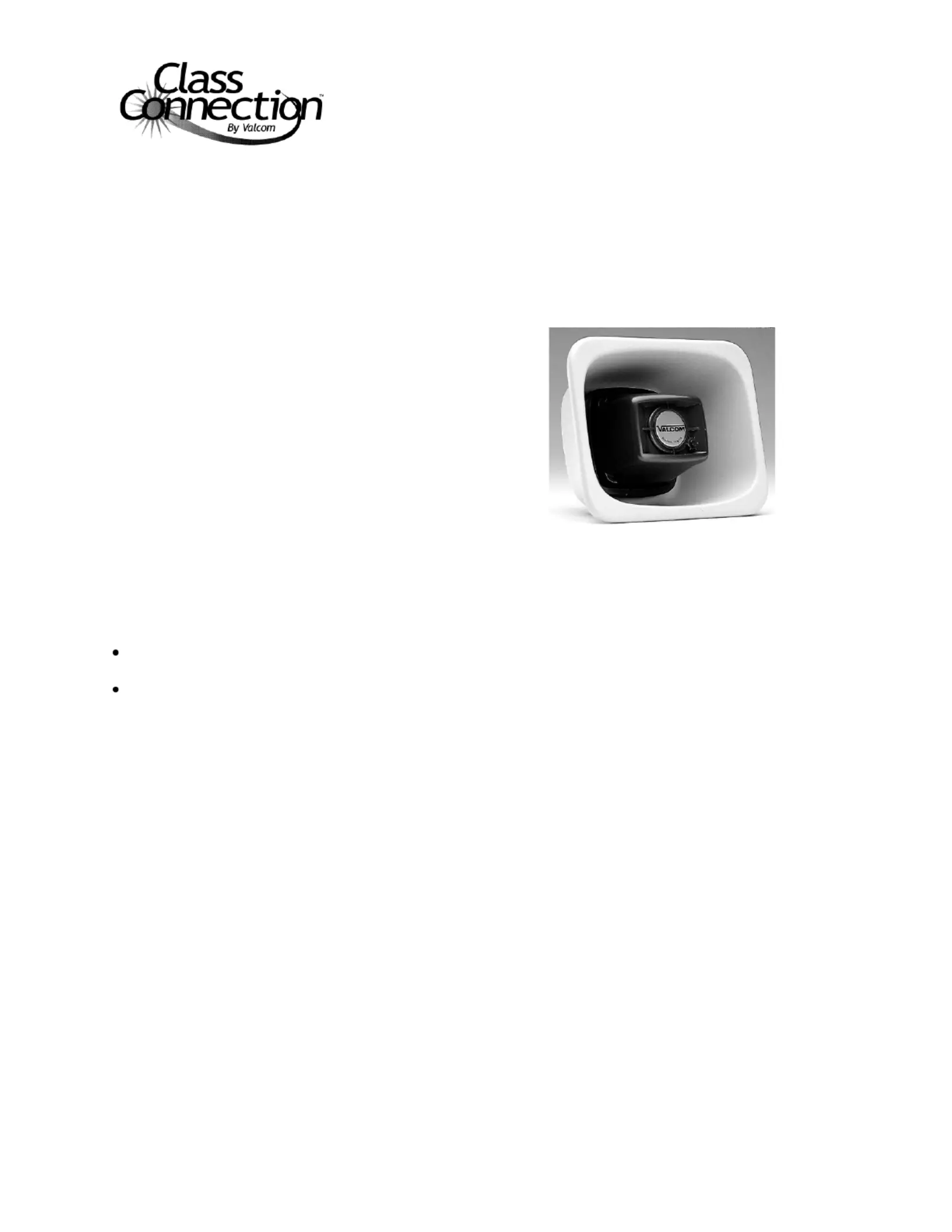

VC-1090 FLEXHORN

45 OHM TALKBACK HORN

WITH VOLUME CONTROL

INTRODUCTION

The Valcom VC-1090 Flexhorn is a 45 Ohm

talkback horn designed to be used with Valcom

“handsfree” talkback control units. The volume

control is on the face of the horn. This horn is

weatherproof and can be used indoors or outside

in environments ranging from -20 to +55° C.

Model VC--1090GY Gray

Model VC--BGE Beige 1090

Model VC--W White 1090

CONNECTIONS

White - Tip/A

Black - Ring/B

DIMENSIONS/WEIGHT

6.8”H x 8.3”W x 3.3”D

(17.3cm H x 21.1cm W x 8.4cm D)

2 lbs. (0.91 kg)

MOUNTING

FLUSH MOUNT

Using the template packaged with the speaker,

draw the speaker outline on the wall to be cut.

Make appropriate wiring connections and test the

speaker for operation. Using appropriate

mounting screws (not furnished) drill and mount

the ange as shown.

UNIVERSAL BRACKET

Loosen or separate the universal bracket leaves

by loosening or removing the handle and

hardware. Using the back leaf as a template,

mark the wall through the mounting holes. Drill

and mount to the wall using appropriate screws

(not furnished) or mount directly to a junction box.

Mount the T-bracket to the back of the horn as

shown using the (2) ½" screws provided.

"C" CLAMP FOR "I" BEAM

MOUNTING

A "C" clamp is provided with the horns to allow

mounting to a beam. Place the bolt through the

hole in the bottom of the base to secure the "C"

clamp to the beam. It is suggested that the horn

be mounted to the underside of the "I" beam to

provide the maximum of positioning adjustments.

Mount the “C” clamp with (2) 1/2” screws

provided.

TECHNICAL ASSISTANCE

When trouble is reported, verify there are no

broken connections. Assistance in

troubleshooting is available from the factory.

Call (877) -Class 4272166 and ask for

Connection Technical Support.

Valcom equipment is not eld repairable.

Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating company

name, address, phone number, contact person,

and nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056
