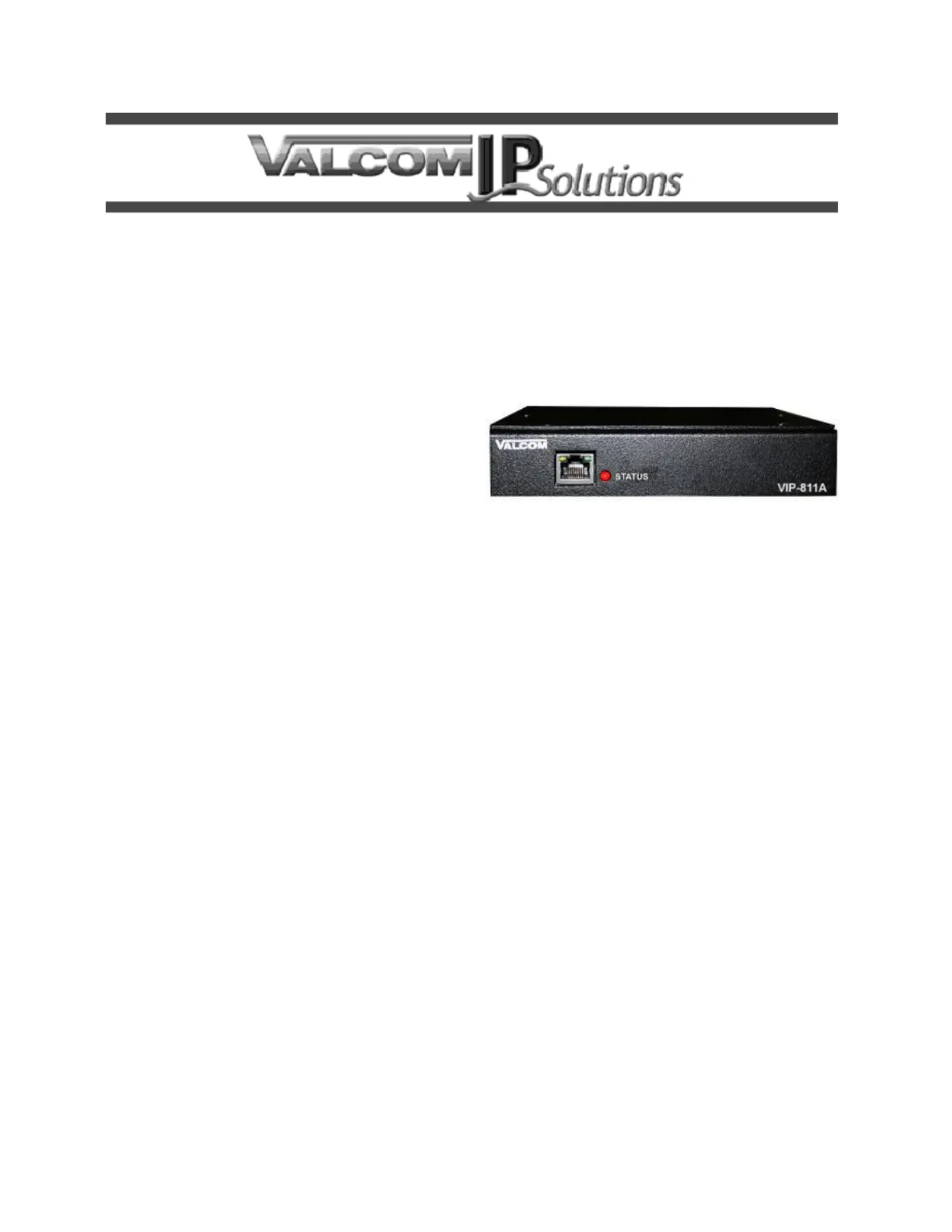

VIP-A 811
NETWORKED STATION PORT
INTRODUCTION
The VIP-811A Networked Station Port allows most
loop start terminal devices to be connected to a
managed IP-based LAN/WAN.
SPECIFICATIONS
Access Methods
PBX, FXO Port
POTS telephone set
Features
-45 for network connection RJ
1 RJ-11 telephone connection
2 Relays with Form C contacts
Front panel activity LED
Network activity LEDs
1 REN
Barrel jack for optional external power
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
H x 6.13" W x 5.25" D 1.38”
(3.50cm H x 15.6cm W x 13.33cm D)
Weight: 1.25 lbs. (0.57 kg)
Nominal Specications
Input Impedance: 600 Ohms
Input Level: -10dBm
Output Impedance: 600 Ohms
Output Level: - 10dBm nominal
Relay Current: 1 AMP @ 24VDC
Nominal Power Requirements
Via rear panel barrel connector:
Voltage: 24VDC
Current: 325mA
Via 802.3af PoE Ethernet Switch:
802.3af: Class 3
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
INSTALLATION
NOTE: The telephone system referred to in this
manual is the customer premise equipment
such as an electronic key system, a PBX or a
dedicated single line telephone sets. The
VIP-811A is not intended for direct or indirect
connection to the public telephone network.
When used with a customer premise telephone
system such as a key system or PBX system,
these units are interfaced to the system via a
fully protected trunk port or system central
oce port, which is a fully protected interface
device. Also, the host system must be
congured to disallow central oce trunk
conferencing in order to prevent indirect
connection to the public network.
