Issue 6

1947573

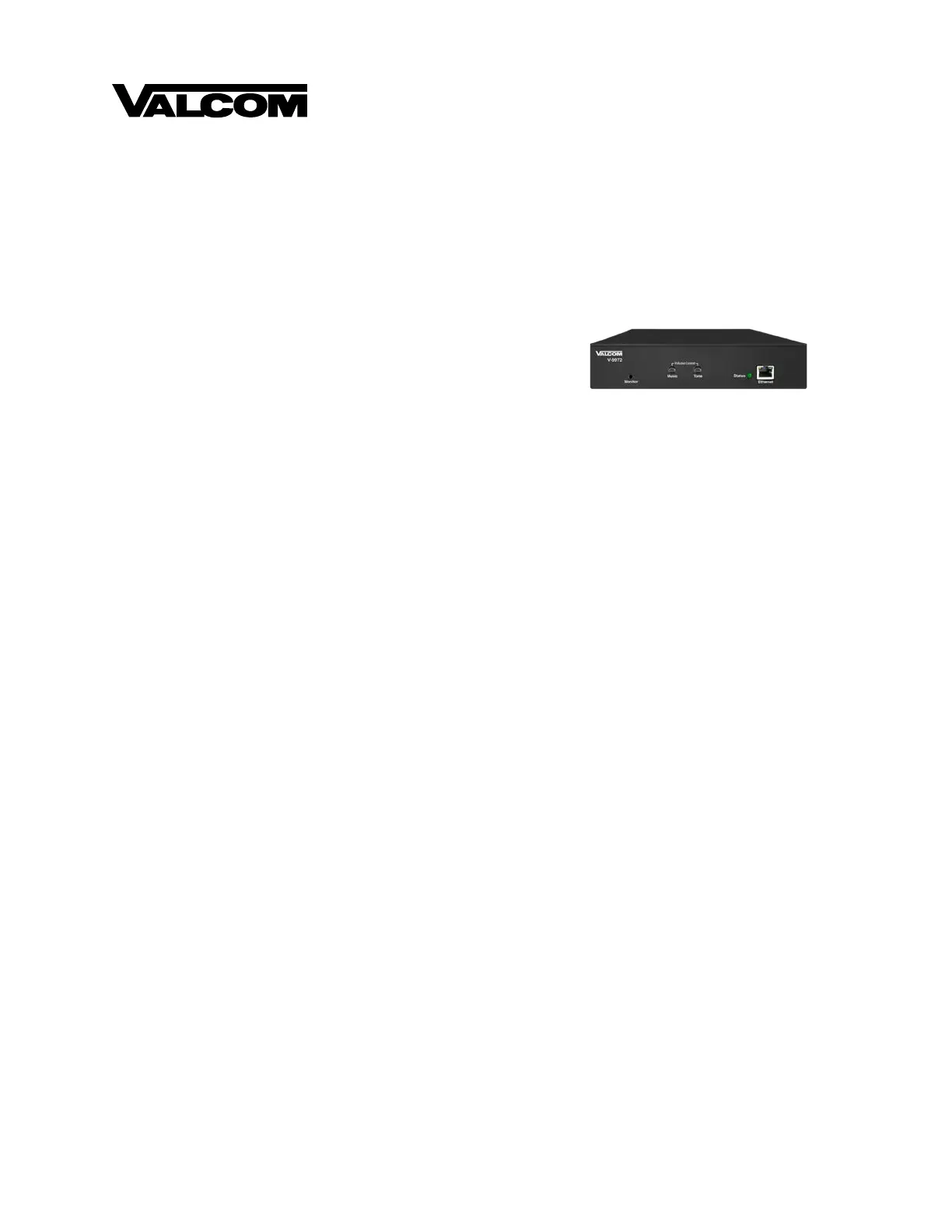

V-9972

UNIVERSAL PAGING INTERFACE

INTRODUCTION

The V-9972Universal Paging Interfaceis designed to

provide access to paging systems from an analog station

port(FXS, PABX), PABX loop start trunk port (FXO) or

SIP (Session Initiation Protocol) voice over IP

connections.

SPECIFICATIONS

Access Methods

•FXS extension

•PABX station extension

•Electronic key system line key

•PABX loop start trunk port

•Standard telephone

•SIP (Session Initiation Protocol)

Electrical Specifications

FXO Input

Ring Detect Voltage 13.5V Min

REN 0.2

FXS Input

DC Open Circuit Voltage -48V Nominal

DC Feed Circuit 45mA Max

DC Differential Output Resistance 60-640 Ohms

Ringing Amplitude(nominal, open circuit)

10

8V peak

Ring Frequency 20Hz

Audio Sense Release: Programmable

0-600 Seconds

Time Out Release: Programmable

0-3600 Seconds

Talkback Page Out (FXO Output)

Impedance: 600 Ohms

Page Level Output: -10dBm Nominal

One Way Page Out

Impedance: Min. 8 Ohms

Page Level: -10dBm to 0dBm

Music Level: -17dBm to 0dBm

Music Input Impedance: 10k Ohms

-23dBm to 0dBm

Answer Verification Tone: User Programmable

Form AContacts: 24VDC, 1.0 Amps

Power:

Power Input: 24VDC, 600mA

(not included)

These products are intended for use with a UL Listed

power source marked “Class 2” or “LPS” rated 24VDC.

All interconnected ITE are intended for intra-building.

Features

•Use with SIP (Session Initiation Protocol) VoIP PBX

•Use with Valcom multi-zone page control unit with

FXS or analog station ports(DTMF signaling only)

•U

se with Valcom handsfree page units for talkback

paging

•Multiple units may be connectedfor multi-zo

ne

pag

ing with all call behind a PABX

•Background music, stereo or mono input; musi

c

mutes during page

•Volume controls for background music and tones

•Security code option to restrict page access

•Store & Play feedback eliminator option

•Multiple disconnect options

•Page verification tone

•Customizable Page alert tone

•Drive up to 150one-way amplified speakers on 8

Ohm ou

tput (one-way output)

•Web interface for programming extended functions

The following features can be enabled with additional

license purchase:

•Additional options for full compatibility with Valco

m

I

P endpoints

•SIP expanded to 4 extensions, with Night Ring a

nd

S

tore & Play on all lines

Dimensions/Weight

Single unit:

9.25” W x 10.12” D x 1.72” H

(23.49cm W x25.70cm D x 4.36cm H)

Weight 2.5 lbs (1.134 kgs)

Two units mounted for 19” Rack:

19.0” W x 10.12” D x 1.72” H

(48.26cm W x25.70cm D x 4.36cm H)

Weight 5.1 lbs (2.313 kg)

Environment

Temperature: 0 to +50°C

Humidity:0 to 80% (non-precipitating)
