Pagina 1/4
Issue 1
1 9471005
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.

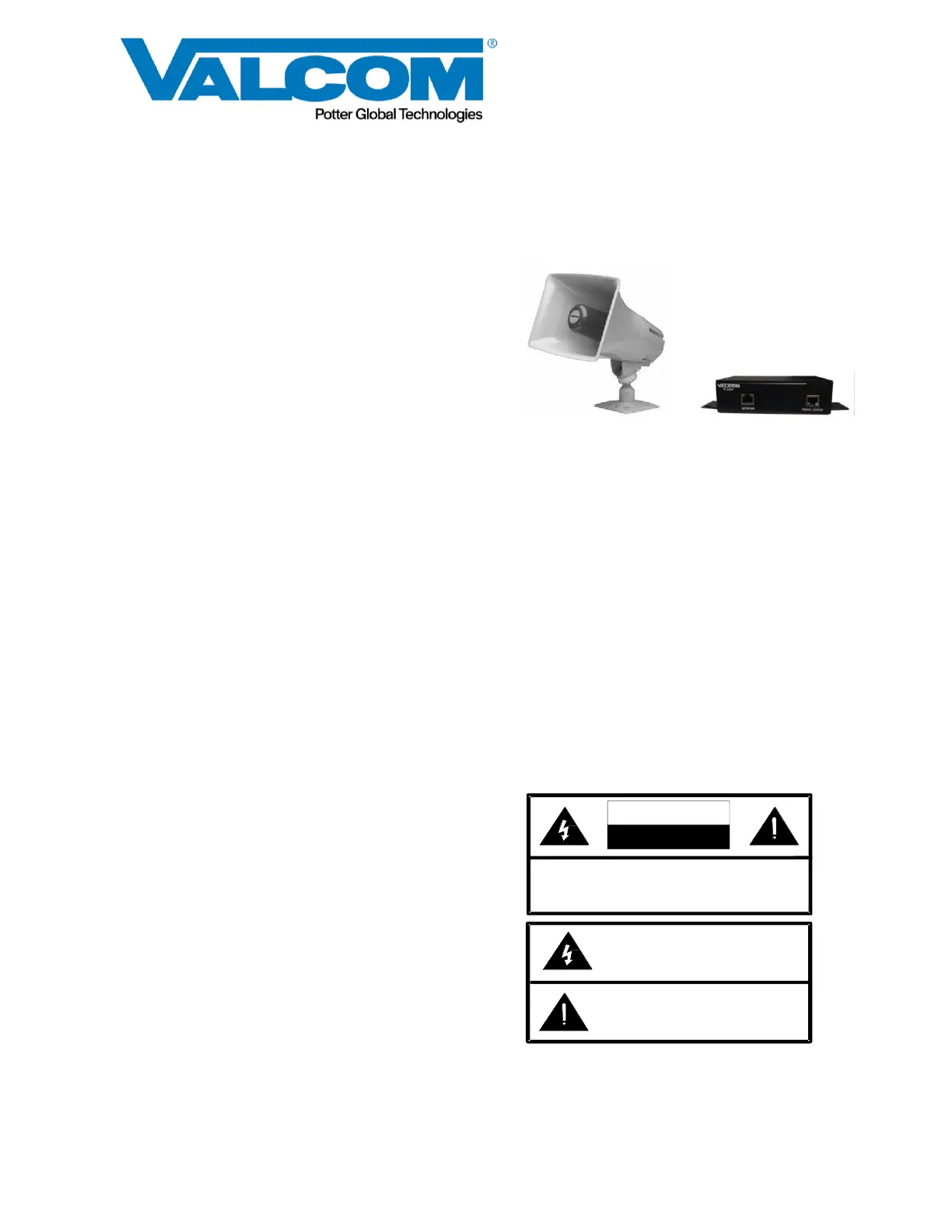

ezIP PoE ONE-WAY HORN
EZ-HR5
INTRODUCTION
The EZ-HR5 ezIP PoE One-Way Horn is a self-
contained paging system which enables voice
paging over an IP network. The EZ-HR5 consists
of a high efficiency horn and a Network Interface
allowing stand-alone capability when used with a
SIP telephone system or can be accessed from a
Valcom ezIP Page Controller, ezIP Interactive
Console, or by ezIP Page Group. The EZ-HR5 is
available in three colors, Beige, Gray and Marine
White. The Marine version features additional
weather protection.
SPECIFICATIONS
Access Methods
• SIP – enabled telephone system
• Valcom ezIP Page Controller
• Valcom ezIP Interactive Console
• Valcom ezIP Multicast Page Group
Features
• RJ-45 network connection
• Network activity LEDs
• Power over Ethernet (PoE) 802.3af compatible
• O-ring seal on bell housing (Marine model
only)
• Stainless steel hardware (Marine model only)
• Upgradable to full Valcom IP capability
Ordering Part Names
• EZ-HR5-GY for Gray Horn
• EZ-HR5-BGE for Beige Horn
• EZ-HR5-W for Marine White Horn
Dimensions/Weight
Horn
• 7.38” H x 10.0” W x 10.4” D
(18.75cm x 25.4cm x 26.42cm)
• Weight: 5.60 lbs. (2.54 kg)
Network Interface
• 1.62” H x 5.63” W x 3.45” D
(4.11 cm) x (14.30 cm) x (8.73 cm)
with brackets – 8.22” W (20.87 cm)
• Weight: 2.10 lbs. (0.95 kg)
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch: Class 3
Environment
Network Interface:
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
PSE (Power Sourcing Equipment) to be compliant
to IEEE 802.3af
Indoor installation only
Horn:
Temperature: -20 to +55° C
Humidity: 0 to 95% non-condensing
Suitable for indoor or outdoor installation
INSTALLATION
Precautionary Designations
2 9471005
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses and can radiate radio
frequency energy and if not installed and used
in accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment
in a residential area may cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
Mounting (Network Interface)
The Network Interface is designed for wall or shelf
mounting and must be within 100 meters of the
network switch.
Mounting (Horn)
The EZ-HR5 Horn is designed for most FD
electrical box or wall mounting and must be within
350 feet of the EZ-HR5 Network Interface. See
NEMA OS 3-2002 sec.1.2.3.5 for FD box
specifications.
These horns should be mounted 15 to 20 feet
above the floor to allow for best sound distribution.
The units can be mounted to a wall, a beam or an
electrical box.
• A “C” clamp is provided with the horns to allow
mounting to a beam.
NOTE: The audio signal cable that connects
the horn to the Network Interface is routed
through the mounting base and terminated
with an RJ45 connector during manufacturing.
If mounting to a beam using the included “C”
clamp, the RJ45 connector will need to be
removed to pull the signal cable out of the
mounting base. Reinstall an RJ45 connector
on the signal cable after mounting, using the
T568B pinout scheme. See Figure 1.
Alternatively, an electrical box may be used
between the mounting base and C clamp to
allow room for the cable to exit the mounting
base (not illustrated).
• The base has holes punched for a
double-gang square box, but by punching out
additional knockout holes, the base can be
mounted to a single-gang or octagon box. See
Figure 2.
• Mount the base to wall studs using the two
holes provided. Knockout holes are provided
for punch out should additional holes be
desired. See Figure 3.
The horn may be rotated or moved up and down to
obtain the desired position by loosening the
position adjustment knob at the bottom of the unit
approximately one turn. Make required
adjustments and re-tighten knob.
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
Respectez tous les avertissements.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chiffon sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une
fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
N'utilisez que des fixations / accessoires spécifiés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specified
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation ou la fiche est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne
fonctionne pas normalement ou s'il est tombé.
