Pagina 1/6
Issue 3
1 947199

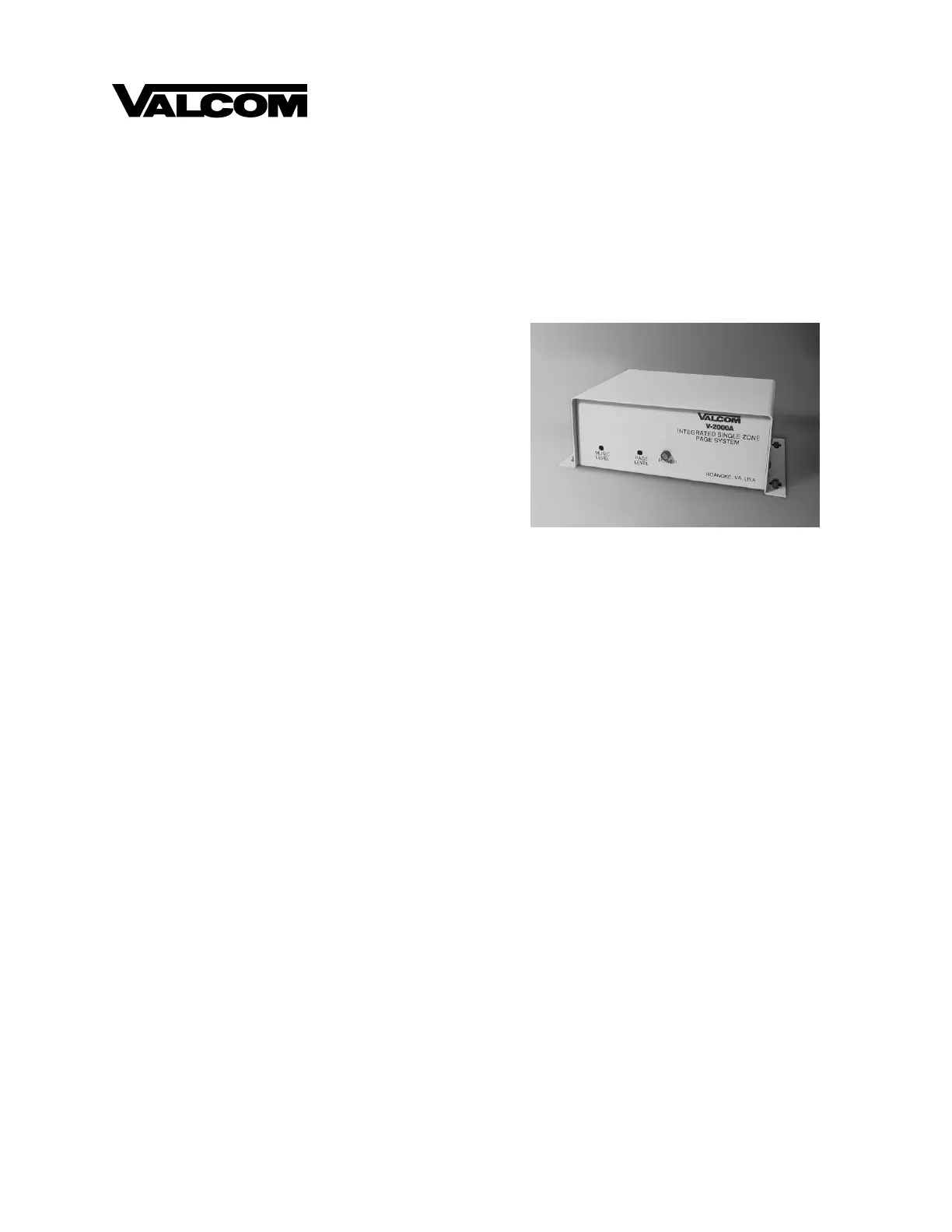

V-2000A
INTEGRATED SINGLE ZONE PAGE CONTROL UNIT
INTRODUCTION
The V-2000A is an Integrated Single Zone Page
Control Unit for use with any electronic key or
PABX. The control unit provides external power (12
Valcom power units) for powering Valcom One-way
Amplified Speakers.
These instructions contain the specifications and
information necessary to install, operate and maintain
the Integrated Single Zone Paging Control Unit.
"WARNING: To reduce the risk of fire or
electric shock, do not expose this appliance
to rain or moisture."
"WARNING: Shock Hazard - Do Not Open."
"AVIS: Risque de Choc Electrique ne pas
Ouvrir."
"PELIGRO: Corriente Elecrica - No Abra."
SPECIFICATIONS
Purpose
Provides telephone system access to a single
zone of one-way paging
Applications
Electronic Key Systems
PABXs
1A2 Key Systems (400 type line card required)
Stand Alone Systems
Refer to Figure 1 for a block diagram of a typical
installation.
Features
Electronic key system line key access
PABX loop start trunk port access
Page port access
Switchable battery feed for loop start operation
RJ11 for Tip and Ring connections
Power on LED
Drives up to 150 Valcom one-way amplified
speaker assemblies (Audio)
Background music input
Voice operated switch to mute music during page
Screw terminals provided for all connections
UL Listed
Supplies 12 Valcom power units for powering
Valcom one-way amplified speakers
May be used with 25 or 70 Volt amplifiers
AC powered
AC input fused at 0.5 Amp
Capacity
The V-2000A is a one-zone single talkpath unit.
Each V-2000A will drive up to 150 Valcom
one-way amplified speaker assemblies (Audio)
and provides 12 Valcom power units for
powering the speaker amplifier assemblies. The
V-2000A can also be used to access 25 or 75
Volt conventional amplifiers.
2
Dimensions/Weight
2.50" H x 7.70 " W x 5.30" D
(6.35cm H x 19.56cm W x 13.46cm D)
2.6 lbs. (1.2 kg)
Nominal Power Requirements
Voltage: 115VAC
Current: 0.35 Amp
Environment
Temperature: 0 to +40° C (+32 to +104° F)
Humidity: 0 to 85% non-precipitating
Nominal Specifications
Input Impedance: 600 Ohms
Input Level: -10dBm nominal
Music Source Input Impedance: 8 to 600 Ohms
Voice Switch Sensitivity: -21dBm
Music Input Level: -10dBm nominal
Output Impedance: 8 Ohms
Output Level: -10dBm nominal
DC Output: -24VDC at 600mA
SYSTEM DESIGN
General
The Valcom V-2000A Integrated Single Zone Page
Control Unit provides access to paging from a
standard PABX loop start trunk port, an Electronic
Key System C. O. line button or a 1A2 Key System
C. O. line button (A 400 type line card is required).
In most cases, access is also possible from a PABX or
Electronic Key System page port.
NOTE: Do not connect to Central Office Line or
PBX Station Port.
Electronic Key or PABX Access
When using the V-2000A with an electronic key
system or PABX, the following equipment will be
needed:
1) 1 - V-2000A Integrated Single Zone Page Control
Unit
2) 1 - C. O. Line Circuit (Electronic Key System) or
1 Loop Start Trunk Circuit (PABX)
3) Valcom One-way Amplified Speaker Assemblies
(Quantity and style determined by specific
installation)
Operation: Press the appropriate line key (Electronic
key system) or dial the appropriate trunk access code
(PABX). You will immediately be connected to the
paging speakers. Make announcement. The
V-2000A will automatically disconnect when you
hang up.
Page Port Access
When accessing the V-2000A from a page port the
following equipment will be required:
One V-2000A Integrated Single Zone Page
Control Unit
Telephone System Page Card (If required for
external page outputs)
Valcom One-way Amplified Speaker Assemblies
(Quantity and style determined by specific
installation)
Operation: Follow the telephone manufacturers’
directions on how to access external paging. You
will immediately be connected to the paging speakers.
Make announcement. The V-2000A will
automatically disconnect when you hang up.
Background Music
Background music may be connected to the V-2000A
when using any of the above configurations. The
background music will cut off automatically when the
party making the page is speaking.
E-KEY
OR PABX
V-2000A
INTEGRATED
SINGLE ZONE
PAGE SYSTEM
VALCOM ONE-WAY
AMPLIFIED SPEAKERS
NOTE; Additional power supplies required for large numbers of speakers.

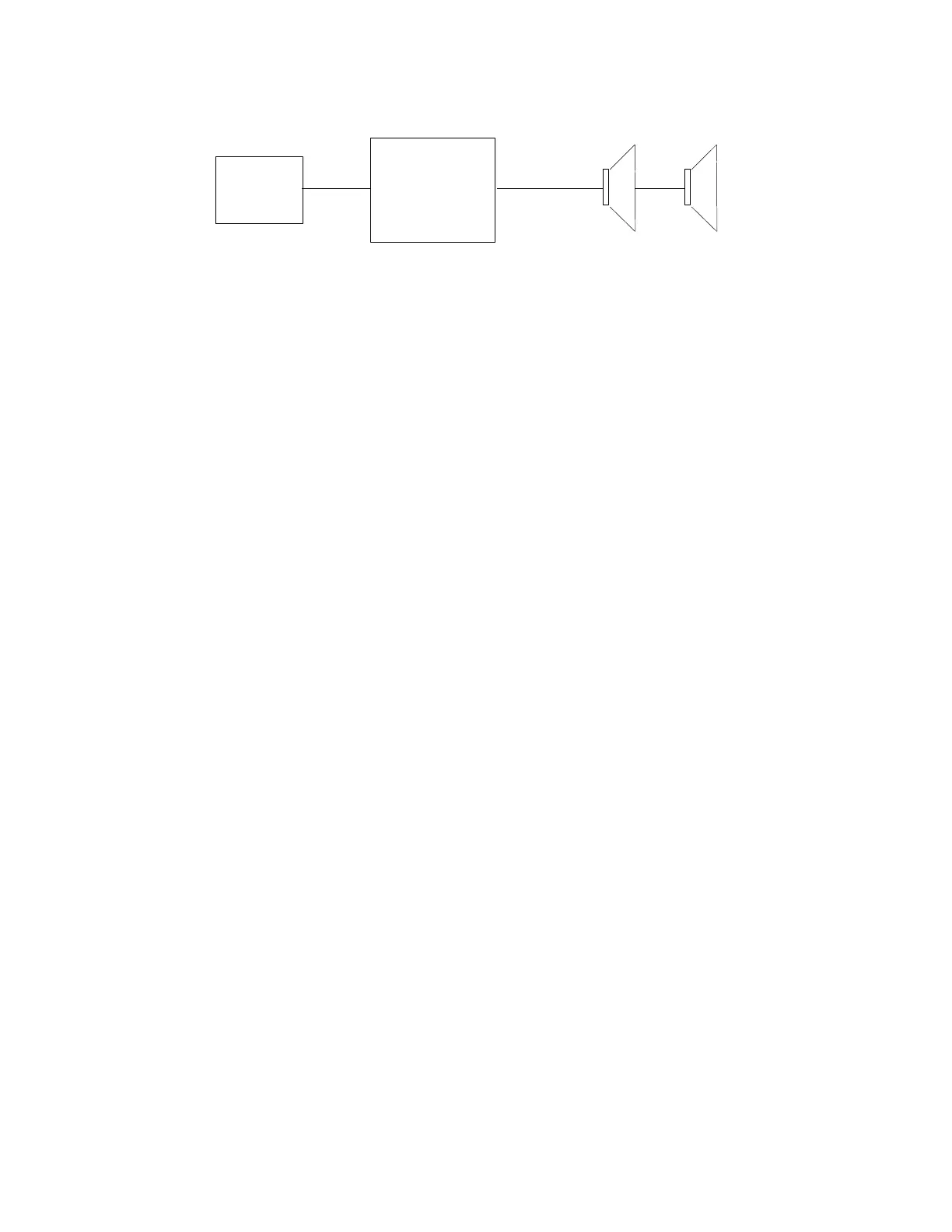

FIGURE 1 - TYPICAL INSTALLATION
