UPS 1500VA RACK MOUNT 2U

2-HE-USV MIT 1.500 VA ZUR RACKMONTAGE

ONDULEUR À MONTAGE SUR RACK 2U, 1500VA

UPS 1500VA - PARA INSTALACIÓN EN BASTIDOR - 2 UNIDADES

UPS DA 1500 VA MONTAGGIO RACK 2U

UPS 1500VA RACK MOUNT 2U

UPS1RM2U1500

2U UPS 1500VA RACK MOUNT • 2-HE-USV MIT 1.500 VA ZUR RACKMONTAGE • ONDULEUR À MONTAGE SUR RACK 2U, 1500VA

2 UNIDADES UPS 1500VA PARA INSTALACIÓN EN BASTIDOR • UPS 2U DA 1500 VA PER MONTAGGIO IN RACK • 2U UPS 1500VA RACK MOUNT

INSTALLATION

Note: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.

Please keep the original package in a safe place for future use.

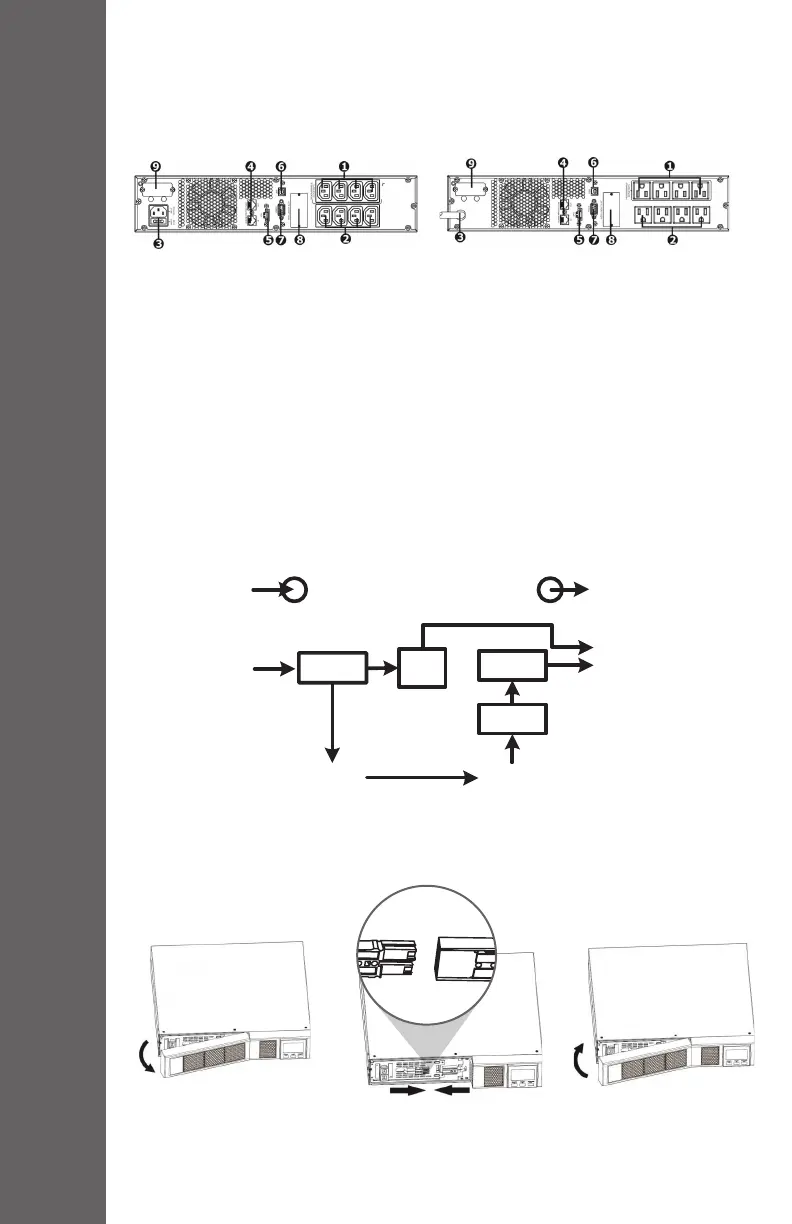

1.1 Rear Panel View

IEC Type NEMA Type

The UPS is composed of mains input, EMI/RFI Filters, Inverter, Battery charger, DC-to-DC converter, battery,

AVR TX and UPS output

1.2 Operation

EMI/RFI

Filters

Battery

Charger

Battery

DC-to-DC

Converter

Inverter

AVR

Output

For safety consideration, the UPS is shipped out from factory without connecting battery wires. Before

installation of the UPS, please follow the steps below to re-connect the battery wires.

1.3 Installation

Remove Front Panel Connect the AC Input and re-connect

battery wires

Put the front panel back

on the unit

1. Programmable outlets: connect to non-critiacal loads.

2. Output receptacles: connect to mission-critical loads

3. AC input

4. Network/Fax/Modem surge protection

5. Emergency power o function connector (EPO)

6. USB communication port

7. RS-232 communication port

8. SNMP intelligent slot

9. External battery connector

Product specificaties

Merk:	V7
Categorie:	UPS
Model:	UPS1RM2U1500
Breedte:	510 mm
Diepte:	438 mm
Hoogte:	88 mm
Gewicht verpakking:	23500 g
Breedte verpakking:	700 mm
Diepte verpakking:	565 mm
Hoogte verpakking:	240 mm
Certificering:	CE, RoHS, REACH
Garantieperiode:	3 jaar
