LP5912-EP Enhanced Product, 500-mA, Low-Noise, Low-I

Q

LDO

1 Features

•Input voltage range: 1.6 V to 6.5 V

•Output voltage range: 0.8 V to 5.5 V

•Output current: Up to 500 mA

•Low output-voltage noise: 12 μV

RMS

(typ)

•PSRR at 1 kHz: 75 dB (typ)

•Output voltage tolerance (V

OUT

≥ 3.3 V): ±2%

•Low I

Q

(enabled, no load): 30 μA (typ)

•Low dropout (V

OUT

≥ 3.3 V):

95 mV (typ) at 500-mA load

•Stable with 1-µF ceramic input and output

capacitors

•Thermal-overload and short-circuit protection

•Reverse current protection

•No noise bypass capacitor required

•Output automatic discharge for fast turnoff

•Power-good output with 140-µs (typ) delay

•Internal soft-start to limit inrush current

•Operating junction temperature: –55°C to +125°C

•Supports defense, aerospace, and medical

applications:

–Controlled baseline

–One assembly and test site

–One fabrication site

–Extended product life cycle

–Extended product-change notification

–Product traceability

2 Applications

•Surveillance systems

•Inertial navigation

•Land mobile radios

•Global positioning system receivers

•Data concentrator units

3 Description

The LP5912-EP is a low-noise, low-dropout regulator

(LDO) that can supply up to 500 mA of output

current. Designed to meet the requirements of RF and

analog circuits, the LP5912-EP provides low noise,

high PSRR, low quiescent current, and low line and

load transient response. The LP5912-EP offers class-

leading noise performance without a noise bypass

capacitor and with the ability for remote output

capacitance placement.

The device is designed to work with a 1-µF input and

a 1-µF output ceramic capacitor (a separate noise

bypass capacitor is not required).

This device is available with fixed output voltages

from 0.8 V to 5.5 V in 25-mV steps. Contact the Texas

Instruments Sales office for specific voltage option

requirements.

Package Information

(1)

PART NUMBERPACKAGEBODY SIZE (NOM)

LP5912-EPWSON (6)2.00 mm × 2.00 mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

INOUT

GND

ENPG

LP5912-EP

V

OUT

V

IN

NC

C

IN

C

OUT

R

PG

V

EN

V

PG

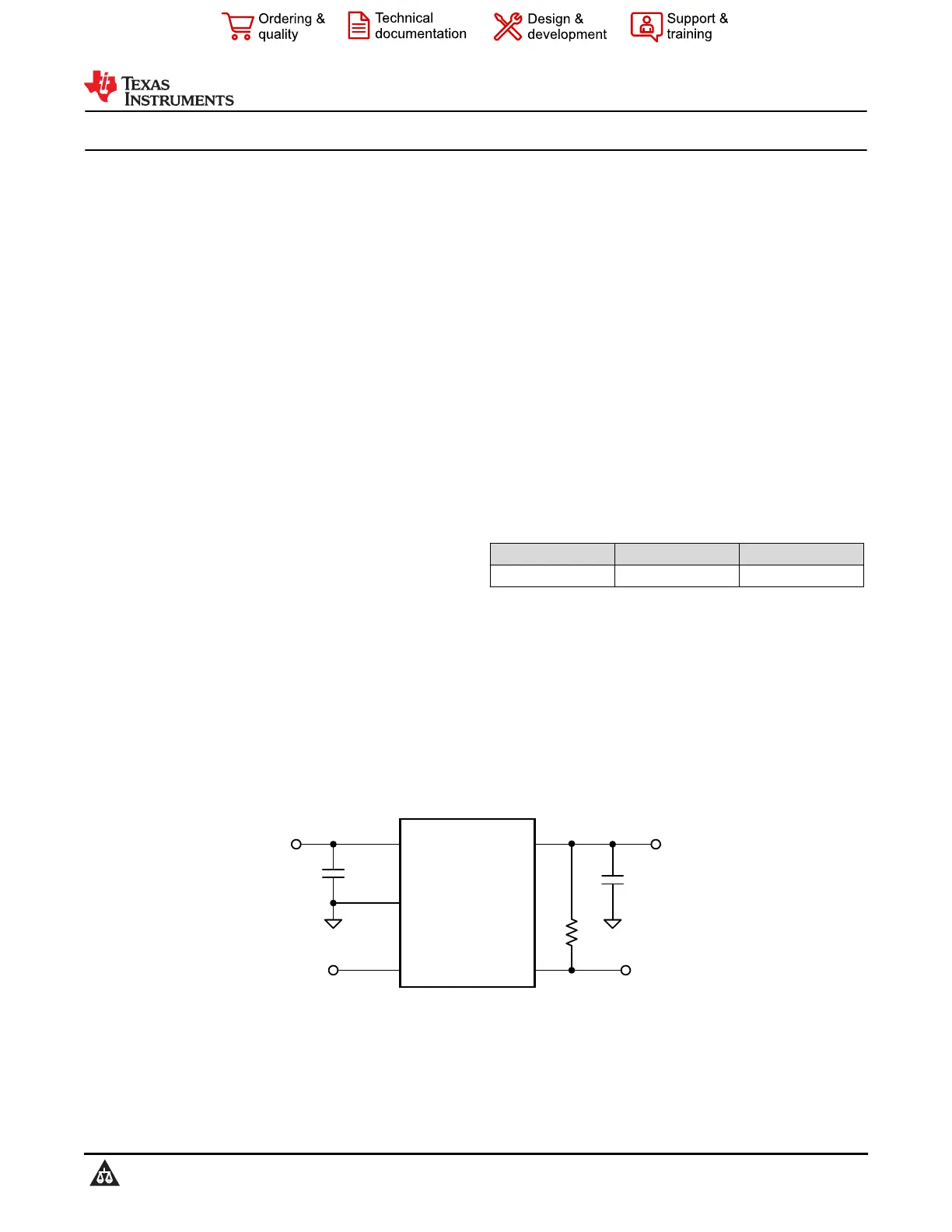

Simplified Schematic

LP5912-EP

SNVSC57 – SEPTEMBER 2022

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
