-The Mixer is supplied pre-assembled, the Fixing Nut (G), Weights (L) and Clamp (F) need to be temporarily

removed prior to installation

-Maximum bench thickness is 50mm (i).

-Outlet Clearance Hole: 35 - 40mm (ii).

-Mounting Surface must be flat and level.

-Ensure adequate cupboard space has been provided to allow the Pull-out hose to move freely.

-Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2025

-Recommended working water pressure 300 - 500 kPa Maximum water temperature is 65°C

-After installation, ensure that tapware functions correctly without leaks.

-Please ensure a copy of the Installation Instructions are left with the end user for future reference.

VGSMPOS.01

Virgo

Sink Mixer Pull Out Spray

Product code

Install Preparation:

Plumbers note:

-(A) Outlet Assembly (Preassembled)

-(B) O-Ring

-(C) Thread Bar

-(D) Flexible hose extensions with M10 connections (D1= COLD and D2 = HOT)

-(E) Flexible hoses with 1/2” BSP Fittings with Conical Seals (E1= COLD and E2 = HOT)

-(F) Clamp

-(G) Fixing Nut

-(H) Dual Check Valve (DCV)

-(I) Swivel Hose Gasket

-(J) Swivel Nut

-(K) Pull-out Hose

-(L) Weights

-(M) Aerator

-(N) Aerator Key

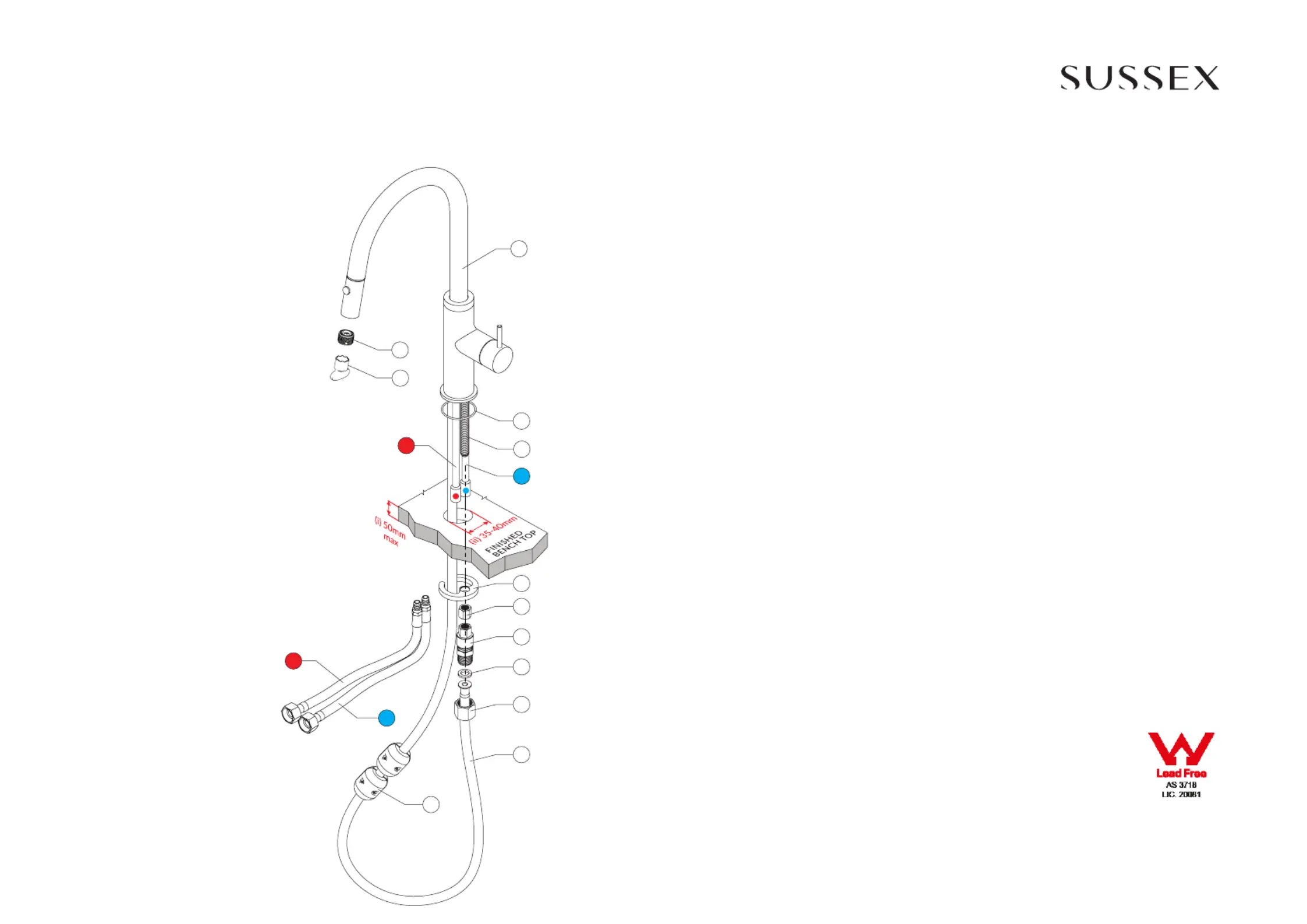

Product parts:

A

B

E1

E2

C

F

D1

G

H

I

J

K

L

D2

M

N

sussextaps.com.au

While we aim to ensure the specifications shown are correct at time of printing, Sussex Taps reserves the right to make modifications

without prior notice. Always use the physical product for accurate measurements. Dimensions are subject to change without notice.

All measurements are shown in millimetres. This product complies with lead free requirements.

Copyright © Sussex Taps
