-The Mixer is supplied pre-assembled, the Clamping Ring (E), Clamps (F & I), Fixing Nut (J) and Weights (H) will

need to be temporarily removed prior to installation.

-Maximum bench thickness is 50mm (i).

-Outlet Clearance Hole: 35 - 40mm (ii).

-Hob Mixer Clearance Hole: 48 - 50mm (iii).

-Minimum Distance between Outlet and Hob Mixer is 100mm (iv) centre to centre.

-Mounting Surface must be flat and level.

-Ensure adequate cupboard space has been provided to allow the Pull-out hose to move freely.

-Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2025

-Recommended working water pressure 300 - 500 kPa. Maximum water temperature is 65°C

-After installation, ensure that tapware functions correctly without leaks.

-Please ensure a copy of the Installation Instructions are left with the end user for future reference.

VGSHMSPOS.01

Virgo

Sink Hob Mixer Set Pull Out Spray

Product code

Install Preparation:

Plumbers note:

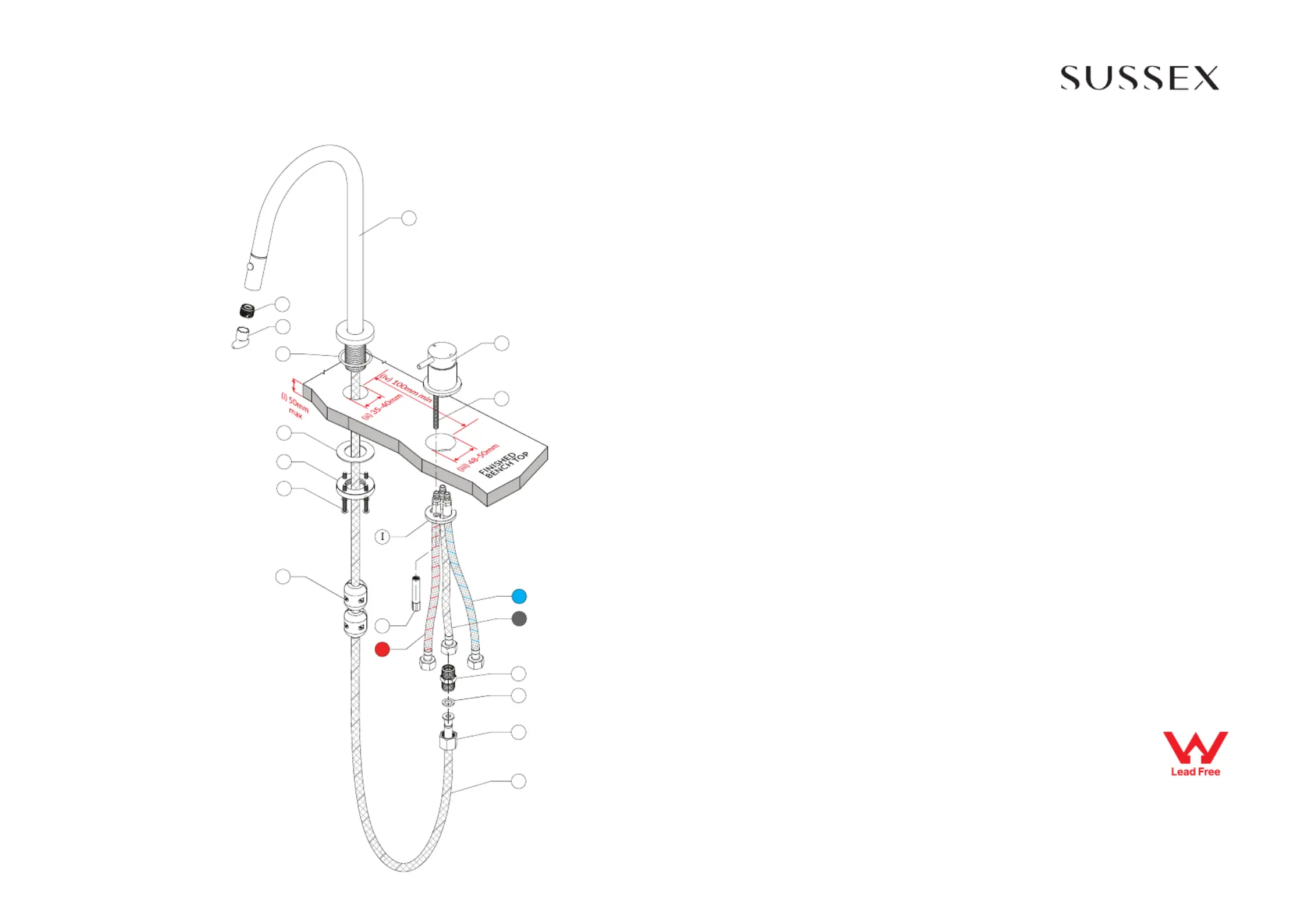

-(A) Outlet Assembly (Preassembled)

-(B) Hob Mixer Assembly (Pre-assembled)

-(C) O-Ring

-(D) Thread Bar

-(E) Outlet Clamping Ring

-(F) Clamp

-(G) Jacking Screws

-(H) Weights

-(I) Hob Mixer Clamp

-(J) Fixing Nut

-(K) Flexible hoses with 1/2” BSP Fittings with Conical Seals (K1= HOT, K2 = COLD and K3 = MIXED)

-(L) Dual Check Valve (DCV)

-(M) Swivel Hose Gasket

-(N) Swivel Nut

-(O) Pull-out Hose

-(P) Aerator

-(Q) Aerator Key

Product parts:

AS 3718

LIC. 20081

A

B

C

D

L

N

M

H

F

E

J

K2

K1

O

G

K3

P

Q

sussextaps.com.au

While we aim to ensure the specifications shown are correct at time of printing, Sussex Taps reserves the right to make modifications

without prior notice. Always use the physical product for accurate measurements. Dimensions are subject to change without notice.

All measurements are shown in millimetres. This product complies with lead free requirements.

Copyright © Sussex Taps
