Pagina 1/8

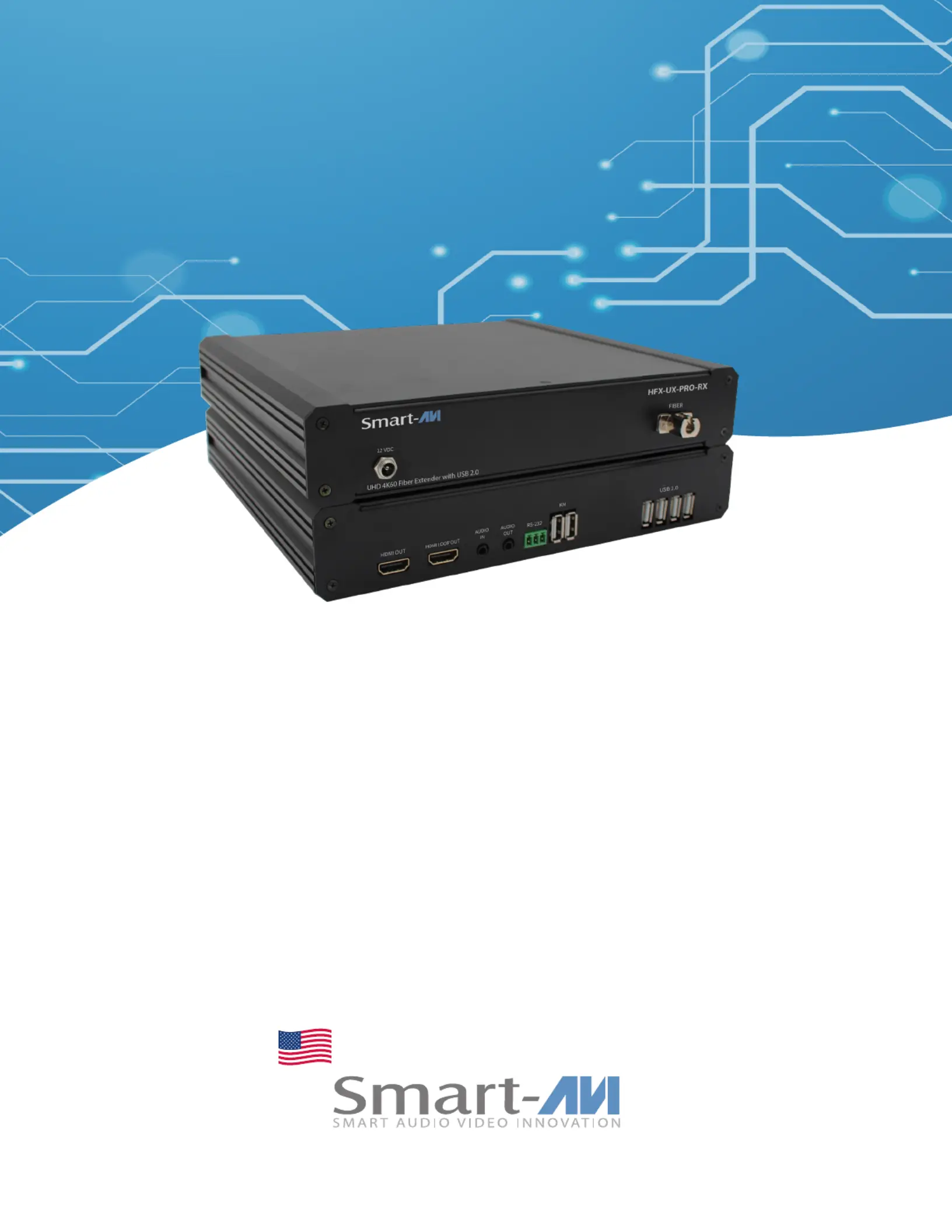

HFX-UX-PRO
USER MANUAL
Designed and Manufactured in the USA
(888) 994-7427
www.smartavi.com
UHD 4K60 HDMI Fiber Extender
with KM, USB 2.0, serial, and
BIDIRECTIONAL Audio
4-Port Single-Head HDMI Seamless KVM Switch w/ Multiviewer 2
OVERVIEW
TECHNICAL SPECIFICATIONS____________________________________________________________________________
WHAT’S IN THE BOX?_____________________________________________________________________________________
FRONT AND BACK________________________________________________________________________________________
INSTALLATION_____________________________________________________________________________________________
TROUBLESHOOTING_____________________________________________________________________________________
TECHNICAL SUPPORT____________________________________________________________________________________
LIMITED WARRANTY STATEMENT______________________________________________________________________
3
4
4
5
6
6
7
4-Port Single-Head HDMI Seamless KVM Switch w/ Multiviewer 3
Technical Specifications
VIDEO
Format HDMI2.0
Video Resolution
Resolution: UHD 3840 x 2160 @ 60Hz
Color Depth: 24-bit color depth
Video Bandwidth Single-link 340 MHz (10.2 Gbps)
Input Interface (TX)
(1) HDMI 19-pins (female)
(1) HDMI 19-pins (female) (LOOP)
Output Interface (RX)
(1) HDMI 19-pins (female)
(1) HDMI 19-pins (female) (LOOP)
Max Output Distance Up to 10 ft
Equalization Automatic
Input TMDS Signal 1.2 Volts [peak-to-peak]
Input DDC Signal 5 Volts [peak-to-peak, TTL]
Data Rate 1.65 Gbps per color
USB
Input Interface (TX) (1) USB Type B
Output Interface (RX)
(2) USB 1.1 Type A for KM Devices;
(4) USB 2.0 Type A Transparent
Keyboard and mouse Keyboard and mouse emulation
AUDIO
Format Integrated HDMI Audio / Bidirectional Audio
Input Interface Integrated HDMI / 3.5mm Bidirectional Audio
Output Interface Integrated HDMI / 3.5mm Bidirectional Audio
SYSTEM
Fiber Interface & Type Single-Mode LC-LC Fiber
Cable Requirements Single LC Fiber
Maximum Length
Single mode: 2 km (1.2 miles)
Multi mode: 300 m (1000 feet)
OTHER
Power 100-240 VAC/ 12VDC @ 3A/15W
Dimensions 9.5” W x 1.7” H x 8.6” D
Weight 3.6 lb (1.8 lbs per unit)
Approvals UL, CE, ROHS Compliant
Environmental Operating
Temperature
+32 to +104°F (0 to +40°C)
Environmental Operating
Humidity
20% to 80% (non condensing)
Storage Temperature -4 to 140°F (-20 to +60°C)
Storage Humidity Up to 95% (No Condensation)
Compliance EMC FCC (Class A), CE (Class A), ICES-003
Environmental Compliance RoHS2 (CE)
